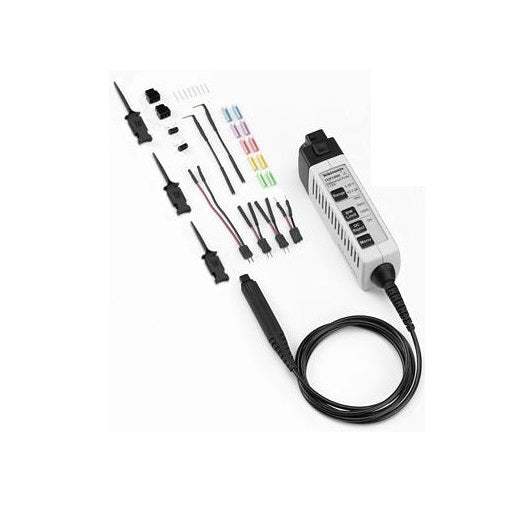

TDP0500 Tektronix Differential Probe Used

TDP0500 Tektronix Differential Probe Used

$3,300
$3,300 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features

  • 1 GHz and 500 MHz Probe Bandwidth
  • <1 pF Differential Input Capacitance
  • 1 MΩ Differential Input Resistance
  • ±42 V (DC + pk AC) Differential Input Voltage
  • > 18 dB CMRR (at 250 MHz 50X Attenuation)
  • Selectable Bandwidth Limiting Filters
  • DC Reject
Share on
View full details
More Details
Specifications
Datasheets

Versatile DUT Connectivity

  • Small Compact Probe Head for Probing Small Geometry Circuit Elements
  • Straight Pin, Square Pin, Solder Down, Variable Pitch Standard Accessories
  • Robust Design for Reliability

Ease-of-Use

  • Provides Automatic Units Scaling and Readout on the Oscilloscope Display
  • Connect Directly to the DPO7000, DPO4000, and MSO4000 Series Oscilloscopes Using TekVPI™ Probe Interface (No additional Power Adapters Required)
  • Easy Access to Scope-Displayed Probe Menu for Probe Setup Control and Operating Status Information
  • AutoZero – Zeros Out Output Offset
  • P6251, P6250
  • Connect directly to TDS5000 and other TekProbe™ interface oscilloscopes, or to TekConnect® oscilloscopes using TCA-BNC adapter

The Tektronix TDP0500 High Voltage Differential Probes provide excellent high-speed electrical and mechanical performance required for today’s Switch Mode Power Supply (SMPS), CAN/LIN Bus, and high-speed digital system designs.Specifically designed for use with and direct connection to Tektronix oscilloscopes with either the TekVPI™ probe interface, or TekProbe BNC Interface. The TDP0500 High Voltage Differential Probes achieve high-speed signal acquisition and measurement fidelity by solving three traditional measurement challenges:

Model No

TDP0500

Condition

Used

Manufacturer

Tektronix

Frequency

500 MHz

Tektronix P6250 P6251 TDP0500 TDP1000
