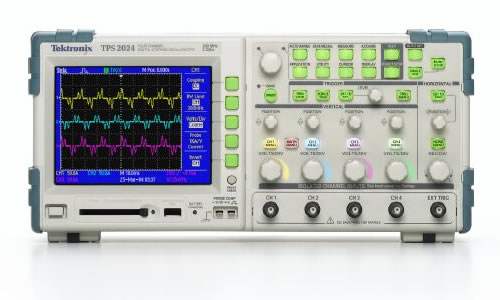

The Tektronix TPS2000 Series is a family of digital storage oscilloscopes consisting of the TPS2012, TPS2014, and TPS2024. An oscilloscope captures voltage waveforms over time so an engineer can see a signal's amplitude, frequency, timing, and shape. What sets the TPS2000 Series apart is Tektronix IsolatedChannel technology: every input channel, plus the external trigger input, is fully isolated and floating. Tektronix describes it as the world's first 4-isolated-channel, full-featured, battery-powered oscilloscope, designed to make floating and differential measurements quickly, accurately, and affordably.
The series is intended for industrial power design, troubleshooting, installation, and maintenance; advanced electronics design, troubleshooting, installation, and maintenance; automotive design and test; and education. Its isolated channels let you make floating and differential measurements and speed verification of power supply performance, complex control circuits, and the effects of neutral current. With the TPS2PBND power bundle and TPS2PWR1 software, a single instrument performs three-phase power measurements of variable frequency drives, switching loss analysis, harmonic distortion measurements to the 50th harmonic, and dv/dt and di/dt cursor measurements.
ValueTronics stocks and holds its own inventory in a 20,000 square foot secure warehouse at 1675 Cambridge Drive in Elgin, Illinois. Every pre-owned unit is inspected and functionally verified in-house against the original manufacturer's specifications before it ships, while new units ship factory-sealed exactly as received. That combination of held inventory and in-house verification lets ValueTronics match the right instrument and condition to your application.
The TPS2000 Series comprises three digital storage oscilloscopes — the TPS2012, TPS2014, and TPS2024 — that share IsolatedChannel technology, hot-swappable battery operation, standard FFT, and 11 automatic measurements. All three make fully isolated, floating, and differential measurements with the same float-voltage ratings and the same documentation and connectivity feature set.
Within that common architecture, the models differ in channel count, bandwidth, and sample rate, so each is offered as its own configuration. The comparison table below lays out those differences side by side.
Each pre-owned model below links to its own dedicated product page with condition-matched pricing. Select the model that fits your channel-count and bandwidth requirement, then choose the pre-owned listing that matches your budget and availability needs.
The TPS2012 provides 2 isolated channels with 100 MHz bandwidth and a 1.0 GS/s per-channel sample rate. The TPS2014 keeps the 100 MHz bandwidth and 1.0 GS/s sample rate but adds two more channels for 4 isolated channels. The TPS2024 offers 4 isolated channels at 200 MHz bandwidth with a 2.0 GS/s per-channel sample rate.
Time base range tracks bandwidth as well: the TPS2012 and TPS2014 span 5 ns to 50 s/div, while the TPS2024 extends to 2.5 ns to 50 s/div. All three share the 2.5 K-point record length, 8-bit vertical resolution, and 2 mV to 5 V/div sensitivity. The comparison table summarizes these per-model differences.
| Model | Bandwidth | Channels | Sample Rate |
|---|---|---|---|
| TPS2024 | 200 MHz | 4 | 2.0 GS/s |
| TPS2012 | 100 MHz | 2 | 1.0 GS/s |
| TPS2014 | 100 MHz | 4 | 1.0 GS/s |
Additional differences in specifications beyond the few shown above are not listed here — see each model's full specifications below.
| Specification | Value |
|---|---|
| TPS2000 Series Electrical Characteristics | |
| Isolated Channels | 4 |
| Bandwidth (MHz) | 200 |
| Sample Rate (GS/s) Per Channel | 2.0 |
| Record Length | 2.5 K points |
| Display (1/4 VGA LCD) | Color |
| Battery Operation | Capacity for two hot-swappable battery packs. One standard battery pack offers 4 hours of battery operation. Optional second battery pack extends battery operation to 8 hours. Continuous battery operation is possible by hot-swapping charged batteries |
| Automatic Measurements | 11 |
| Isolated External Trigger Input (Impedance Isolated) | Yes |
| Vertical Resolution | 8-bits (normal or with averaging) |
| Vertical Sensitivity | 2 mV to 5 V/div on all models with calibrated fine adjustment |
| DC Vertical Accuracy | ±3% |
| Vertical Zoom | Vertically expand or compress a live or stopped waveform |
| Max Input Voltage (1 MΩ) | 300 VRMS CAT II at BNC signal to BNC shell, 1000 VRMS CAT II at probe tip to earth ground with optional P5120 passive, high-voltage probe |
| Float Voltage | 600 VRMS CAT II or 300 VRMS CAT III BNC shell to earth ground, 1200 VRMS CAT II between any two channel commons with each of the channel commons not being more than ±600 VRMS from earth ground |
| Position Range | 2 mV to 200 mV/div ±2 V; >200 mV to 5 V/div ±50 V |
| Bandwidth Limit | 20 MHz |
| Linear Dynamic Range | ±5 div |
| Time Base Range | 2.5 ns to 50 s/div |
| Time Base Accuracy | 50 ppm |
| Input Impedance | 1 MΩ±2 % in parallel with 20 pF |
| Input Coupling | AC, DC, GND |
| Horizontal Zoom | Horizontally expand or compress a live or stopped waveform |
| FFT | Standard |
| Parallel Ports (RS-232, Centronics) | Standard |
| PC Connectivity | Standard |
| Integrated CompactFlash Mass Storage | Standard |
| Power Measurements | Optional package that offers instantaneous power waveform analysis, waveform analysis, harmonics analysis, switching loss, phase angles, dv/dt and di/dt cursors |
| Acquisition Modes | |
| Peak Detect | High frequency and random glitch capture. Captures glitches as narrow as 12 ns typical using acquisition hardware at all time/div settings from 5 µs/div to 50 s/div. |
| Sample | Sample data only. |
| Average | Waveform averaged, selectable: 4, 16, 64, 128. |
| Single Sequence | Use the Single Sequence button to capture a single triggered acquisition sequence at a time. |
| Scan/Roll Mode | At acquisition time base settings of ≥100 ms/div. |
| Trigger System (Main Only) | |
| Trigger Modes | Auto, Normal, Single Sequence. |
| Edge (rising or falling) | Conventional level-driven trigger. Positive or negative slope on any channel. Coupling selections: AC, DC, Noise Reject, HF Reject, LF Reject. |
| Video | Trigger on all lines or individual line, odd/even or all fields from composite video, or broadcast standards (NTSC, PAL, SECAM). |
| Pulse Width (or Glitch) | Trigger on a pulse width less than, greater than, equal to, or not equal to a selectable time limit ranging from 33 ns to 10 sec. |
| Trigger Source | CH1, CH2, CH3, CH4, Ext, Ext/5, Ext/10. |
| Trigger View | Displays trigger signal while trigger view button is depressed. |
| Trigger Signal Frequency Readout | Provides a frequency readout of the trigger source with 6-digit resolution. |
| Cursors | |
| Types | Voltage, Time. |
| Measurements | ∆T, 1/∆T (frequency), ∆V, dv/dt, di/dt (dv/dt and di/dt require TPS2PWR1 power application package). |
| Measurement System | |
| Automatic Waveform Measurements | Period, Frequency, +Width, –Width, Rise time, Fall time, Max, Min, Peak-to-Peak, Mean, Cycle RMS. |
| Waveform Processing | |
| Operators | Add, Subtract, Multiply, FFT. |
| FFT | Windows: Hanning, Flat Top, Rectangular; 2048 sample points. |
| Sources | CH1 – CH2, CH2 – CH1, CH3 – CH4, CH4 – CH3, CH1 + CH2, CH3 + CH4, CH1 x CH2, CH3 x CH4. |
| Autoset Menu | Single-button, automatic setup of all channels for vertical, horizontal and trigger systems, with undo autoset. |
| Autorange | Allows the user to adjust waveforms on the oscilloscope screen and change test points without resetting the oscilloscope. |
| Display Characteristics | |
| Display | 1/4 VGA, passive color LCD with color on black background with adjustable multi-level contrast and brightness controls. |
| Interpolation | Sin(x)/x. |
| Display Types | Dots, vectors. |
| Persistence | Off, 1 sec, 2 sec, 5 sec, infinite. |
| Format | YT and XY. |
| I/O Interface | |
| Printer Port (standard) | Centronics-type Parallel. |
| Graphics File Formats | TIFF, PCX (PC Paint Brush), BMP (Microsoft Windows), EPS (Encapsulated Postscript) and RLE. |
| Printer Formats | Bubble Jet, DPU-411, DPU-412, DPU-3445, Thinkjet, Deskjet, Laser Jet, Epson Dot (9- or 24-pin), Epson C60, Epson C80. |
| Layout | Landscape and Portrait. |
| RS-232 Port (standard) | 9-pin DTE. |
| RS-232 Programmability | Full talk/listen modes. Control of all modes, settings and measurements. Baud rate up to 19,200. |
| Nonvolatile Storage | |
| Nonvolatile Storage | Standard (with CompactFlash Mass Storage) |
| Reference Waveform Display | Two 2500 point reference waveforms |
Important: Do not float the P2220 probe common lead above 30 VRMS. Use the P5120 (floatable to 600 VRMS CAT II or 300 VRMS CAT III) or a similarly rated high-voltage or differential probe when floating the common lead above 30 VRMS.
Important: For floating/differential measurements above 30 VRMS, the optional P5120 passive high-voltage probe (or the TPS2PBND power bundle) is required and is not included with the standard instrument — it must be ordered separately (see Recommended Accessories).
Important: The CompactFlash mass-storage card is not included with the instrument (Type 1 CompactFlash up to and including 1 GB must be supplied separately).
Important: TPS2000 Series oscilloscopes are not intended for use in wet or damp conditions.
Important: Bandwidth is 20 MHz at 2 mV/div on all models; 200 MHz is typical at 5 mV/div on 200 MHz models only, including typical 200 MHz between 40 ºC and 50 ºC on 200 MHz models only.
Recommended pairing: add the TPS2PBND power bundle — four P5120 high-voltage probes and TPS2PWR1 power measurement and analysis software — to perform the series' power-specific measurements.
This pre-owned unit is inspected and functionally verified in-house before it ships and is backed by our pre-owned warranty. To confirm its exact condition, firmware revision, installed options, or included accessories for your application before ordering, contact our Test Architects.
ValueTronics supplies both new and used test and measurement equipment. New units ship factory-sealed, exactly as received from the manufacturer; every used unit is inspected and functionally verified in-house at our 20,000 sq ft secure facility in Elgin, Illinois before it ships. Our Test Architects can help you select the condition, calibration, and configuration that fit your application.
Please review the Manufacturer's Data Sheet to verify published specifications. Feedback on this webpage is always welcome — please reach out to your Test Architect at any time for questions or concerns. Thank you, we truly appreciate you being our customer.
