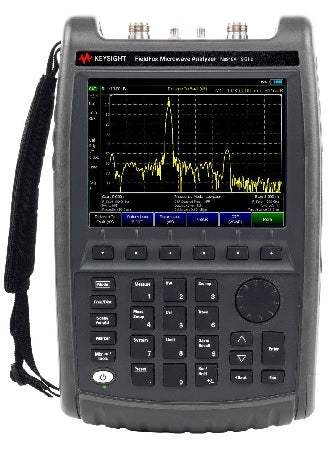

N9915B Agilent Analyzer Used

N9915B Agilent Analyzer Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 9 GHz FieldFox Microwave Analyzer
  • Base model includes cable and antenna analyzer
  • Expand capabilities with optional vector network analyzer, spectrum analyzer, real-time spectrum analyzer, and more
  • Capture intermittent signals with 100 MHz gap-free real-time bandwidth
  • Simultaneously measure all four S-parameters with 115 dB system dynamic range
  • Make accurate spectrum analyzer measurements (±0.3 dB) without warm-up
  • Validate network performance with over-the-air measurements for 5GTF and LTE
  • GPS/GNSS receiver for geolocation and time stamp precision
  • Lightest all-in-one analyzer at only 7.35 lb. (3.34 kg)
  • New high capacity battery providing over 5 hours of battery life
Share on
View full details
More Details
Specifications
Options
Datasheets

FieldFox, the industry's most versatile portable analyzer, has launched this new line of future-ready analyzers to address the ever-increasing demands of 5G, satellite communications, signal monitoring and electronic warfare applications. All existing FieldFox A Series measurement capabilities (except QuickCal) are supported on the new FieldFox B Series. 100 MHz (Option B10) and 40 MHz (Option B04) analysis bandwidth options will be available on the B models, with 10 MHz as the standard option.

Model No

N9915B

Condition

Used

Manufacturer

Agilent

10

Vector network analyzer time domain Requires 210 , recommend 211

30

Remote control capability Requires an iOS device or an Android device

208

USB power sensor measurements versus frequency Requires 302

209

Extended range transmission analysis (ERTA) Requires 233 and 210 1 , recommend 307

210

Vector network analyzer transmission/reflection

211

Vector network analyzer full 2-port S-parameters Requires 210

212

1-port mixed-mode S-parameters Requires 210 and 211

215

TDR cable measurements

233

Spectrum analyzer

235

Pre-amplifier Requires 233

236

Interference analyzer and spectrogram Requires 233

238

Spectrum analyzer time gating Requires 233

302

USB power sensor support

307

GPS receiver

308

Vector voltmeter Requires 210 and 211 for full VVM functionality

309

DC bias variable-voltage source Recommend N9910X-713 cable

310

Built-in power meter

312

Channel scanner Requires 233

330

Pulse measurements Requires 302 and USB peak power sensor

350

Real-time spectrum analyzer (RTSA) Requires 233 , recommend 235

351

I/Q analyzer Requires 233

352

Indoor and outdoor mapping Requires 233 , 307 , and at least one of 312 , 360 , 370 , 371 , 377 or 378.

353

IQ streaming Requires 233 and 351

355

Analog demodulation Requires 233

356

Noise figure measurements Requires 233 , 235 , 309 and accessory cable N9910X-713

358

EMF measurements Requires 233. Also requires triaxial isotropic antenna.

361

EMI measurements Requires 233

370

Over the air LTE FDD measurements Requires 233 and 307 , recommend 235

371

Over the air LTE TDD measurements Requires 233 and 307 , recommend 235

378

Over-the-air (OTA) 5G NR measurements Requires 233 , B10 , and 307 , recommend 235; N991x/3xB models require external mixer for FR2 frequencies above 26.5 GHz

B04

Bandwidth , 40 MHz Requires 233. Recommend 350 , 351 or PathWave VSA (formerly 89600 VSA) software

B10

Bandwidth , 100 MHz Requires 233. Recommend 350 , 351 , 378 or PathWave VSA (formerly 89600 VSA) software
