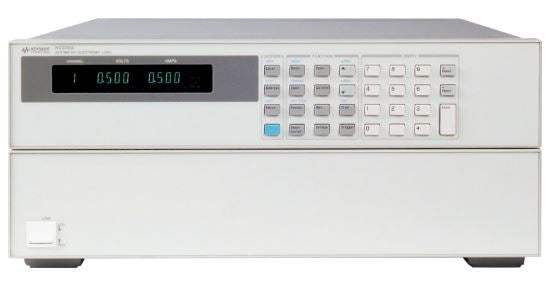

The Keysight N3300A is a full-rack width mainframe with 6-slots that accepts combinations of N330x user-installable load modules (150 W to 600 W) for easy system configuration and future reconfiguration. The N3300A holds up to six N3302A, N3303A, N3304A, N3307A load modules, or three N3305A, N3306A double-wide modules, allowing a total up to 1,800 watts of maximum power.
Testing multiple output dc power supplies and dc-dc converters can be very time consuming to test each output sequentially. If measurements are being made through a MUX using one DMM, this is what will happen. Use the built-in measurement capabilities of the N3300A electronic loads to measure all inputs simultaneously. Likewise, simultaneously test multiple single output power sources.
Control measurement speed vs. accuracy
Decrease the number of measurement samples to achieve greater measurement speed, or increase the number of samples to achieve higher measurement accuracy. You can optimize your measurements for each test.
Control rising and falling slew rates separately
Reduce rate of loading change when necessary for DUT stability or to simulate real life conditions, but otherwise change load values at maximum rate.
Test low voltage power supplies:
The N3300 Series electronic loads operate with full stability down to zero volts. Many other electronic loads available today have been found to become unstable in the operating region below one volt. When designing power supply test platforms, the trend towards lower voltage requirements should be taken into account. Refer to the specification and supplemental characteristic tables for details of lower voltage operating characteristics.
Test high current power supplies:
Electronic load modules can be operated in parallel to provide additional current sinking capability.
Control the electronic load how you want to - GPIB, RS232, and manual use of the front panel all provide complete control of these electronic loads. There are also analog programming and monitoring ports for those applications that utilize nonstandard interfaces, require custom waveforms, or utilize process control signals. Custom waveforms can also be created by downloading a “List” of load parameters. In addition, there is a built-in transient generator, which operates in all modes.
Measure with all load modules simultaneously
Testing multiple output DC power supplies and DC to DC converters can be very time consuming if each output must be tested sequentially. If measurements are being made through a MUX using one DMM, this is what will happen. Using the built-in measurement capabilities of the N3300 electronic loads, all outputs can be measured simultaneously. Alternatively, multiple single output power sources can be tested simultaneously.
Measure voltage and current simultaneously
The N3300 measurement system has individual but linked current and voltage measurement systems. This means that voltage and current measurements are taken exactly simultaneously, which gives a true picture of the power supply under the test’s output at a particular moment in time. Some other electronic loads which feature internal measurement systems actually take current and voltage measurements sequentially and therefore do not give as accurate a picture of momentary power.
Model No
N3300A
Condition
New
Volts
240 V
Amps
120 A
Type
Mainframe
Power
1.8 kW
Manufacturer
Keysight
