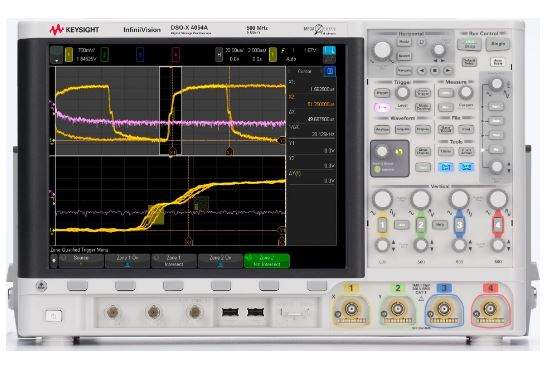

DSOX4054A Keysight Digital Oscilloscope New

The 4000 X-Series boasts 12.1-inch display, capacitive touch screen technology, InfiniiScan Zone touch triggering, 1-million-waveforms/sec update rate, MegaZoom IV smart memory technology and standard segmented memory.

Digital Oscilloscope (500 MHz / 4 Channels)

Keysight InfiniiVision 4000 X-Series oscilloscopes are engineered for next-generation performance to deliver waveform update rates 20 times faster than the competition. A large 12.1-inch capacitive touch screen combined with innovative hardware-based zone touch triggering means you can easily capture and view your signals. Have confidence you will catch even the rarest of glitches and see more with the 4000 X-Series.

Keysight offers several variations of the InfiniiVision 4000 X oscilloscope:

• 2 or 4 analog channels
• Bandwidth: 200 MHz, 350 MHz, 500 MHz, 1 GHz, and 1.5 GHz
• With or without mixed-signal hardware

One million waveforms per second update rate

If you can’t see the problem, it is hard to troubleshoot it. With an industry-leading one million waveforms per second update rate, the InfiniiVision 4000 X-Series gives you the highest probability of capturing random and infrequent events that you would miss on an oscilloscope with a lower waveform update rate.

Powered by MegaZoom IV smart memory technology, the InfiniiVision 4000 X-Series not only lets you see more waveforms, but it has the uncompromised ability to find the most difficult problems in your design. Unlike other oscilloscopes, uncompromised ability means:

• Always-fast, responsive operation
• No slowdown with logic channels on
• No slowdown with protocol decoding on
• No slowdown with math functions turned on
• No slowdown with measurements turned on

Segmented memory: a smart and efficient way to capture waveforms

Acquisition memory size is an essential oscilloscope specification because it determines the amount of data you can capture in a single acquisition. In general, longer memory is better. However, no memory is always long enough to capture all the signals you need, especially when capturing infrequent anomalies, data bursts, or multiple serial bus packets. Segmented memory acquisition lets you selectively capture and store important signal activity without capturing unimportant signal idle time with the time stamp of each segment relative to the first trigger event. Segmented memory comes standard in the 4000 X-Series.

Search and navigation

The parametric and serial bus search and navigation feature comes standard on the 4000 X-Series oscilloscopes. When you are capturing long, complex waveforms using an oscilloscope’s deep acquisition memory, manually scrolling through stored waveform data to find specific events of interest can be slow and cumbersome. With automatic search and navigation capability, you can easily set up specific search criteria and then quickly navigate to “found and marked” events. Available search criteria include edges, pulse width (time-qualified), rise/fall times (time-qualified), runt pulses (time-and level-qualified), frequency peaks (FFT function, threshold and excursion qualified), and serial bus frames, packets, and errors.

Zone touch trigger

One of the biggest challenges of using an oscilloscope is setting up an advanced trigger to isolate a signal of interest. While advanced triggers are powerful features, zone touch trigger provides a turnkey trigger solution.

You simply observe the signal of interest on the display and draw a zone (box) around it. What used to be hours of work can now take just a few seconds. If you want to move your zones to another location, just drag them over. The 4000 X-Series can be set up to easily trigger on one or two zone boxes simultaneously with either must intersect or must not interest conditions.

Zone triggering does not compromise the waveform update rate; the 4000 Z-Series will still maintain an ultrafast 200,000 waveforms per second or more, even with additional features turned on. In other words, the oscilloscope that sees everything can easily trigger on anything.

7-in-1 instrument integration

The Keysight InfiniiVision 4000 X-Series redefines the oscilloscope experience with unprecedented integration. The 7-in-instrument provides:

• Oscilloscope
• 16 digital channels
• Serial protocol analyzer
• Dual-channel WaveGen 20 MHz function/arbitrary waveform generator
• 3-digit voltmeter
• Frequency response analysis (Bode plots)
• 8-digit hardware counter with totalizer

Please note, depending on the configuration of your instrument, several of the items listed above require optional purchases.

Mixed-signal oscilloscope - 16 digital channels

With an additional 16 integrated digital channels, you now have up to 20 channels of time-correlated triggering, acquisition and viewing on the same instrument. This is especially important in today’s embedded designs with sophisticated digital control circuitry. Unlike other oscilloscopes in this class, you can buy a two or four channel DSO and enable the 16 digital channels already in the instrument at any time to make it an MSO with option DSOXPERFMSO.

Serial protocol analysis: Hardware-based serial protocol decode and triggering

Keysight InfiniiVision Series, including the new 4000 X-Series, are the only oscilloscopes to use hardware-based serial protocol decoding. Other vendors’ oscilloscopes use software post-processing techniques to decode serial packets/frames, and therefore, have slow waveform and decode capture rates and could miss critical events and errors due to a long dead-time. Faster decoding with hardware-based technology enhances the probability of capturing infrequent serial communication errors.

After capturing serial bus communication, you can easily perform a search operation based on specific criteria and then quickly navigate to bytes/frames of serial data that satisfy the at search criteria. The 4000 X-Series can decode two serial buses simultaneously using hardware-based decoding and display the captured data in a time-interleaved “lister” display.

Serial protocol decoding can be used simultaneously with segmented memory and zone touch triggering. The 4000 X-Series supports: SENT, I2C, SPI, USB 2.O, RS232/UART, CAN, CANFD, LIN, FlexRay, CXPI, MIL-STE 1553, ARINC 429, I2S, user-definable Manchester, user-defined NRZ, and USB pd.

Dual-channel WaveGen 20-MHz function/arbitrary waveform generator

The 4000 X-Series offer the industry’s first dual-channel, integrated 20-MHz function/arbitrary waveform generator (option DSOX4WAVEGEN2). The integrated generator provides stimulus output of sine, square, ramp, pulse, DC, noise, sine cardinal (sinc), exponential rise, exponential fall, cardiac, Gaussian pulse and arbitrary waveforms (AWG) to your device under test. Signal modulation capability is also available.

With AWG functionality, you can store waveforms from analog channels or reference memory to the arbitrary memory and output from WaveGen. Easily create and edit the waveform using the built-in editor or Keysight’s BenchLink Waveform Builder Basic software.

With dual channels, you can generate differential signals to: output arbitrary clock and data signals to simulate serial buses, create complex modulations (more than the standard modulation feature), output IQ signals and more. The two channels can be tracked together as well (identical frequency, amplitude, offset and duty cycle).

3- digit voltmeter

The 4000 X-Series offers a standard integrated 3-digit voltmeter (DVM) and 5-digit frequency counter (8-digit with external reference) inside the oscilloscope. The voltmeter operates through the same probes as the oscilloscope channels. However, the DVM measurements are de-coupled from the oscilloscope triggering system so that both the DVM and triggered oscilloscope waveform capture can be made with the same connection. The voltmeter results are always displayed, keeping these quick characterization measurements at your fingertips.

What's included:

• 3-year warranty (90 days for unserialized accessories such as passive probes)
• Certificate of Calibration, 2-year calibration interval
• One N2894A 700 MHz passive probe (10:1 attenuation) per channel
• Localized interface, front panel overlay and built-in help system in English, Chinese (simplified and traditional), French, German, Italian, Japanese, Korean, Portuguese, Russian, and Spanish
• Localized power cord
• Front panel cover
• Documentation CD containing localized user’s guide, service guide, and programmer’s manual
