• 3706-SNFP Keithley Switch Mainframe
1 1
New
Earn Loyalty with Rewards
Compare

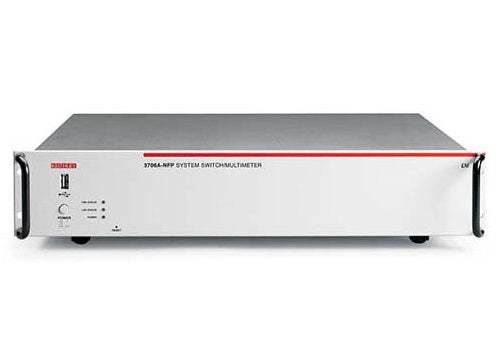

3706-SNFP Keithley Switch Mainframe New

3706-SNFP Keithley Switch Mainframe New

$1,920
$1,920 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Select option

Features:

  • Six-slot system switch, without front panel display and keypad
  • Six slot system switch mainframe with optional high performance multimeter
  • Multi-processor architecture optimized for high throughput scanning and pattern switching applications
  • Remote PC control via Ethernet, USB, and GPIB interfaces
  • Up to 576 two-wire or 720 onewire multiplexer channels in one mainframe
  • Up to 2,688 one-pole matrix crosspoints in one mainframe
  • Embedded Test Script Processor (TSP®) offering unparalleled system automation, throughput, and flexibility
  • TSP-Link® master/slave connection provides easy system expansion and seamless connection to Series 2600 SourceMeter® instruments
  • Capable of over 14,000 readings per second to memory with optional high performance multimeter
  • LXI Class B with embedded Web browser interface for test setup, maintenance, and basic application control
View full details
More Details
Specifications
Datasheets

The Model 3706-SNFP system switch without front panel display and keypad contains six slots for plug-in cards in a compact 2U high (3.5 inches/89mm) enclosure that easily accommodates the needs of medium to high channel count applications. When fully loaded, a mainframe can support up to 576 two-wire multiplexer channels for unrivaled density and economical per channel costs.

Model No

3706-SNFP

Condition

New

Manufacturer

Keithley

Keithley 3700 Series
Compare All Models
