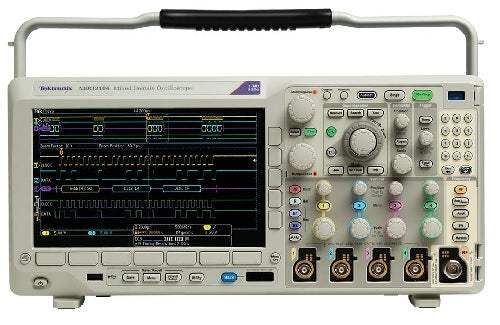

MDO3104 Tektronix Mixed Domain Oscilloscope Used

MDO3104 Tektronix Mixed Domain Oscilloscope Used

$16,800
$16,800 $0
Shipping calculated at checkout.
Calibrations
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Mixed Domain Oscilloscope with (4) 1 GHz analog channels, and (1) 1 GHz spectrum analyzer input
  • The Ultimate 6-in-1 Integrated Oscilloscope, Completely Customizable and Fully Upgradeable
  • FastAcq™ high-speed waveform capture rate finds elusive signal anomalies quickly
  • Wave Inspector® Controls provide easy navigation and automated search of waveform data
  • 33 automated measurements and waveform histograms for simplified waveform analysis
  • TekVPI® probe interface directly supports active, differential, and current probes for automatic scaling and units
  • 9 in. (229 mm) WVGA widescreen color display
  • Small footprint and lightweight – Only 5.8 in. (147 mm) deep and 9.2 lb. (4.2 kg)
Share on
View full details
More Details
Specifications
Options
Datasheets

Oscilloscope

  • Bandwidth: 1 GHz
  • 4 analog channels
  • Sample Rate: 5 GS/s
  • 10 M record length on all channels
  • >280,000 wfm/s maximum waveform capture rate

Spectrum Analyzer

  • Frequency range: Standard: 9 kHz - oscilloscope bandwidth
  • Optional: 9 kHz - 3 GHz
  • Ultra-wide capture bandwidth up to 3 GHz

Logic Analyzer

  • 16 digital channels
  • 10 M record length on all channels
  • 121.2 ps timing resolution

Today’s integrated designs need an oscilloscope that is just as integrated – such as the MDO3000 Mixed Domain Oscilloscope (MDO) Series. It is the ultimate 6-in-1 integrated oscilloscope that includes an integrated spectrum analyzer, arbitrary function generator, logic analyzer, protocol analyzer, and digital voltmeter/counter. The MDO3000 is completely customizable and fully upgradeable. Add the instruments and performance you need now – or later.

Model No

MDO3104

Condition

Used

Manufacturer

Tektronix

Channels

4

Frequency

1 GHz

Record length

10 MPts

Sampling rate

5 GS/s

MDO3AERO

Aerospace Serial Triggering and Analysis Module

MDO3AUDIO

Enables triggering on packet-level information on I2S , LJ , RJ , and TDM audio buses

MDO3AUTO

Enables triggering on packet-level information on CAN and LIN buses

MDO3COMP

Enables triggering on packet-level information on RS-232/422/485/UART buses

MDO3DVM

DVM option

MDO3EMBD

Enables triggering on packet-level information on I2C and SPI buses

MDO3FLEX

Enables triggering on packet-level information on FlexRay buses

MDO3LMT

Enables testing against limit templates generated from “golden” waveforms

MDO3MSO

16 digital channels; includes P6616 digital probe and accessories

MDO3PWR

Power Analysis Application Module for all models of the MDO3000 Series

MDO3SA

Increase spectrum analyzer input frequency range to 9 kHz–3 GHz and capture bandwidth to 3 GHz

MDO3USB

USB Serial Triggering and Analysis Module

MDOAFG

Adds arbitrary function generator
