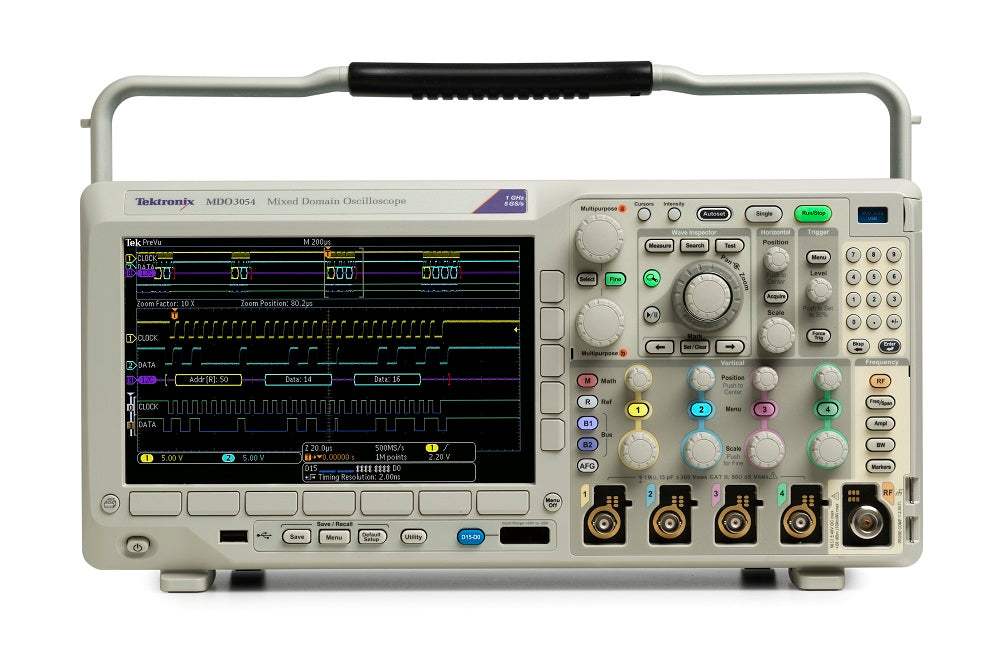

• MDO3054 Tektronix Mixed Domain Oscilloscope
1 1
Used
Compare
lab tested

MDO3054 Tektronix Mixed Domain Oscilloscope Used

MDO3054 Tektronix Mixed Domain Oscilloscope Used

$12,900
$12,900 $0
Shipping calculated at checkout.
Calibrations
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Mixed Domain Oscilloscope with (4) 500 MHz analog channels, and (1) 500 MHz spectrum analyzer input
  • FastAcq™ high-speed waveform capture rate finds elusive signal anomalies quickly
  • Wave Inspector® Controls provide easy navigation and automated search of waveform data
  • 33 automated measurements and waveform histograms for simplified waveform analysis
  • TekVPI® probe interface directly supports active, differential, and current probes for automatic scaling and units
  • 9 in. (229 mm) WVGA widescreen color display
  • Small footprint and lightweight – Only 5.8 in. (147 mm) deep and 9.2 lb. (4.2 kg)
Share on
View full details
More Details
Specifications
Options
Datasheets

The Tektronix MDO3054 is a Mixed Domain Oscilloscope with (4) 500 MHz analog channels, and (1) 500 MHz spectrum analyzer input.

At the core of the MDO3000 Series is a world-class oscilloscope, offering comprehensive tools that speed each stage of debug – from quickly discovering anomalies and capturing them, to searching your waveform record for events of interest and analyzing their characteristics and your device’s behavior.

Model No

MDO3054

Condition

Used

Manufacturer

Tektronix

Channels

4

Frequency

500 MHz

Record length

10 MPts

Sampling rate

2.5 GS/s

MDO3AERO

Aerospace Serial Triggering and Analysis Module

MDO3AUDIO

Enables triggering on packet-level information on I2S , LJ , RJ , and TDM audio buses

MDO3AUTO

Enables triggering on packet-level information on CAN and LIN buses

MDO3COMP

Enables triggering on packet-level information on RS-232/422/485/UART buses

MDO3DVM

DVM option

MDO3EMBD

Enables triggering on packet-level information on I2C and SPI buses

MDO3FLEX

Enables triggering on packet-level information on FlexRay buses

MDO3LMT

Enables testing against limit templates generated from “golden” waveforms

MDO3MSO

16 digital channels; includes P6616 digital probe and accessories

MDO3PWR

Power Analysis Application Module for all models of the MDO3000 Series

MDO3SA

Increase spectrum analyzer input frequency range to 9 kHz–3 GHz and capture bandwidth to 3 GHz

MDO3USB

USB Serial Triggering and Analysis Module

MDOAFG

Adds arbitrary function generator
