ZVH-K42 Rohde & Schwarz Vector Network Analysis NEW

ZVH-K42 Rohde & Schwarz Vector Network Analysis NEW

$8,530
$8,530 $0
Shipping calculated at checkout.
Request a Quote

Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Vector network analysis option
  • For ZVH4 and ZVH8
  • Transforms the ZVH into a two-port vector network analyzer
  • Matching and transmission characteristics of filters, amplifiers, etc. can be determined quickly and with high accuracy in the forward and reverse direction with only one test setup
  • Increased measurement accuracy due to vector system error correction
  • Measurement of magnitude and phase of S-parameters S11, S21, S12 and S22
  • Simultaneous display of magnitude and phase in split screen mode
  • Simultaneous display of four different S-parameters

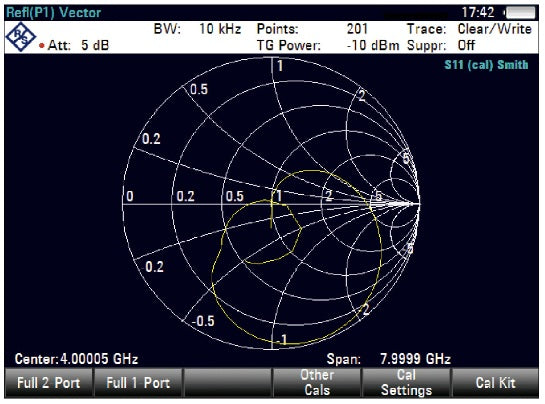

  • Smith chart with zoom function
View full details
More Details
Specifications
Datasheets
Manuals

The R&S ZVH-K42 option transforms the R&S ZVH into a two-port vector network analyzer. Matching and transmission characteristics of filters, amplifiers, etc. can be determined quickly and with high accuracy in the forward and reverse direction with only one test setup.

  • Increased measurement accuracy due to vector system error correction
  • Measurement of magnitude and phase of S-parameters S11, S21, S12 and S22
  • Simultaneous display of magnitude and phase in split screen mode
  • Simultaneous display of four different S-parameters
  • Smith chart with zoom function
  • Support of all conventional marker formats
  • Input of a reference impedance for DUTs with an impedance other than 50 Ω
  • Electrical length measurement
  • Determination of group delay

*The image is for reference only.  See product specifications for details.

Model No

ZVH-K42

Condition

New

Manufacturer

Rohde & Schwarz

Rohde & Schwarz ZVH
