• U7242A Keysight Technologies Fixture
1 1
New
Earn Loyalty with Rewards
Compare

U7242A Keysight Fixture New

U7242A Keysight Fixture New

$4,653
$4,653 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty
Similar Used Units
Used unit product
U7242A Keysight Fixture Used $2,495.00
Request a Quote

Features:

  • Provides test point access for transmitter measurements
  • Single-ended measurements as required by the USB 3.0 specification for transmitter and receiver validation and pre-compliance testing
  • Differential measurements using active probes allow probing of active bus transactions for debug and verification testing
  • USB 3.0 power probing features for easy measurement of transient and steady state power states
View full details
More Details
Specifications
Datasheets

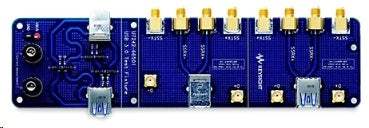

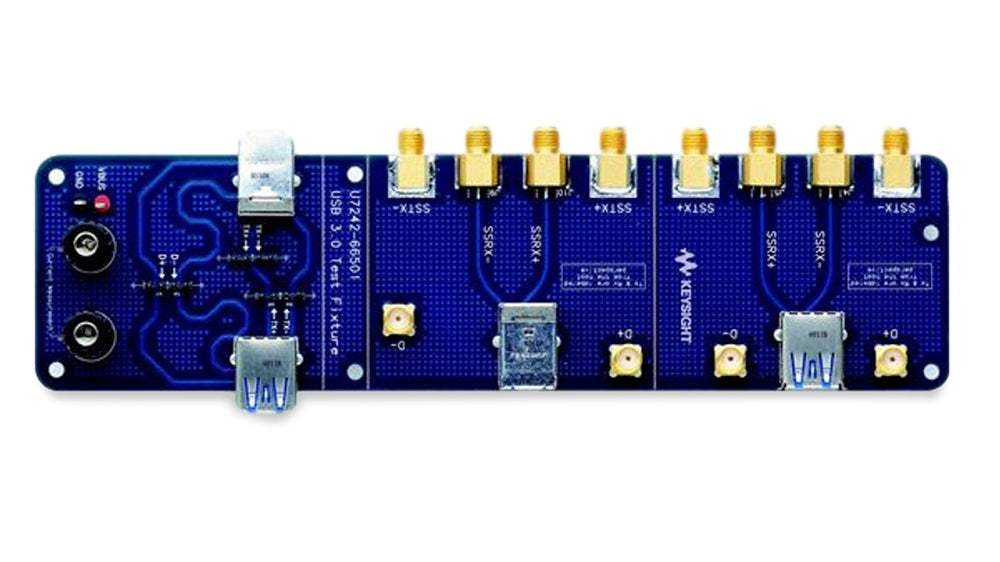

The U7242A USB 3.0 test fixture will help simplify the USB 3.0 measurement process by providing access to the transmitter and receiver measurement points required for USB 3.0 compliance testing. It has been designed for direct SMA connections for easy and accurate measurements with direct connections to the oscilloscope and J-Bert SMA connections. It also includes probing connections for InfiniiMax active differential probes for the characterization and testing of active bus signaling of USB 3.0 and USB 2.0 traffic.

  • Provides test point access for high performance transmitter signal integrity measurements
  • Provides receiver test connections for receiver jitter tolerance testing
  • Convenient plug on probing - Header access to the USB 3.0 and USB 2.0 signal lanes for
  • Differential measurements using active probes allow probing of active bus transactions for debug and verification testing
  • USB 3.0 power probing features for easy measurement of transient and steady state power states
  • For fixture characterization and USB 3.0 test tool information, select the Related Products tab

Model No

U7242A

Condition

New

Manufacturer

Keysight

Keysight Technologies U7242A USB 3.0 Transmitter & Receiver Test Fixture Data Sheet
