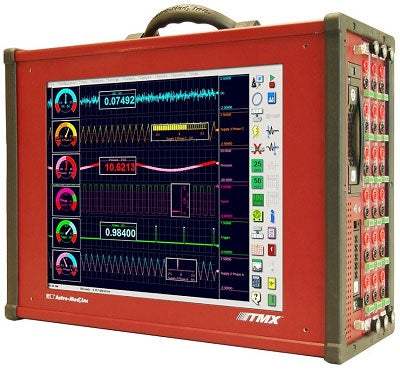

The Astro-Med TMX-18 is a portable high-speed data acquisition system that combines 18 channels of isolated voltage and DC bridge inputs with a 17-inch touch-screen display in a single ruggedized chassis. The base configuration uses three UNIV-6 Universal Isolated Voltage Modules, each providing six channels with 250 Vrms (Cat II) isolation, AC/DC coupling, and selectable input ranges from 200 mV full scale through 800 V full scale. Sample rates reach 800 kHz per channel with bandwidth up to 100 kHz, and each channel uses a separate 16-bit A/D converter so that multi-channel data remains time-aligned at acquisition.
The system is designed for field and lab applications where long-duration trending must be combined with the ability to capture transient events without missing detail. Listed use cases include long-term trending and high-speed event detection, transient capture, timing and synchronization analysis, power monitoring (using the DSP RMS filter), and acceleration/deceleration measurement applications (using the integration and differentiation filter functions). The 18-channel chassis accepts up to three analog input modules and provides 16 TTL event inputs along with derived-channel math functions including sum, difference, product, quotient, exponential, sine, cosine, tangent, inverse trig, exponential square root, and absolute value.
Whether you are integrating a TMX-18 into a flight test instrumentation rack, a production-floor monitoring station, or a long-duration vibration survey, ValueTronics stocks, tests, and ships data acquisition systems from our 20,000 sq ft secure warehouse at 1675 Cambridge Drive in Elgin, Illinois. Our in-house technical team verifies functionality before each unit ships, which matters for multi-module DAQ systems where channel count, input module configuration, and optional capabilities such as IRIG/GPS or CAN bus must be confirmed against the customer's measurement requirement before delivery rather than after.
Astro-Med, Inc. operates the Test & Measurement Product Group that manufactures the TMX series along with the company's other recording and data acquisition product lines. The corporate parent, headquartered in West Warwick, Rhode Island, has since rebranded as AstroNova, Inc.; both names refer to the same continuing operation and the TMX product line transitioned with the rebrand.
| 18-Channel Chassis with 3 UNIV-6 Universal Isolated Voltage Modules | |
|---|---|
| Maximum Analog Modules | 3 |
| Maximum Analog Waveforms | 18 |
| Event Inputs (TTL) | 16 |
| Derived Channels | +, -, x, ÷, Exponential, Sin, Cos, Tan, Asin, Acos, Atan, Exp √, Absolute Value |
| Data Acquisition Recording | |
| Operational Modes | Scope, Review, Real-time (strip-chart) |
| Recording Method | Internal removable 1 TByte SATA disk drive |
| Time Stamp | Time and date automatically saved with data |
| Trigger Point | Amount of pre and post trigger is user adjustable |
| Filtering | Low pass, high pass, band pass, band stop, RMS, integration & differentiation |
| Color Display | |
| Type | Active matrix color LCD (TFT) |
| Viewing Area | 17 in. (43.2 cm) diagonal |
| Resolution | 1280 x 1024 |
| Touch | Full screen, resistive |
| Compliance / Environmental | |
| Operating Temp | 32 to 104 °F (0 to 40 °C) |
| Operating Humidity | 10% to 90% non condensing |
| Shock | MIL-STD-810F Method 516.5, Procedure I |
| Vibration | MIL-STD-810F Method 514.5, Procedure I |
| Physical | |
| Enclosure | Aluminum, with armored end caps |
| Dimensions | 14.5 in. (36.8 cm) H x 19 in. (48.3 cm) W x 7.5 in. (19.1 cm) D (without handle) |
| Weight (including 3 modules) | 37 lbs (15.78 kg) |
| Interface | |
| Ethernet | 1000BaseT |
| VGA | For displaying data on an external monitor |
| USB 2.0 (8 ports/unit) | For external peripherals and file export |
| Expansion Port | For connection of optional TMX-E |
| System Power | |
| Input Voltage Range | 100 to 264 VAC or 24 VDC at 11 A |
| Frequency Range | 47 Hz to 63 Hz |
| UNIV-6 Universal Isolated Voltage Module with DC Bridge | |
| Channels (per module) | 6 |
| Maximum Sample Rate/Ch | 800 kHz (400 kHz with TMX-E) |
| Isolation | 250 Vrms or DC, Cat II |
| Maximum Bandwidth | Up to 100 kHz |
| Input Type | Isolated, AC/DC coupled |
| Specified Ranges | 200 mVFS to 800 VFS |
Please review the Manufacturer's Data Sheet to verify published specifications. Feedback on this webpage is always welcome — please reach out to your Test Architect at any time for questions or concerns. Thank you, we truly appreciate you being our customer.
