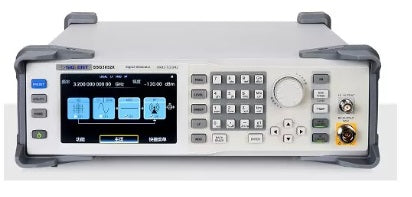

Siglent SSG3032X-IQE PLUS RF Signal Generator NEW

Siglent SSG3032X-IQE PLUS RF Signal Generator NEW

$6,690
$6,690 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

🎓 Request a Quote To Get An EDU Discount

Features:

  • Frequency Range: 9 KHz – 3.2 GHz
  • Calibrated Output Range (-110 dBm – +13 dBm) (Max. level to +20 dBm (Typ.)
  • External I/Q modulation can be supplied by using a Siglent SDG6000X-series generator with the I/Q option installed (not included)
  • Phase Noise: -110 dBc/Hz @ 1 GHz, 20 Khz offset (Typ.)
  • Built-in AM, FM, PM. Optional Pulse Train Modulation
  • External USB-Power Sensor support (Power sensor not included)
  • Capacitive Touch Display / Web Browser Based Remote Control
View full details
More Details
Specifications
Datasheets

SIGLENT’S SSG3032X-IQE signal generators have a frequency range of 9 kHz to 3.2 GHz and calibrated output levels from -110 dBm to +13 dBm (typical to +20 dBm). It provides standard analog modulation such as AM, FM, and PM as well as optional pulse modulation and pulse train generation. External I/Q modulation is also provided by using the Siglent SDG6000X family of generators with the I/Q option (not included).

The SSG3032X offers amplitude resolution of 0.01 dB and frequency resolution of 0.01 Hz. Level accuracy is <=0.7 dB (Typ.)

With its high accuracy and pure output, the SSG3000X series is the right choice for R&D, education, and manufacturing.

*The image is for reference only. See product specification for details.

Model No

Siglent

Condition

New

Manufacturer

Siglent

Rf_gen_freq

9 KHz – 3.2 GHz

Siglent SSG3000X Datasheet
