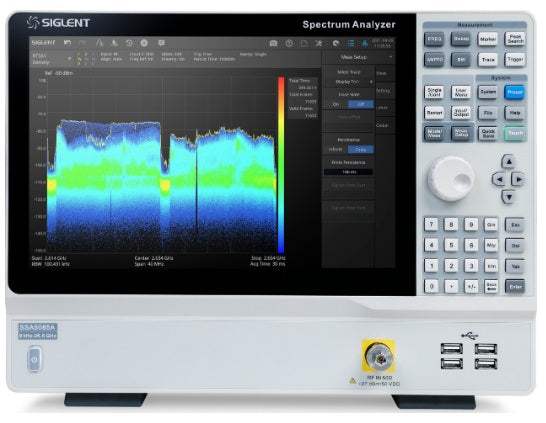

In summary, the Siglent SSA5085A is a benchtop spectrum analyzer covering 9 kHz to 26.5 GHz with a -165 dBm/Hz typical displayed average noise level, -105 dBc/Hz typical SSB phase noise at 1 GHz / 10 kHz offset, and 25 MHz of standard analysis bandwidth (40 MHz optional). It supports real-time spectrum analysis with a 7.20 µs 100% probability-of-intercept minimum signal duration, analog modulation analysis (AM, FM, PM), vector digital modulation analysis (ASK, FSK, MSK, PSK, QAM), and CISPR 16-1-1 EMI pre-compliance, on a 12.1 inch multi-touch screen with HDMI output and web-browser remote control.
The SSA5085A is used for RF spectrum and signal analysis including channel power, ACPR, occupied bandwidth, harmonic, and third-order intercept measurements, plus real-time captures of hopping signals, transient interference, and intermittent emissions that a strictly swept analyzer cannot reliably catch. Per the datasheet, applications include broadcast monitoring, cellular site work, IoT device characterization, WLAN and Bluetooth surveying, education, production test, and field maintenance.
A swept analyzer measures one narrow segment at a time and steps through the span sequentially, so short events between sweeps are missed. The SSA5085A with the SSA5000A-RTA1 option performs up to 150,000 FFTs per second over a 40 MHz analysis bandwidth and guarantees 100% probability of intercept for signals as short as 7.20 µs — suitable for frequency-hopping radios, radar pulses, and intermittent interference. Per the datasheet, the SSA5085A delivers -165 dBm/Hz typical DANL with preamp on, +15 dBm typical TOI from 50 MHz to 7.22 GHz, residual response under -90 dBm, RBW from 1 Hz to 10 MHz in 1-3-10 sequence, and CISPR 16-1-1 EMI filters at 200 Hz, 9 kHz, 120 kHz, and 1 MHz. The 10 MHz reference can be locked externally, and SCPI / IVI / LabVIEW remote control is supported over USB-TMC, VXI-11, socket, and Telnet, with an optional USB-GPIB adapter.
Per the manufacturer datasheet, the standard ship kit includes: printed Quick Start documentation; USB Type-B device cable; region-appropriate AC power cord; wireless USB mouse; and a 2.92 mm female-to-female through adapter (2.92F-2.92F-40A, DC to 40 GHz).
| Frequency range / resolution | 9 kHz to 26.5 GHz / 1 Hz |
|---|---|
| Internal reference | 10.000000 MHz, < 1 ppm initial, < 0.5 ppm/yr aging |
| OCXO option 10M_OCXO_L | < 0.1 ppm initial, < 50 ppb/yr aging |
| RBW / VBW (-3 dB) | 1 Hz to 10 MHz, 1-3-10 sequence |
| EMI filter (-6 dB) | 200 Hz, 9 kHz, 120 kHz, 1 MHz (CISPR 16) |
| Analysis bandwidth | 25 MHz std., 40 MHz opt. (SSA5000-B40) |
| Sweep time, Span = 0 Hz / ≥ 100 Hz | 1 µs to 6000 s / 1 ms to 4000 s |
| Sweep mode | Swept (RBW 3 kHz-10 MHz); FFT (1 Hz-10 kHz) |
| Trigger sources / external | Free, Video, External, Period / 5 V TTL |
| Gate methods | Gated LO, Gated Video, Gated FFT |
| Measurement range (preamp off, 1 MHz to 26.5 GHz) | DANL to +23 dBm |
|---|---|
| Reference level | -170 dBm to +23 dBm, 1 dB steps |
| Preamplifier | 20 dB nominal, 100 kHz to 26.5 GHz |
| Input attenuation | 0 to 50 dB, 2 dB steps |
| Maximum input DC voltage | ± 50 VDC |
| Maximum average power | 27 dBm, 3 min, fc ≥ 10 MHz, att > 20 dB |
| Traces / detectors | 6 / Pos-peak, Neg-peak, Sample, Normal, Average (V/RMS/Video) |
| SSB phase noise (fc = 1 GHz), 10 kHz offset | -103 dBc/Hz, -105 typ. |
| SSB phase noise, 100 kHz / 1 MHz offset | -103, -105 typ. / -116, -119 typ. dBc/Hz |
Conditions: 20-30 °C, att = 0 dB, RBW = 1 Hz, sample detector, trace average > 50.
| Range | Preamp Off | Preamp On |
|---|---|---|
| 100 kHz to 1 MHz | -130, -143 | -135, -148 |
| 1 MHz to 10 MHz | -143, -148 | -153, -165 |
| 10 MHz to 1.22 GHz | -144, -148 | -159, -163 |
| 1.22 to 3.15 GHz | -140, -144 | -158, -162 |
| 3.15 to 7.22 GHz | -137, -141 | -154, -158 |
| 7.22 to 13.6 GHz | -136, -140 | -154, -158 |
| 13.6 to 18.9 GHz | -134, -140 | -151, -155 |
| 18.9 to 24.2 GHz | -132, -137 | -148, -152 |
| 24.2 to 26.5 GHz | -124, -134 | -142, -149 |
Values shown as guaranteed, typical.
| Frequency response, 10 MHz to 7.5 GHz | ± 1.5 dB |
|---|---|
| Frequency response, 7.5 to 13.6 GHz | ± 2.0 dB |
| Frequency response, 13.6 to 26.5 GHz | ± 2.5 dB |
| Absolute amplitude accuracy at 50 MHz | ± 0.4 dB |
| RBW switching uncertainty | ± 0.2 dB nominal |
| RF input VSWR, 10 MHz to 13.6 GHz | 1.6 nominal |
| RF input VSWR, 13.6 to 24.2 GHz | 1.9 nominal |
| RF input VSWR, 24.2 to 26.5 GHz | 2.1 nominal |
| Second harmonic distortion (SHI), 10 MHz to 7.22 GHz | 42 dBm nominal |
| Third-order intercept (TOI), 50 MHz to 7.22 GHz | 11 dBm, 15 dBm nominal |
| Third-order intercept (TOI), 7.22 GHz to 26.5 GHz | 10 dBm, 14 dBm nominal |
| Residual response / spurious | < -90 dBm / < -65 dBc (mixer -30 dBm) |
| 1 dB gain compression | > 5 dBm nominal |
| Real-time bandwidth (SSA5000A-RTA1) | 25 MHz default, 40 MHz with SSA5000A-B40 |
|---|---|
| 100% POI minimum signal duration | 7.20 µs, Kaiser window, FMT |
| FFT per second (40 MHz BW) / max stored frames | 150,000 / 50,000 (loop) |
| Spectrogram dynamic range | 200 dB |
| FMT types | Greater Than, Less Than, Outside Mask, Inside Mask |
| Advanced Measurement Kit (SSA5000-AMK) | CHP, ACPR, OBW, T-Power, CNR, Harmonic (up to 10), TOI, Spectrogram |
| EMI (SSA5000-EMI) detectors / limit standards | Peak, Voltage Average, Quasi-Peak / EN 550xx, GB 9254, FCC Part 15, user |
| Analog Mod. Analysis (SSA5000-AMA) | AM, FM, PM, ± 4% accuracy; carrier 2 MHz to 26.5 GHz |
| AM / FM / PM range | 20 Hz-100 kHz, 5-95% / 20 Hz-200 kHz, 1-400 kHz / 50 Hz-50 kHz, 0.2-100 rad |
| Digital Mod. Analysis (SSA5000-DMA) | ASK, 2/4/8/16 FSK, GMSK MSK, BPSK/QPSK/OQPSK/8PSK, DBPSK/DQPSK/D8PSK/π-4-DQPSK/π-8-D8PSK, 16/32/64/128/256 QAM |
| Symbol rate | 1 ksps to 32 Msps; Rate × Pts/Sym ≤ 150 Msps |
| Error metrics | EVM (rms, peak), magnitude error, phase error, IQ offset, carrier offset, SNR, quadrature error, gain imbalance |
| RF input | 2.92 mm male, 50 Ω nominal (front) |
|---|---|
| USB / LAN | 4 USB-A + 1 USB-B 2.0 / 10/100 Base, RJ-45 |
| Video / Audio | HDMI / 3.5 mm jack |
| 10 MHz reference I/O | Out: > 0 dBm; In: -5 to +10 dBm; BNC-F, 50 Ω |
| External trigger I/O | Out: 3.3 V TTL; In: 5 V TTL, 1 kΩ |
| Remote protocols | SCPI / LabVIEW / IVI over USB-TMC, VXI-11, Socket, Telnet; NI-MAX; HTML5 web browser; GPIB via USB-GPIB adapter |
| Display | TFT LCD, 1200 × 800, 12.1 inch multi-touch |
|---|---|
| Storage | eMMC 4 GB internal, 32 GB USB external |
| Dimensions (W×H×D) / weight | 378 × 284 × 126 mm / 7.40 kg (16.3 lb) |
| AC source | 100-240 V, 50/60 Hz or 100-120 V, 400 Hz; 80 W max |
| Operating temperature / humidity | 0 to 50 °C; ≤ 95% RH (0-30 °C), ≤ 75% RH (30-50 °C) |
| Altitude / safety | < 3000 m / IEC, EN, UL, CSA 61010-1 and 61010-2-30 |
| EMC / RoHS | EN 61326-1:2013, EN 61000-3-2/3 / 2011/65/EU |
The SRF5030T near-field probe kit (3 H-probes at 20/10/5 mm, 1 E-probe at 5 mm, 300 kHz to 3 GHz) is an optional accessory for EMI source-location work and is ordered separately. The SSA5000-AMK / SSA5000A-RTA1 / SSA5000-B40 / SSA5000-EMI / SSA5000-AMA / SSA5000-DMA / 10M_OCXO_L are software / factory-installed options. Confirm required options at the time of order.
