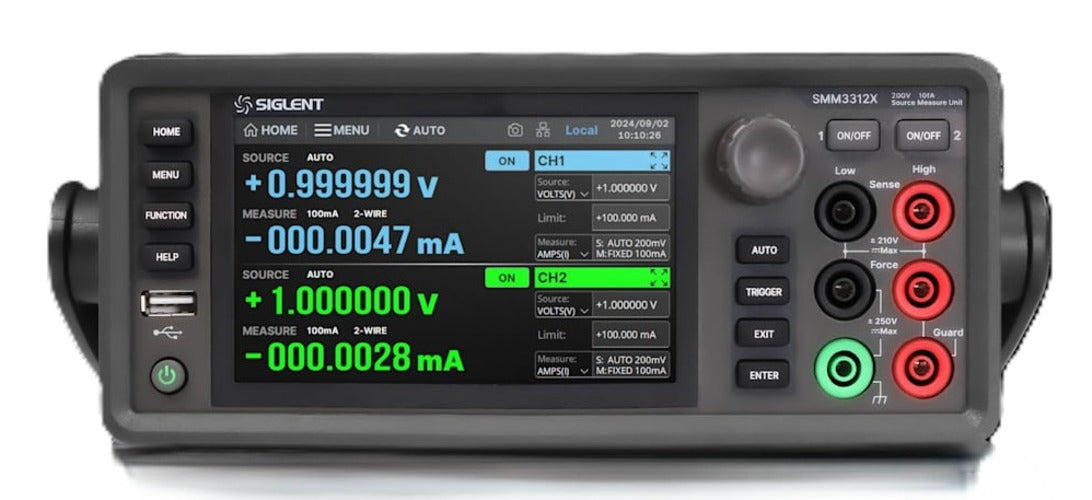

SMM3312X Siglent Sourcemeter New

SMM3312X Siglent Sourcemeter New

$8,580
$8,580 $0
Shipping calculated at checkout.
Request a Quote

Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • SMM3312X Precision Source Measure Unit 2 Channel
  • Integrated 4-quadrant sourcing and measuring capabilities
  • Five basic modes: voltage source, current source, voltmeter, ammeter and resistance meter
  • Voltage (+/- 210V) and current (+/- 3A DC and +/- 10.5A pulsed) sourcing capability/measurement range
  • Source and measurement resolution down to 10fA and 100nV
  • Maximum display digits: 6-1/2 (5in, high resolution capacitive touchscreen GUI)
  • Pulse, Sweep, List Sweep, Output Filter, Resistance, Math Expression, Limit Test, Trace Buffer, etc
  • 12 external trigger ports, 6 inputs, 6 outputs; Support standard SCPI remote control commands
  • Up to 100k points of internal storage space, supporting timestamps
  • Configuration Interfaces: USB Device (optional USB-GPIB adapter), USB Host, LAN
View full details
More Details
Specifications
Datasheets
Manuals

Precision Source Measure Unit: 210V, 3A DC/10.5A pulse (2 Channel)

The Siglent SMM3000X series is a precise Source/Measure Unit (SMU) instrument that can simultaneously output and measure voltage and current. It integrates the functions of a current source, voltage source, voltmeter, and ammeter within the instrument, allowing for easy switching between these functions. The graphical user interface (GUI) it employs, along with advanced capacitive touchscreen technology, allows for intuitive operation. The SMM3000X series is a versatile instrument especially suited for characterizing modern scaled semiconductors, nano-scale devices and materials, organic semiconductors, printed electronics, and other small-geometry and low-power devices.

It is widely used in fields such as research and educational applications, industrial development, testing, and manufacturing.

Applications Include:

  • Testing semiconductors, discrete and passive components Diodes, laser diodes, LEDs Photodetectors, sensors Field effect transistors (FETs), bipolar junction transistors (BJTs) ICs(ICs, RFICs, MMICs) Resistor, Varistor, thermistors, switches

  • Testing precision electronics and green energy devices
  • Photovoltaic cells Power transistors, power devices Battery, Automotive, Medical instruments Power and DC bias source for circuit test
  • Research and education
  • New material investigations Nano devices characterization (e.g. CNT) Giant magnetic resistance (GMR) Organic devices, Any precise voltage/current source and measurement

Model No

SMM3312X

Condition

New

Manufacturer

Siglent

Volts

210 V

Volts

31.8 W

Amps

10.5 A

Siglent SMM3000X Series
Siglent SMM3000X Series User Manual
