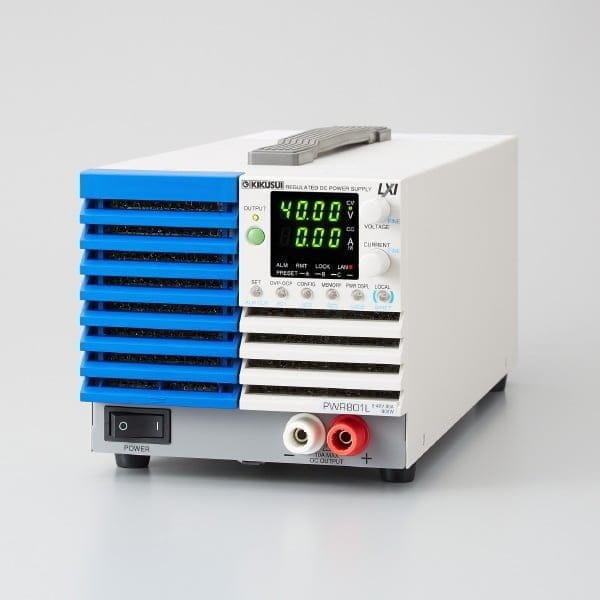

PWR801ML Kikusui DC Power Supply New

PWR801ML Kikusui DC Power Supply New

$1,990
$1,990 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

🎓 Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Sequence function (supports triggered synchronization)
  • Variable internal resistance function
  • LAN (LXI compliant) /USB/RS232C as standard interface
  • A virtual multi-channel bus (VMCB) function makes multi-channel operation more efficient
  • A wide range of voltage and current settings can be combined within its output power rating (3 to 4 times)
  • Supporting universal input voltage (85 V to 265 V)
  • CONFIG setting shortcut function and display (Up to three parameters can be registered.)
  • Setting preset memory function (3 combinations of settings for voltage, current, OVP, OCP, and UVL)
  • Bleeder (sink) can be turned ON/OFF, with an even stronger bleeder mode setting available
  • Output ON/OFF delay function
  • Soft start/stop function
  • Durable Performance Operating temperature guaranteed up to 50 °C (122 °F). (Storage temperature is -25 °C to +60 °C (-13 °F to 140 °F).)
View full details
More Details
Specifications
Manuals
Item/Model PWR801L PWR801ML PWR801MH PWR801H
Nominal input rating 100 Vac to 240 Vac, 50 Hz to 60 Hz, single phase
Input voltage range 85 Vac to 265 Vac
Input frequency range 47 Hz to 63 Hz
Current (TYP) *1 100 Vac 11.2 A
200 Vac 5.6 A
Inrush current 50 A or less
Power (MAX) *2 1120 VA
Power factor (TYP) *1 0.99 (input voltage: 100 V), 0.97 (input voltage: 200 V)
Efficiency (TYP) *1 75%
Output hold time *2 20 ms or more



Item/Model PWR801L PWR801ML PWR801MH PWR801H
Rating Output voltage *1 40 V 80 V 240 V 650 V
Output current *1 80 A 40 A 10 A 3.70 A
Output power 800 W
Voltage Maximum settable voltage *2 42 V 84 V 252 V 682.5 V
Setting accuracy ±（0.05 % of setting +0.05 % of rating）
Resolution   200 mV 400 mV 1000 mV 2500 mV
Using FINE, OUT OFF 10 mV 10 mV 100 mV 100 mV
Using FINE, OUT ON 1 mV 1 mV 10 mV 10 mV
When using a communication interface 0.1 mV 0.1 mV 0.1 mV 0.1 mV
Line regulation *3 ± 6 mV ± 10 mV ± 26 mV ± 67 mV
Load regulation *4 ± 6 mV ± 10 mV ± 26 mV ± 67 mV
Transient response *5 1 ms or less 2 ms or less 2 ms or less 3 ms or less
Ripple noise *6 p-p *7 50 mV 50 mV 100 mV 300 mV
rms *8 5 mV 5 mV 20 mV 50 mV
Rise time At full load 50 ms or less 100 ms or less
No load 50 ms or less 100 ms or less
Fall time *9 At full load 50 ms or less 150 ms 250 ms
No load 500 ms or less 1200 ms 2000 ms
Maximum remote sensing compen- sation voltage (single line) 1.5 V 4 V 5 V 5 V
Temperature coefficient *10 100 ppm/ ℃
Current Maximum settable current *2 84 A 42 A 10.5 A 3.885 A
Setting accuracy *11 ±（0.5 % of setting +0.1 % of rating）
Resolution   400 mA 200 mA 40 mA 20 mA
Using FINE, OUT OFF 10 mA 10 mA 10mA 1 mA
Using FINE, OUT ON 1 mA 1 mA 1 mA 0.1 mA
When using a communication interface 0.1 mA 0.1 mA 0.1 mA 0.1 mA
Line regulation ± 10 mA ± 6 mA ± 3 mA ± 2.4 mA
Load regulation ± 21 mA ± 13 mA ± 7 mA ± 5.7 mA
Ripple noise *12 rms*8 160 mA 80 mA 24 mA 12 mA
Rise time (TYP) At full load 50 ms 100 ms
Fall time (TYP) At full load 50 ms 100 ms
Temperature coefficient *10 100 ppm/ ℃
Maximum internal resistance that can be set 0.500 Ω 2.000 Ω 18.00 Ω 131.8 Ω



Model No

PWR801ML

Condition

New

Manufacturer

Kikusui

Current

50 A

Voltage

100 V

Power

800 W
