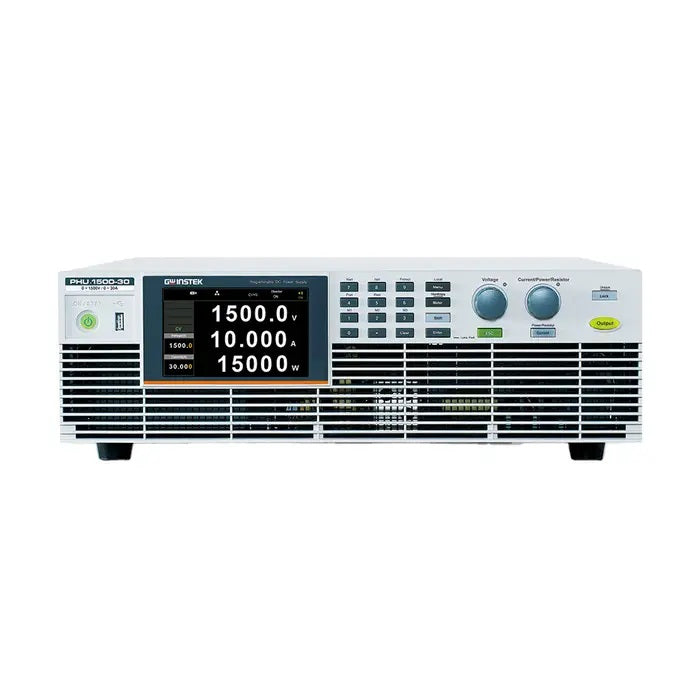

The GW Instek PHU 1500-20 is a single channel programmable DC power supply featuring an output voltage of 1500 V, 20 A current output and a 10 KW power output. The circuit design adopts SiC (silicon carbide) components to achieve high power density characteristics which can generate 5 kW output and keep the compact size at just 3U height.
The PHU 1500-20's wide voltage and current range, along with its high-power characteristics, can cover a broader range of testing applications such as photovoltaic systems, electric vehicles (EVs), and automotive electronics, etc.
The AWS (Advanced Web Server) function allows the user to operate devices directly through a web browser, without needing to install any complicated software or drivers. This functionality allows users to complete tasks more efficiently, saving time and increasing productivity.
The unique APC (Adaptive Parallel Connection) feature of the PHU series offers adaptability in parallel connection, allowing users to make the best choice according to their needs. Up to 10 PHU units can be connected to reach 150 kW without the need for additional power distribution for control.
For industry interface, the PHU 1500-20 provides a variety of embedded industrial interface options to meet user needs, eliminating the need for users to prepare additional interfaces. The available ports including EtherCAT, CANopen, Modbus, Profinet and DeviceNet, etc. Except the standard built-in programmable sequence function, PHU also offers a variety of optional functions including Datalogger, MPPT (Maximum Power Point Tracking), Solar Array Simulator, AH/WH Meter and Battery Simulation to meet customer's requirements.
Model No
PHU
Condition
New
Manufacturer
Instek
Current
20 A
Voltage
1500 V
Power
10 kW
