Kikusui PFX2512 Charge/Discharge System Cooler NEW

Kikusui PFX2512 Charge/Discharge System Cooler NEW

$8,420
$8,420 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

🎓 Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Maximum voltage: 60.0000 V ／Maximum current: 50.0000 A
  • Capable of seamless charging/discharging (high-speed charging/discharging transfer control)
  • Can accurately measure not only voltage and current but also integrated capacity and electric power
  • Built-in 10,000-step pattern charge/discharge function
  • Supports temperature measurement, enabling temperature monitoring during charging and discharging
  • High speed sampling with maximum 1 ms can be realized
  • The new 6V range allows for high-precision measurements.
  • Safety features include overcharging protection based on voltage, electricity, and temperature.
  • A seismic sensor detects tremors and vibrations and turns off the output to prevent battery damage.
  • LAN included as standard
View full details
More Details
Specifications
Datasheets
Manuals

*In addition to this product, a DC power supply, an electronic load, and a personal computer are required for the system configuration.

PFX2512 PFX2532
Number of outputs 1 ch
Charge current range *1 0.000 A to 50.000 A 0.000 A to 200.000 A
Charge voltage range *1 60 V range 0.000 V to 60.000 V
6 V range 0.000 V to 6.000 V
Discharge current range *1 0.000 A to 50.000 A 0.000 A to 200.000 A
Discharge voltage range *1 *2 60 V range 0.000 V to 60.000 V
6 V range 0.000 V to 6.000 V

*1 The range varies depending on factors such as the connected DC power supplies and electronic loads, the wiring configuration of the system, and the charge/discharge operation. *2 The minimum voltage that can be discharged varies depending on factors such as the connected electronic load models and the wiring configuration.

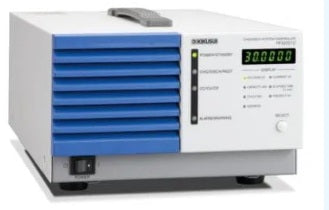

*The image is for reference only. See product specification for details.

Model No

Kikusui

Condition

New

Manufacturer

Kikusui

Kikusui PFX2500 Series
Kikusui PFX2512 Operation Manual
