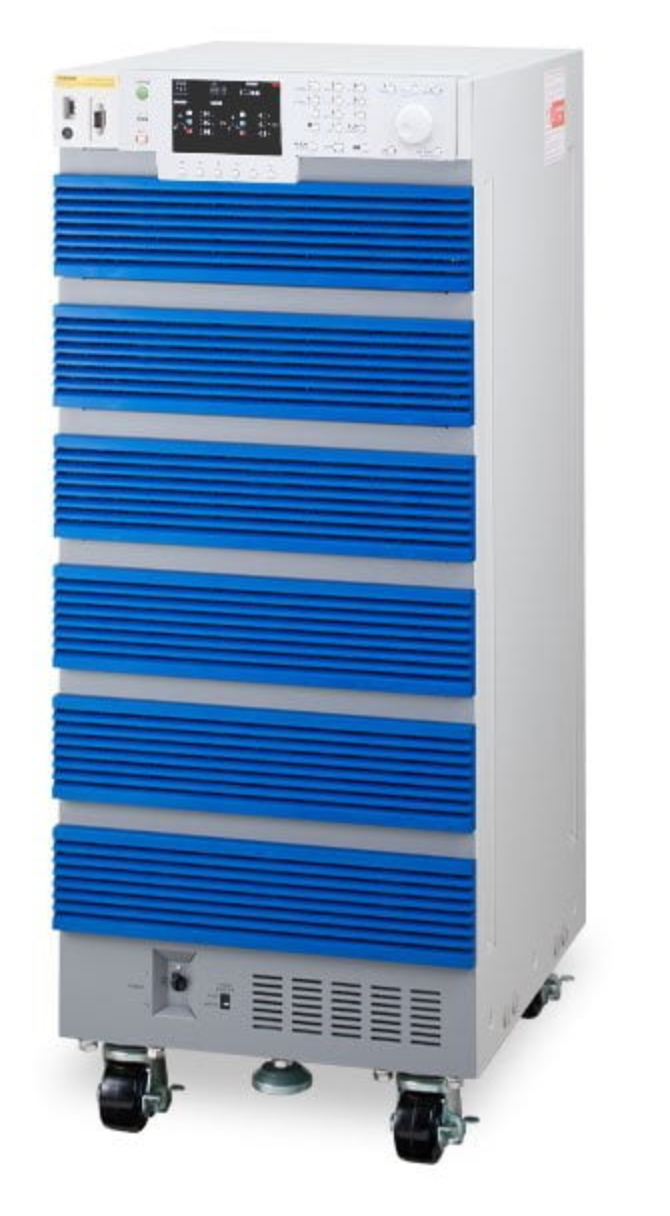

PCR36000WEA2R 3P3W 400V 500HZ Kikusui AC Power Supply New

PCR36000WEA2R 3P3W 400V 500HZ Kikusui AC Power Supply New

$84,900
$84,900 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

🎓 Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Compact size: 6 kVA in 6U (PCR6000WEA2/PCR6000WEA2R)
  • Up to 36 kVA in a Single Unit
  • AC output *1: Single-phase/Single-phase three-wire/Three-phase
  • DC output: +/-, 100% of rated power
  • 100% Regenerative-power capability
    (Only ”R” models (PCR-WEA2R) with 3 phase 200 V input or 3 phase 400 V
    input. Regeneration on premises only.)
  • Mix-and-match parallel operation up to 144 kVA Same model set up is not required.*2
  • Flexible digital interface: LAN (LXI), USB, RS232C, GPIB (option)
  • Power line disturbance simulation features
  • Sequence function
  • External analog, digital control function (standard)
  • Power-saving function
  • Output frequency up to 5 kHz
  • Output rating: AC 0 to 320 Vrms, DC 0 to ±452 V
View full details
More Details
Specifications
Manuals
DC voltage Rating *1 -226 V to +226 V, -452 V to +452 V *2
Setting range *1 -227.5 V to +227.5 V, -455.0 V to +455.0 V
Resolution 0.1 V
Accuracy *9 ±（0.05 % of setting + 0.1 V）
Maximum current *6 10 A / 5 A 20 A / 10 A 30 A / 15 A 60 A / 30 A 120 A / 60 A 180 A / 90 A 240 A / 120 A 300 A / 150 A 360 A / 180 A
Power capacity 1 kW 2 kW 3 kW 6 kW 12 kW 18 kW 24 kW 30 kW 36 kW



Model Single-phase output Single-phase/three-phase switchable model
    PCR1000WEA PCR2000WEA PCR3000WEA2 PCR6000WEA2 PCR12000WEA2 PCR18000WEA2 PCR24000WEA2 PCR30000WEA2 PCR36000WEA2
    PCR6000WEA2R PCR12000WEA2R PCR18000WEA2R PCR24000WEA2R PCR30000WEA2R PCR36000WEA2R
Maximum peak current *11 4 times the maximum output current
Inrush current capacity *3 3 times the rated current (0.07 s) *12
1.4 times the rated current (0.5 s)		 1.4 times the rated current (0.5 s)
Efficiency *10 82 %(TYP) 85 %(TYP)

Model No

PCR36000WEA2R

Condition

New

Manufacturer

Kikusui

Frequency

1500 Hz

PCR WEA UM E4 1
