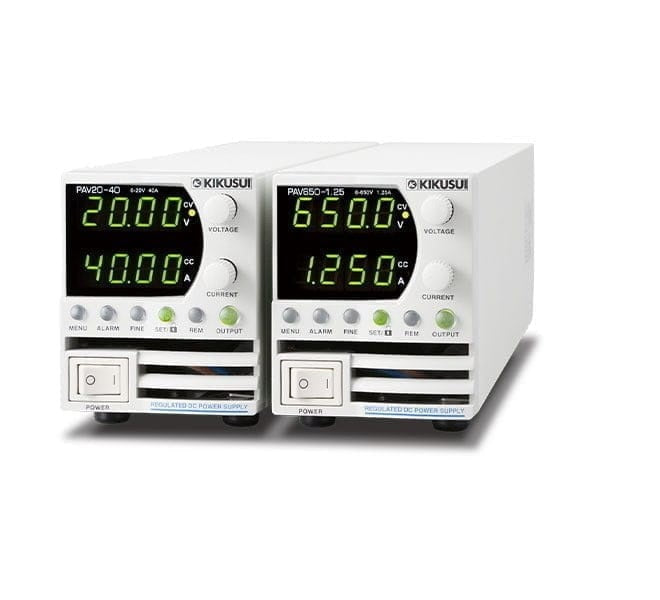

PAV320-0.65 Kikusui DC Power Supply New

PAV320-0.65 Kikusui DC Power Supply New

$2,310
$2,310 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

🎓 Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 2U bench-top type
  • Palm-sized, portable power supply
  • Output power: 200W/400W/600W/800W 4models
  • Output voltage: 10V to 650V 8models
  • USB/RS232C/RS485 as standard interface (*LAN is a factory option)
  • 64 models total (LAN model included)
View full details
More Details
Specifications
Manuals
Item/Model PAV10-20 PAV20-10 PAV36-6 PAV60-3.5 PAV100-2 PAV160-1.3 PAV320-0.65 PAV650-0.32
Rated output voltage *1 10V 20V 36V 60V 100V 160V 320V 650V
Rated output current *2 20A 10A 6A 3.5A 2A 1.3A 0.65A 0.32A
Rated output power 200W 200W 216W 210W 200W 208W 208W 208W



Item/Model PAV10-20 PAV20-10 PAV36-6 PAV60-3.5 PAV100-2 PAV160-1.3 PAV320-0.65 PAV650-0.32
Nominal input rating 100 Vac to 240 Vac continuous input, 50 Hz to 60 Hz, single phase
Input voltage range 85 Vac to 265 Vac
Input frequency range 47 Hz to 63 Hz
Input current (typ) *3 (100 Vac/200 Vac) 2.65A/1.31A 2.62A/1.29A 2.76A/1.37A 2.69A/1.33A 2.55A/1.26A 2.64A/1.30A
Power factor (typ) (100 Vac/200 Vac, at the rated output power) 0.99/0.98
Efficiency (typ) *3 76%/77.5% 77%/79% 79%/80.5% 79%/80.5% 79%/81% 79%/81%
Inrush current (100 Vac/200 Vac) *4 15 A / 30 A or less 25 A / 25 A or less



Item/Model PAV10-20 PAV20-10 PAV36-6 PAV60-3.5 PAV100-2 PAV160-1.3 PAV320-0.65 PAV650-0.32
Maximum line regulation *5 (for the rated output voltage) 0.01% +2mV 0.01%
Maximum load regulation *6 (for the rated output voltage)
Ripple noise *7 20 MHz, p-p 50mV 50mV 50mV 50mV 80mV 100mV 150mV 250mV
5 Hz to 1 MHz, rms 5mV 6mV 6mV 7mV 8mV 10mV 25mV 60mV
Temperature coefficient 30 PPM /°C (after a 30 minute warm-up, for the rated output voltage)
Aging drift *8 (for the rated output voltage) 0.02%
Initial drift *9 (for the rated output voltage) 0.05% +2mV 0.05%
Maximum remote sensing compensation voltage (single line (positive or negative)) 1V 1V 2V 3V 5V 5V
Rise time *10 15ms 30ms 30ms 50ms 50ms 110ms 170ms 170ms
Fall time At full load *10 12ms 25ms 30ms 40ms 50ms 180ms 270ms 270ms
Td (typ) *11 210ms 250ms 320ms 380ms 1200ms —
No load a *12 40ms 65ms 85ms 100ms 250ms —
No load b *13 200ms 200ms 290ms 310ms 1100ms 2000ms 2500ms 3000ms
Transient response time *14 1 ms or less 2 ms or less
Output hold time (typ) *15 15ms 16ms 16ms 16ms 15ms



Item/Model PAV10-20 PAV20-10 PAV36-6 PAV60-3.5 PAV100-2 PAV160-1.3 PAV320-0.65 PAV650-0.32
Maximum line regulation *5 (at the rated output current) 0.01% +2mA 0.02%
Maximum load regulation *16 (at the rated output current) 0.01% +5mA 0.09% 0.15%
Change in the load due to the temperature drift of internal components (at the rated output current) 0.05% or less (for 30 minutes after the load conditions are changed)
Ripple noise *17 (5 Hz to 1 MHz, rms) 25mA 15mA 8mA 4mA 3mA 1.2mA 0.8mA 0.5mA
Temperature coefficient 100PPM/℃（30分ウォームアップ後、定格出力電流に対して）
Aging drift *8 (at the rated output current) 0.05%
Initial drift *9 (at the rated output current) 0.1%



Model No

PAV320-0.65

Condition

New

Manufacturer

Kikusui

Current

0.65 A

Voltage

320 V

Power

200 W
