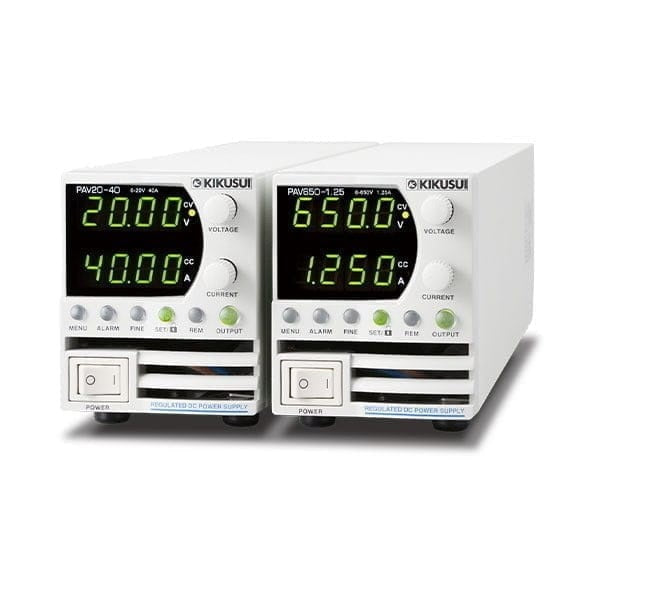

Features:

  • 2U bench-top type
  • Palm-sized, portable power supply
  • Output power: 200W/400W/600W/800W 4models
  • Output voltage: 10V to 650V 8models
  • USB/RS232C/RS485 as standard interface (*LAN is a factory option)
  • 64 models total (LAN model included)
View full details
More Details
Specifications
Manuals
Item/Model PAV10-72 PAV20-40 PAV36-24 PAV60-14 PAV100-8 PAV160-5 PAV320-2.5 PAV650-1.25
Maximum line regulation *7 (for the rated output voltage) 0.01% +2mV 0.01%
Maximum load regulation *8 (for the rated output voltage)
Ripple noise *9 20 MHz, p-p 50mV 50mV 50mV 60mV 80mV 100mV 150mV 250mV
5 Hz to 1 MHz, rms 5mV 5mV 5mV 12mV 15mV 10mV 30mV 60mV
Temperature coefficient 30 PPM /°C (after a 30 minute warm-up, for the rated output voltage)
Aging drift *10 (for the rated output voltage) 0.05% 0.02%
Initial drift *11 (for the rated output voltage) 0.05% +2mV 0.05%
Maximum remote sensing compensation voltage (single line (positive or negative)) 1V 1V 2V 3V 5V 5V
Rise time *12 50ms 50ms 50ms 50ms 100ms 45ms 55ms 55ms
Fall time At full load *12 25ms 25ms 25ms 25ms 80ms 55ms 65ms 65ms
Td（typ）*13 285ms 425ms 450ms 570ms 1370ms —
No load a *14 65ms 110ms 155ms 175ms 375ms —
No load b *15 280ms 470ms 470ms 500ms 1200ms 2000ms 2500ms 3000ms
Transient response time *16 1 ms or less 2 ms or less
Output hold time (typ) *17 10ms 13ms 11.5ms



Item/Model PAV10-72 PAV20-40 PAV36-24 PAV60-14 PAV100-8 PAV160-5 PAV320-2.5 PAV650-1.25
Maximum line regulation *7 (at the rated output current) 0.01% +2mA 0.02%
Maximum load regulation *18 (at the rated output current) 0.01% +5mA 0.09%
Change in the load due to the temperature drift of internal components (at the rated output current) 0.15% or less 0.1% or less 0.05% or less
(for 30 minutes after the load conditions are changed)
Ripple noise *19 (5 Hz to 1 MHz, rms) 180mA 100mA 31mA 28mA 12mA 2mA 1.5mA 1mA
Temperature coefficient 100PPM/℃（30分ウォームアップ後、定格出力電流に対して）
Aging drift *10 (at the rated output current) 0.05%
Initial drift *11 (at the rated output current) 0.3% 0.1%


Item/Model PAV10-72 PAV20-40 PAV36-24 PAV60-14 PAV100-8 PAV160-5 PAV320-2.5 PAV650-1.25
Rated output voltage *1 10V 20V 36V 60V 100V 160V 320V 650V
Rated output current *2 100Vac ≦ Vin*3
Ta*4 ≦ 50℃		 72A 40A 24A 14A 8A 5A 2.5A 1.25A
Vin<100Vac
Ta ≦ 40℃		 72A 40A 24A 14A 8A 5A 2.5A 1.25A
Vin<100Vac
40℃ <Ta ≦ 50℃		 66A 36A 20A 12.5A 7.5A 4.7A 2.35A 1.15A
Rated output power 100Vac ≦ Vin
Ta ≦ 50℃		 720W 800W 864W 840W 800W 800W 800W 812.5W
Vin<100Vac
Ta ≦ 40℃		 720W 800W 864W 840W 800W 800W 800W 812.5W
Vin<100Vac
40℃ <Ta ≦ 50℃		 660W 720W 720W 750W 750W 752W 752W 747.5W

Model No

PAV20-40

Condition

New

Manufacturer

Kikusui

Current

40 A

Voltage

20 V

Power

800 W
