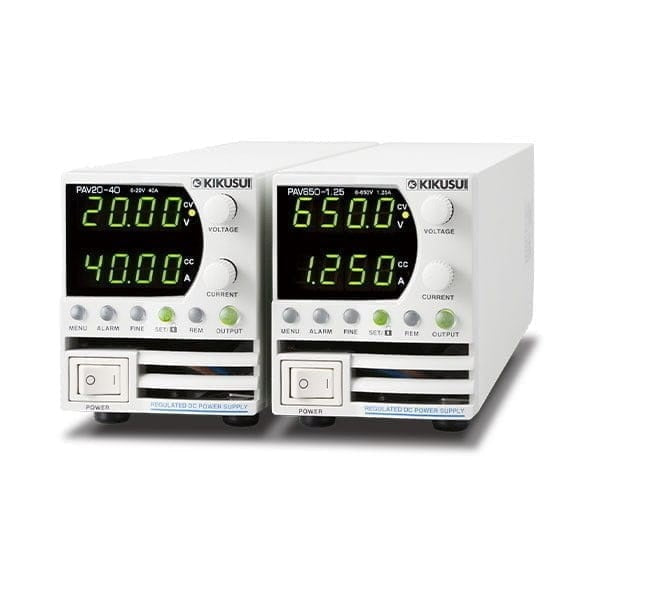

PAV20-30 WITH LAN Kikusui DC Power Supply New

PAV20-30 WITH LAN Kikusui DC Power Supply New

$5,610
$5,610 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

🎓 Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 2U bench-top type
  • Palm-sized, portable power supply
  • Output power: 200W/400W/600W/800W 4models
  • Output voltage: 10V to 650V 8models
  • USB/RS232C/RS485 as standard interface (*LAN is a factory option)
  • 64 models total (LAN model included)
View full details
More Details
Specifications
Manuals
Item/Model PAV10-60 PAV20-30 PAV36-18 PAV60-10 PAV100-6 PAV160-4 PAV320-2 PAV650-1
Rated output voltage *1 10V 20V 36V 60V 100V 160V 320V 650V
Rated output current *2 60A 30A 18A 10A 6A 4A 2A 1A
Rated output power 600W 600W 648W 600W 600W 640W 640W 650W



Item/Model PAV10-60 PAV20-30 PAV36-18 PAV60-10 PAV100-6 PAV160-4 PAV320-2 PAV650-1
Maximum line regulation *5 (at the rated output current) 0.01% +2mA 0.02%
Maximum load regulation *16 (at the rated output current) 0.01% +5mA 0.09%
Change in the load due to the temperature drift of internal components (at the rated output current) 0.15% or less (for 30 minutes after the load conditions are changed) 0.05% or less (for 30 minutes after the load conditions are changed)
Ripple noise *17 (5 Hz to 1 MHz, rms) 150mA 75mA 25mA 8mA 5mA 2mA 1.5mA 1mA
Temperature coefficient 100PPM/℃（30分ウォームアップ後、定格出力電流に対して）
Aging drift *8 (at the rated output current) 0.05%
Initial drift *9 (at the rated output current) 0.3% 0.15% 0.1% 0.1%



Item/Model PAV10-60 PAV20-30 PAV36-18 PAV60-10 PAV100-6 PAV160-4 PAV320-2 PAV650-1
Maximum line regulation *5 (for the rated output voltage) 0.01% +2mV 0.01%
Maximum load regulation *6 (for the rated output voltage)
Ripple noise *7 20 MHz, p-p 50mV 50mV 50mV 50mV 80mV 100mV 150mV 250mV
5 Hz to 1 MHz, rms 5mV 5mV 5mV 12mV 15mV 10mV 30mV 60mV
Temperature coefficient 30 PPM /°C (after a 30 minute warm-up, for the rated output voltage)
Aging drift *8 (for the rated output voltage) 0.05% +2mV 0.02%
Initial drift *9 (for the rated output voltage) 0.05% +2 mV 0.05%
Maximum remote sensing compensation voltage (single line (positive or negative)) 1V 1V 2V 3V 5V 5V
Rise time *10 50ms 50ms 50ms 50ms 100ms 55ms 75ms 75ms
Fall time At full load *10 25ms 25ms 25ms 25ms 80ms 65ms 85ms 85ms
Td (typ) *11 285ms 425ms 450ms 570ms 1370ms —
No load a *12 65ms 110ms 155ms 175ms 375ms —
No load b *13 280ms 470ms 470ms 500ms 1200ms 2000ms 2500ms 3000ms
Transient response time *14 1 ms or less 2 ms or less
Output hold time (typ) *15 15ms 20ms 16ms 14ms



Item/Model PAV10-60 PAV20-30 PAV36-18 PAV60-10 PAV100-6 PAV160-4 PAV320-2 PAV650-1
Nominal input rating 100 Vac to 240 Vac continuous input, 50 Hz to 60 Hz, single phase
Input voltage range 85 Vac to 265 Vac
Input frequency range 47 Hz to 63 Hz
Input current (typ) *3 (100 Vac/200 Vac) 7.48A/3.69A 7.22A/3.56A 7.70A/3.80A 7.13A/3.52A 7.13A/3.52A 7.47A/3.69A 7.59A/3.75A
Power factor (typ) (100 Vac/200 Vac, at the rated output power) 0.99/0.98
Efficiency (typ) *3 81%/83% 84%/86% 85%/87% 85%/87% 85%/87% 86.5%/88.5% 87%/88.5% 86.5%/88.5%
Inrush current (100 Vac/200 Vac) *4 30 A / 30 A or less 30 A / 30 A or less

Model No

PAV20-30

Condition

New

Manufacturer

Kikusui

Current

30 A

Voltage

20 V

Power

600 W
