The PAV series is a compact, high power density, high performance constant voltage (CV) / constant current (CC) variable switching power supply. The PAV consists of 64 models total*1 with 4 types of maximum power outputs at 200 W, 400 W, 600 W and 800 W and output voltages from 10 V through 650 V. All models are standardized to a same size with 2U high (approximately 88 mm) and have high power density for bench-top use. The PAV series allows sequence settings with an embedded CPU as well as analog control.
Parallel operation (up to 6 units)*2 and synchronized operation features are employed to allow extended output current. The PAV series is equipped standard with USB, RS232C and RS485 as communication interfaces which are essential for system upgrades. LAN*3 interface is also available as an option. A harmonic current control circuit is embedded with a power factor of 0.99 to take power environment into account.
| Item/Model | PAV10-72 | PAV20-40 | PAV36-24 | PAV60-14 | PAV100-8 | PAV160-5 | PAV320-2.5 | PAV650-1.25 |
|---|---|---|---|---|---|---|---|---|
| Nominal input rating | 100 Vac to 240 Vac continuous input, 50 Hz to 60 Hz, single phase | |||||||
| Input voltage range | 85 Vac to 265 Vac | |||||||
| Input frequency range | 47 Hz to 63 Hz | |||||||
| Input current (typ) *5 (100 Vac/200 Vac) | 9.00A/4.45A | 9.65A/4.75A | 10.30A/5.10A | 10.00A/4.95A | 9.50A/4.70A | 9.34A/4.61A | 9.34A/4.59A | 9.43A/4.66A |
| Power factor (typ) (100 Vac/200 Vac, at the rated output power) | 0.99/0.98 | |||||||
| Efficiency (typ) *5 | 81%/83% | 84%/86% | 85%/87% | 85%/87% | 85%/87% | 86.5%/88.5% | 86.5%/89% | 87%/89% |
| Inrush current(100 Vac/200 Vac) *6 | 30 A / 30 A or less | |||||||
| Item/Model | PAV10-72 | PAV20-40 | PAV36-24 | PAV60-14 | PAV100-8 | PAV160-5 | PAV320-2.5 | PAV650-1.25 |
|---|---|---|---|---|---|---|---|---|
| Maximum line regulation *7 (at the rated output current) | 0.01% +2mA | 0.02% | ||||||
| Maximum load regulation *18 (at the rated output current) | 0.01% +5mA | 0.09% | ||||||
| Change in the load due to the temperature drift of internal components (at the rated output current) | 0.15% or less | 0.1% or less | 0.05% or less | |||||
| (for 30 minutes after the load conditions are changed) | ||||||||
| Ripple noise *19 (5 Hz to 1 MHz, rms) | 180mA | 100mA | 31mA | 28mA | 12mA | 2mA | 1.5mA | 1mA |
| Temperature coefficient | 100PPM/℃（30分ウォームアップ後、定格出力電流に対して） | |||||||
| Aging drift *10 (at the rated output current) | 0.05% | |||||||
| Initial drift *11 (at the rated output current) | 0.3% | 0.1% | ||||||

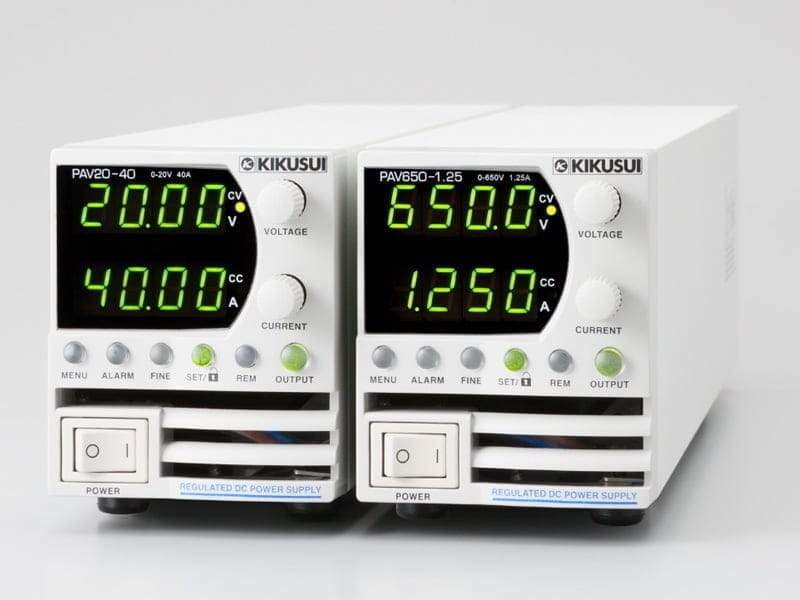

*The image is for reference only. See product specification for details.
