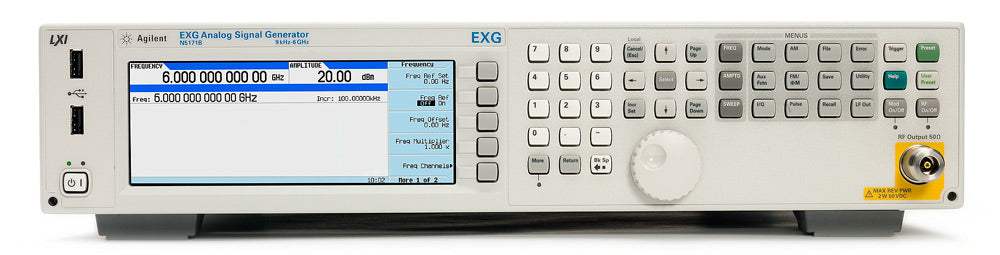

N5171B Agilent RF Generator Used

N5171B Agilent RF Generator Used

Shipping calculated at checkout.
Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • 9 kHz to 1, 3 or 6 GHz
  • +21 dBm specified power to 3 GHz with electronic attenuator
  • < 900-µs simultaneous switching of frequency and power
  • <0.1 dB level repeatability
  • AM, FM, ØM, and narrow pulse
  • Pulse train generator
  • 10 MHz multifunction generator and LF out
  • Digital step and list sweep modes
  • 1000BaseT LAN, LXI, USB 2.0, and GPIB
  • SCPI, IVI-COM, MATLAB drivers
  • Backward compatible with all ESG, MXG, PSG, and 8648x signal generators
  • Agilent USB power sensor compatible with embedded display and SCPI control
  • Maximize yield with outstanding hardware performance
  • Confidently test components with excellent level accuracy and repeatability
  • Compensate for test system losses with industry-leading output power
  • Maximize throughput with fast switching speed
  • Shrink your test stand with two rack-unit height
  • Get the performance and capabilities you need today and easily upgrade later
  • Maximize resources with low cost of ownership
  • Increase uptime with high mean time between failures (MTBF) based on first-generation MXG track record
  • Minimize downtime and expenses with self-maintenance strategy and low-cost repairs
Share on
View full details
More Details
Specifications
Options
Datasheets
Manuals

To help you achieve faster throughput and greater uptime, the Agilent N5171B EXG is optimized for manufacturing test with the signals you’ll need for basic parametric testing of components and calibration of receivers.

Model No

N5171B

Condition

Used

Manufacturer

Agilent

Frequency

3 GHz

12

LO IN/OUT FOR PHASE COHERENCY

99

Expanded License Key Upgradability

1EA

High Output Power

1EL

Differential I/Q outputs

250

Waveform license 50-pack1

503

9 kHz to 3 GHz Frequency Range

506

9 kHz to 6 GHz Frequency Range

653

ARB Baseband Generator (60 MHz RF bandwidth , 32 MSa)

655

UPGRADE BASEBAND GENERATOR FROM 60 TO 120 MHZ RF BANDWIDTH

660

UPGRADE BASEBAND GENERATOR WITH REAL-TIME CAPABILITY

UNT

Amplitude modulation

UNV

Enhanced dynamic range

UNW

On/off ratio > 80 dB , typical

Agilent N5171B N5172B EXG X Series
Agilent N5171B N5172B N5173B EXG N5181B N5182B N5183B MXG X-Series Users Guide
