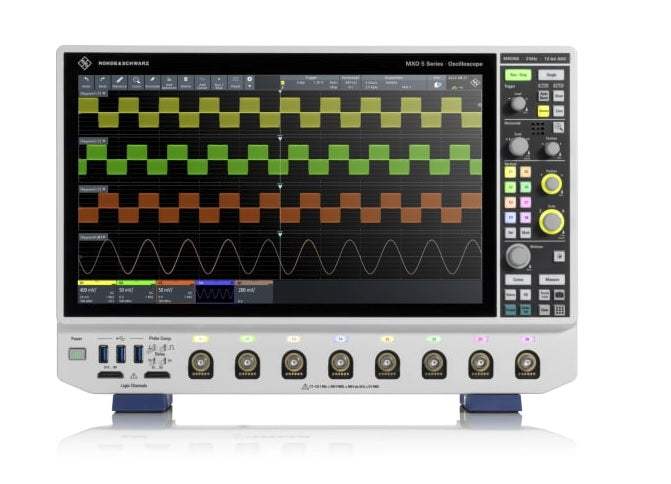

MXO58-PRO Rohde & Schwarz Mixed Signal Oscilloscope New

MXO5-K36 frequency response analysis option

Quickly perform low-frequency response analysis with the R&S MXO5-K36 frequency response analysis (FRA) option. Easily characterize the frequency response of various electronic devices, including passive filters and amplifier circuits. Precisely measure the control loop response (CLR) and power supply rejection ratio (PSRR) in switch mode power supplies.

The FRA option leverages the oscilloscope's built-in waveform generator to create stimulus signals from 10 mHz to 100 MHz. By measuring the stimulus signal to output signal ratio for the device under test at each test frequency, the oscilloscope accurately plots logarithmic gain and phase for valuable insights into your device's behavior.

The MXO5-K36 has user-configurable profiles of the amplitude output level from the generator. This feature optimizes the signal-to-noise ratio (SNR) at different frequency ranges, ensuring high-quality CLR and PSRR measurements.

Serial bus analysis

This package includes the following:

• MXO5-K510 - Low speed serial triggering and decoding (I2C/SPI/QuadSPI/UART/RS-232/RS-422/RS-485)
• MXO5-K520 - Automotive serial triggering and decoding (CAN/CAN FD/CAN XL/LIN)
• MXO5-K530 - Aerospace protocols triggering and decoding (ARINC429, MIL-STD-1553)
• MXO5-K550 - MIPI low speed protocols triggering and decoding (SPMI)
• MXO5-K560 - Automotive Ethernet protocols triggering and decoding (10BASE-T1S, 100BASE-T1)

Experience a breakthrough in protocol analysis with the MXO 5 series. Unlike conventional oscilloscopes, Rohde’s dual-path protocol analysis revolutionizes the acquisition and decoding of protocol packets. Dual-path protocol analysis decouples instrument sample rates for the waveform path and automatically uses the required sample rate for the decoding path. Even with very slow sample rates or under-sampled waveforms, the protocol data is correctly decoded for decoding on alias waveforms and even longer capture times.

Condense or expand the decoded layer with the vertical and horizontal control knobs or the intuitive touchscreen. Overlay the decoded bus on the captured signal and/or display it in a separate window for greater flexibility.

Unleash the power of protocol analysis innovation with MXO 5 series oscilloscopes. Experience dual-path protocol analysis, capture more packets with deep memory, and customize your display to enhance your analysis workflow. Stay ahead of the curve and optimize your serial bus analysis capabilities today.

MXO5 general information

12-bit ADC with 18-bit architecture for HD mode

The R&S MXO 5 Series oscilloscopes incorporate a 12-bit A/D converter on all input channels. The 4096 quantization levels deliver precise vertical resolution at all sampling rates for uncompromising capture of signal details. The 18-bit architecture with HD mode also enhances the ADC resolution. The R&S MXO 5 Series has up to eight channels with 12-bit precision and an uncompromised sampling rate.

Quickly and reliably detect sporadic signal faults

The high acquisition rate greatly improves the probability of finding rare and sporadic events that other oscilloscopes cannot. The R&S MXO 5 can confidently capture all events even when the triggers are seemingly too close.

With over 4.5 million waveforms/s, the R&S MXO 5 Series oscilloscope has the lowest blind time thanks to a trigger rearm of just 21 ns.

Low noise with vertical sensitivity down to 500 µV/div

The R&S MXO 5 Series oscilloscope has outstanding sensitivity down to 500 µV/div without any unexpected reductions in bandwidth. The offset of ±2 V on 50 ? coupling and ±5 V on 1 M? coupling lets users easily place the signal at the center of the screen to examine DC noise and ripple. The oscilloscope must have low noise levels to accurately quantify small signals.

World’s most sensitive and hysteresis-adjustable trigger

The R&S MXO 5 Series digital trigger is up to 10000 times more sensitive than competing trigger systems. Triggering sensitivity lets users isolate difficult-to-find, small physical layer anomalies in the presence of large signals, speeding up debugging and troubleshooting. Users have full control of the trigger hysteresis settings for added flexibility with desired trigger noise suppression.

Pristine RF measurements, now with more capabilities

Improve overall RF insights with up to four highly capable, simultaneous spectrum displays. The powerful MXO-EP ASIC architecture and additional processing capabilities give the oscilloscopes ultrafast 45000 FFT/s on up to four simultaneous spectrum displays.

The superior RF performance outshines all oscilloscopes in its class. The deep record length and spectral control independent of the time domain waveforms make RF analysis a breeze. The wide frequency range and low noise density generate a truly usable spectral trace for RF insight.

As with a spectrum analyzer, spectral traces are easy to configure along with navigation to presentations of various spectral results such as max. and min. hold, or even an average trace to clean up noise. The R&S MXO 5 also has log-log scale presentations to help observe EMI-related spectral events in wide frequency ranges.
