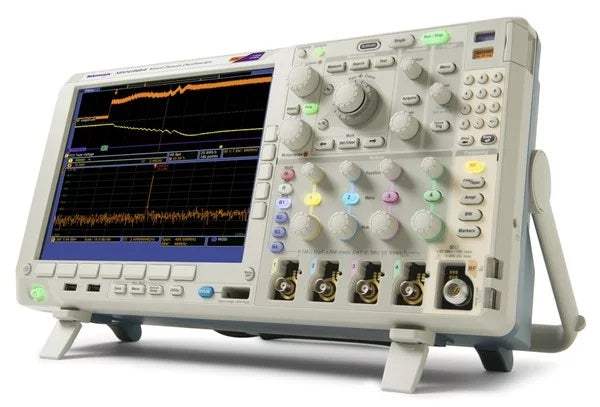

MSO5054B Tektronix Mixed Signal Oscilloscope Used

MSO5054B Tektronix Mixed Signal Oscilloscope Used

Check Pricing
Request a Quote

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Select option

Features:

  • 350MHz bandwidth, 6.25GS/s sampling rate, 62.5Mpoints standard record length
  • Greater than 500,000 waveforms/s capture rate
  • 12bit ADC resolution
  • USB host (7 port), USB 3.0 device (1 port), LAN (10/100/1000 Base-T), display port, DVI-D, VGA
  • Remotely view and control the oscilloscope over a network connection through a standard web browser
  • One 10Mohm passive voltage probe with less than 4pF capacitive loading per channel
  • 12.2in (309mm) H x 17.9in (454mm) W x 8.0in (204mm) D size
Share on
View full details
More Details
Specifications
Datasheets
MSO54B:5-BW-350 is a 5 Series B MSO mixed signal oscilloscope. The 5 Series MSO offers better visibility into complex systems by offering four channel model with a large 15.6-inch high-definition (1,920 x 1,080) display. Suitable for applications such as embedded systems, three-phase power electronics, automotive electronics, power supply design, and DC-to-DC power converters.

Model No

MSO5054B

Condition

Used

Manufacturer

Tektronix

Tektronics 5 Series B MSO
