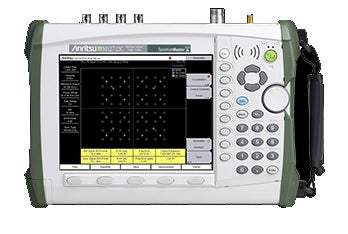

The Anritsu MS2722C is a high performance handheld spectrum analyzer covering 9 kHz to 9 GHz, part of the Spectrum Master line. It is built to give wireless professionals the performance needed for demanding measurements in harsh RF and physical environments, packaged in a field-portable instrument measuring 315 mm x 211 mm x 77 mm (12.4 in x 8.3 in x 3.0 in) and weighing 3.5 kg (7.8 lb).
Typical work for this analyzer spans spectrum monitoring, broadcast proofing, interference analysis, RF and microwave measurements, regulatory compliance, and Wi-Fi and wireless network measurements. Standard smart measurements include field strength, occupied bandwidth, channel power, ACPR, carrier-to-interference ratio (C/I), and emission mask.
ValueTronics stocks and holds its own inventory in a 20,000-square-foot secure warehouse at 1675 Cambridge Drive in Elgin, Illinois. Operating in test and measurement since 1992, we keep instruments like this Spectrum Master on hand for fast fulfillment; every pre-owned unit is inspected and functionally verified by our technicians before it ships, while new units ship factory-sealed exactly as received from the manufacturer.
| Specification | Value |
|---|---|
| Frequency | |
| Frequency Range | 9 kHz to 9 GHz (tunable to 0 Hz), Preamp 100 kHz to 9 GHz |
| Tuning Resolution | 1 Hz |
| Frequency Reference Aging | ±1.0 ppm/10 years |
| Frequency Reference Accuracy | ±0.3 ppm (25 °C ±25 °C) + aging |
| Auto-sensing External Frequency Reference | 1, 1.2288, 1.544, 2.048, 2.4576, 4.8, 4.9152, 5, 9.8304, 10, 13, 19.6608 MHz |
| Frequency Span | 10 Hz to 9 GHz including zero span |
| Sweep Time | 10 µs to 600 seconds in zero span |
| Sweep Time Accuracy | ±2 % in zero span |
| Bandwidth (Performance Sweep Mode) | |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz in 1–3 sequence ±10 % (–3 dB bandwidth) |
| Video Bandwidth (VBW) | 1 Hz to 10 MHz in 1–3 sequence (–3 dB bandwidth) |
| RBW with Quasi-Peak Detection | 200 Hz, 9 kHz, 120 kHz (–6 dB bandwidth) |
| VBW with Quasi-Peak Detection | Auto VBW is On, RBW/VBW = 1 |
| Spectral Purity — SSB Phase Noise at 1 GHz | |
| 10 kHz offset from carrier | –100 dBc/Hz (–104 dBc/Hz typical) |
| 100 kHz offset from carrier | –102 dBc/Hz (–107 dBc/Hz typical) |
| 1 MHz offset from carrier | –107 dBc/Hz (–114 dBc/Hz typical) |
| 10 MHz offset from carrier | –120 dBc/Hz (–129 dBc/Hz typical) |
| Amplitude Ranges | |
| Dynamic Range | > 104 dB @ 2.4 GHz, 2/3 (TOI-DANL) in 1 Hz RBW |
| Measurement Range | DANL to +30 dBm |
| Display Range | 1 to 15 dB/div in 1 dB steps, ten divisions displayed |
| Reference Level Range | –150 dBm to +30 dBm |
| Attenuator Resolution | 0 to 65 dB, 5 dB steps |
| Amplitude Units | Log Scale Modes: dBm, dBV, dBmv, dBµV; Linear Scale Modes: nV, µV, mV, V, kV, nW, µW, mW, W, kW |
| Maximum Continuous Input | +30 dBm Peak, ±50 VDC (≥10 dB Attn); +23 dBm Peak, ±50 VDC (< 10 dB Attn); +13 dBm Peak, ±50 VDC (Preamp On) |
| Amplitude Accuracy (single sine wave input < Ref level, > DANL, auto attenuation, Performance Sweep Mode) | |
| 20 °C to 30 °C after 30 minute warm-up | Typical: ±0.5 dB, 100 kHz to 9 GHz; Maximum: ±1.3 dB, 100 kHz to 9 GHz |
| –10 °C to 50 °C after 60 minute warm-up | Add ±1.0 dB, 100 kHz to 9 GHz |
| Displayed Average Noise Level (DANL) in 1 Hz RBW, 0 dB attenuation | |
| 10 MHz to 4 GHz, Preamp Off | –141 dBm |
| 10 MHz to 4 GHz, Preamp On | –160 dBm |
| > 4 GHz to 9 GHz, Preamp Off | –134 dBm |
| > 4 GHz to 9 GHz, Preamp On | –156 dBm |
| Third-Order Intercept (TOI) (–20 dBm tones 100 kHz apart, –20 dBm Ref level, 0 dB input attenuation, Preamp Off) | |
| 2.4 GHz | +15 dBm |
| 50 MHz to 9 GHz | +20 dBm typical |
| P1 dB | |
| < 4 GHz | +5 dBm typical |
| 4 GHz to 9 GHz | +12 dBm typical |
| Second Harmonic Distortion | |
| 50 MHz | –54 dBc |
| < 4 GHz | –60 dBc typical |
| > 4 GHz | –75 dBc typical |
| VSWR (> 10 dB input attenuation) | |
| < 9 GHz | 1:5:1 typical |
| Spurs | |
| Residual Spurs, Preamp Off (RF input terminated) | –90 dBm, 9 kHz to 9 GHz |
| Residual Spurs, Preamp On (RF input terminated) | –100 dBm, 1 MHz to 9 GHz |
| Input-Related Spurs (–30 dBm input, span < 1.7 GHz) | –60 dBc, –70 dBc typical |
| Display | |
| Size | 8.4 in |
| Resolution | 800 x 600 |
| Battery | |
| Type | Li-Ion |
| Battery Operation | 2.5 hours, typical |
| Memory | |
| Internal Trace/Setup Memory | > 13,000 traces |
| External Trace/Setup Memory | Limited by size of USB Flash drive |
| Connectors | |
| RF In | Type N, male, 50 Ω, Maximum Input +30 dBm, ±50 VDC |
| GPS | SMA Female |
| External Power | 5.5 mm barrel connector, 12 to 15 VDC, < 5.0 Amps |
| LAN Connection | RJ48C, 10/100 Mbps, Connect to PC or LAN for Remote Access |
| USB Interface (2) | Type A, Connect Flash Drive and Power Sensor |
| USB Interface | 5-pin mini-B, Connect to PC for data transfer |
| Headset Jack | 2.5 mm 3-wire headset jack |
| External Reference In | BNC, female, 50 Ω, Maximum Input –10 dBm to +10 dBm |
| External Reference Out | BNC, female, 50 Ω, 10 MHz |
| External Trigger | BNC, female, 50 Ω, Maximum Input ±5 VDC |
| IF Out | BNC, female, 50 Ω, 140 MHz |
| Electromagnetic Compatibility | |
| European Union | CE Mark, EMC Directive 89/336/EEC, 92/31/EEC, 93/68/EEC and Low Voltage Directive 73/23/EEC, 93/68/EEC |
| Australia and New Zealand | C-tick N274 |
| Interference | EN 61326-1 |
| Emissions | EN 55011 |
| Immunity | EN 61000-4-2/-3/-4/-5/-6/-11 |
| Safety | |
| Safety Class | EN 61010-1 Class 1 |
| Product Safety | IEC 60950-1 when used with Company supplied Power Supply |
| Environmental | |
| Operating Temperature | –10 °C to 55 °C |
| Maximum Humidity | 85% |
| Shock | MIL-PRF-28800F Class 2 |
| Storage | –51 °C to 71 °C |
| Altitude | 4600 meters, operating and non-operating |
| Size and Weight | |
| Size | 315 mm x 211 mm x 77 mm (12.4 in x 8.3 in x 3.0 in) |
| Weight | 3.5 kg (7.8 lb) |
Important: Maximum continuous input: +30 dBm peak, ±50 VDC (≥10 dB attenuation); +23 dBm peak, ±50 VDC (<10 dB attenuation); +13 dBm peak, ±50 VDC (preamp on).
Important: The Secure Data Operation Option (Option 7) cannot be switched between secure and non-secure operation by the user once configured for secure data operation; setup and measurement information is stored only to the external USB memory location.
Important: The High Accuracy Power Meter Option (Option 19) requires an external USB Power Sensor (such as the PSN50, MA24105A, MA24106A, MA24108A, MA24118A, or MA24126A), which is ordered separately.
Important: The GPS Receiver Option (Option 31) requires a GPS Antenna, P/N 2000-1528-R or 2000-1652-R; Anritsu GPS antennas 2000-1528-R and 2000-1652-R require 5 VDC.
Important: I/Q Waveform Capture (Option 24) requires Option 9; CDMA and EV-DO Over-the-Air (OTA) Measurements require Option 9 and Option 31.
Important: Recommended calibration cycle is 12 months.
This pre-owned unit is inspected and functionally verified in-house before it ships and is backed by our pre-owned warranty. To confirm its exact condition, firmware revision, installed options, or included accessories for your application before ordering, contact our Test Architects.
ValueTronics supplies both new and used test and measurement equipment. New units ship factory-sealed, exactly as received from the manufacturer; every used unit is inspected and functionally verified in-house at our 20,000 sq ft secure facility in Elgin, Illinois before it ships. Our Test Architects can help you select the condition, calibration, and configuration that fit your application.
Please review the Manufacturer's Data Sheet to verify published specifications. Feedback on this webpage is always welcome — please reach out to your Test Architect at any time for questions or concerns. Thank you, we truly appreciate you being our customer.
