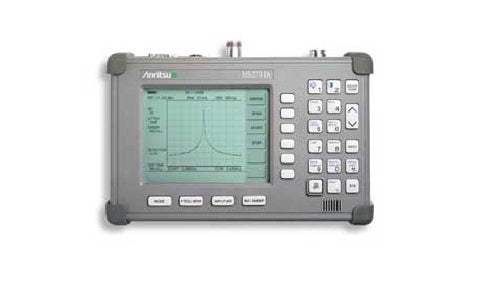

The Anritsu MS2711A is a handheld spectrum analyzer built for field environments and applications requiring mobility. It pairs a rugged, ultra-lightweight, battery-operated design with synthesizer-based measurement, providing complete freedom from AC/DC power requirements so users can locate, identify, record, and solve communication-system problems quickly. Covering the 100 kHz to 3.0 GHz frequency range, it is positioned for engineers and technicians who install, maintain, or troubleshoot modern wireless communication systems in the field without sacrificing measurement accuracy.
The MS2711A is suited to radio communications work that involves monitoring signals and sources of interference in field environments. Its stated testing capabilities include detection of signal interference, monitoring of selected and unselected transmissions, detection of unlicensed transmitters and undesired emissions, protection against concealed transmitters, and coverage/signal-strength mapping. It is also applied to field alignment of small dish antennas, site-survey signal mapping for WLAN and WPBX networks, spurious-emission monitoring, occupied-bandwidth measurement, and on-site system verification across cellular, PCS, mobile data, mobile satellite, fixed wireless, and SMR applications.
ValueTronics supports the MS2711A from its own 20,000 square-foot secure warehouse at 1675 Cambridge Drive in Elgin, Illinois, where we stock and hold our own inventory. Every pre-owned unit is inspected and functionally verified in-house before it ships, while new units ship factory-sealed exactly as received from the manufacturer. Holding our own stock lets buyers source this analyzer with confidence in both availability and verified condition.
Anritsu Corporation acquired the Wiltron Company in 1990 and rebranded the Wiltron name to Anritsu in 1997, consolidating its microwave and field-measurement instrument operations under a single brand.
| Specification | Value |
|---|---|
| Frequency | |
| Frequency Range | 100 kHz to 3.0 GHz |
| Frequency Reference Aging | ± 1 ppm/yr |
| Frequency Reference Accuracy | ± 2 ppm |
| Frequency Span | 100 kHz to 3.0 GHz in 1,2,5 step selections in auto mode, plus zero span |
| Sweep Time | ≥ 650 ms full span; 400 ms zero span |
| SSB Phase Noise | –74 dBc/Hz, 30 kHz offset |
| Spurious Responses (Input Related) | < –45 dBc |
| Spurious Residual Responses | < –96 dBm |
| Resolution Bandwidths | |
| Selections | 10 kHz, 30 kHz, 100 kHz and 1 MHz |
| Accuracy | ± 20% |
| Selectivity (Video Bandwidth) | 100 Hz to 300 kHz in 1-3 sequence |
| Amplitude | |
| Measurement Range | +20 to –97 dBm |
| Displayed Average Noise Level | ≤ –97 dBm (full span) |
| Dynamic Range | > 65 dB |
| Amplitude Accuracy | ± 1.5 dB |
| Total Level Accuracy | ± 2 dB |
| Amplitude Units (Log Scale Mode) | dBm, dBV, dBmV, dBµV |
| Display Range | 2 to 15 dB/div in 1 dB steps. Ten divisions displayed |
| Attenuator Range | 0 to 50 dB, selected manually or automatically coupled to the reference level |
| Attenuator Resolution | 10 dB steps |
| Reference Residual Response | ≤ –95 dBm |
| Harmonic Distortion | < –45 dBc |
| Intermodulation Distortion | < –45 dBc |
| Other Input Related Spurious | < –45 dBc |
| Display | |
| Type | Monochrome LCD |
| Resolution | 640 x 480 |
| Marker Modes | 4 Markers; standard, delta, marker to peak and marker to center |
| Memory | |
| Trace Storage | 200 stored traces |
| Setup Storage | 10 test setups |
| Displayed Traces | 2 |
| Inputs | |
| RF Input | 50-Ohms |
| Connector | Type N Female |
| Maximum Input Level | + 20 dBm, + 50 Vdc |
| RF Input VSWR | 2.0:1 |
| RS-232 Interface | |
| Type | Null modem |
| Baud Rate | 9600/56k Baud |
| Printer Interface | |
| Drivers | Epson ESC/P, Epson ESC/P RAST, Epson ESC/P2, HP PCL3 |
| General Characteristics | |
| Dimensions | 10.0 in. x 7.0 in. x 2.25 in. (25.4 cm x 17.8 cm x 6.1 cm) |
| Weight | 4.0 lbs (1.8 kg) includes battery |
| Power Requirement — Battery Operation (standard) | NiMH battery |
| AC/DC Operation (optional via external DC input) | + 12.5 to +15 Vdc, 1100 mA max. |
| Environmental | |
| Temperature, Operating | 0 to +50°C, humidity 85% or less |
| Temperature, Non-operating | –20 to +75°C |
| Electromagnetic Compatibility | Complies with European community requirements for CE marking |
| Safety | Conforms with EN 61010-1 for class 1 portable equipment |
Important: Maximum input level: +20 dBm, +50 Vdc.
Important: The RF Wattmeter/Power Monitor (Option 5) requires an external RF detector, which is not included with the option; the RF Detector (5400-71N50, N(m), 50 Ohm, 1 to 3000 MHz) must be ordered separately.
Important: The RS-232 interface requires a serial null modem cable (RX-TX lines are crossed, not straight through); a null modem cable is standard with every MS2711A.
This pre-owned unit is inspected and functionally verified in-house before it ships and is backed by our pre-owned warranty. To confirm its exact condition, firmware revision, installed options, or included accessories for your application before ordering, contact our Test Architects.
ValueTronics supplies both new and used test and measurement equipment. New units ship factory-sealed, exactly as received from the manufacturer; every used unit is inspected and functionally verified in-house at our 20,000 sq ft secure facility in Elgin, Illinois before it ships. Our Test Architects can help you select the condition, calibration, and configuration that fit your application.
Please review the Manufacturer's Data Sheet to verify published specifications. Feedback on this webpage is always welcome — please reach out to your Test Architect at any time for questions or concerns. Thank you, we truly appreciate you being our customer.
