LIT-930A Com-Power LISN New

LIT-930A Com-Power LISN New

$625
$625 $625
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Frequency Range: 9 kHz to 30 MHz
  • For conducted emissions testing with LISN
  • Protects spectrum analyzer input
  • 10 dB In-band Attenuation
  • Excellent VSWR
View full details
More Details
Specifications
Datasheets

Specifications:

  • Frequency range: 9 kHz - 30 MHz
  • Insertion loss: 10 dB +1.5 / -0.5 dB
  • Max. Input level: 4 Watts CW (+36 dBm ) +/- 15 Vdc
  • VSWR: < 1.1:1
  • Connectors: N type (input and output)

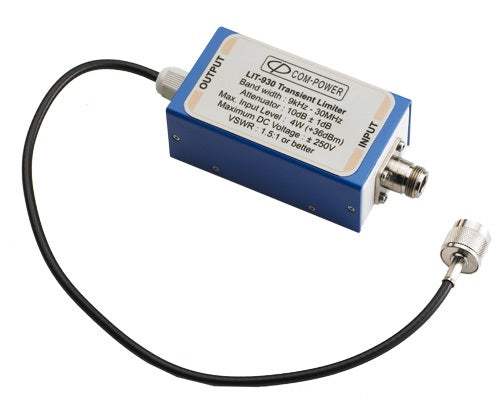

The Transient limiter LIT-930A protects a spectrum analyzer input from high-level transients from the line impedance stabilization networks during EMC conducted emissions testing. It has a combined frequency range of 9 kHz -30 MHz. The built in band pass filter attenuates the out-band signals at more than 20 dB/decade.

The image is for reference only. See product specification for details.

Model No

LIT-930A

Condition

New

Manufacturer

Com-Power

Frequency

30 MHz

Com-Power LIT-153A LIT-930A
