I30 Fluke Clamp Meter New

I30 Fluke Clamp Meter New

$646.99
$646.99 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

Electrical Specifications

  • Specified current range: 30 mA to 30 A DC, 30 mA to 20 A AC rms
  • Usable current range: 5 mA to 30 A DC, 30 mA to 20 A AC rms
  • Crest Factor: 1.4 in
  • Output sensitivity: 100 mV/A
  • Accuracy (at +25°C): ±1% of reading ±2 mA
  • Resolution: ±1 mA
  • Load impedance: > 10 k Ohms and ≤ 100pF
  • Conductor position sensitivity: ±1% relative to center reading
  • Frequency range: DC to 20 kHz (-0.5 dB)
  • di/dt following: 20 A/µs
  • Response time: Better than 1 µs
  • Temperature coefficient: ±0.01% of reading/°C
  • Operating humidity: 15 to 85 % (non condensing)C
  • Altitude: 2000 m
  • Power supply: 9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator
  • Working voltage: 300 V AC rms or DC
View full details
More Details
Specifications
Datasheets

General Specifications

  • Maximum conductor size: 19 mm diameter
  • Output connection: 4 mm safety connector
  • Output zero: Manual adjust via thumbwheel
  • Cable length: 1.5 meters
  • Operating temperature range: 0°C to +50°C
  • Storage temperature range (with battery removed): -20°C to +85°C
  • Operating humidity: 15% to 85% (non-condensing)
  • Weight: 250 g
  • EMC Standards: EN 61326: 1998 +A1, A2, and A3

Safety standards

  • BS EN 61010-1:2001
  • BS EN 61010-2-032:2002
  • BS EN 61010-031:2002
  • 300 V rms, Category III, Pollution Degree 2
  • Use of the probe on uninsulated conductors is limited to 300 V AC rms or DC and frequencies below 1 kHz

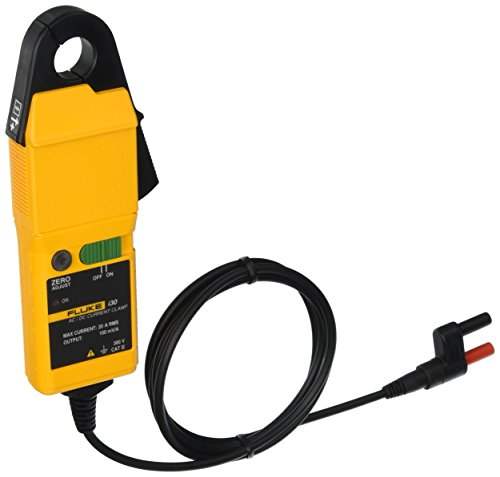

The i30 current clamp is based on Hall Effect technology for use in measurement of both DC and AC current. The i30 may be used in conjunction with multimeters, recorders and other suitable recording instruments for accurate non-intrusive current measurement.

Model No

I30

Condition

New

Manufacturer

Fluke

Amps

30 A

Volts

300 V

Fluke i30
