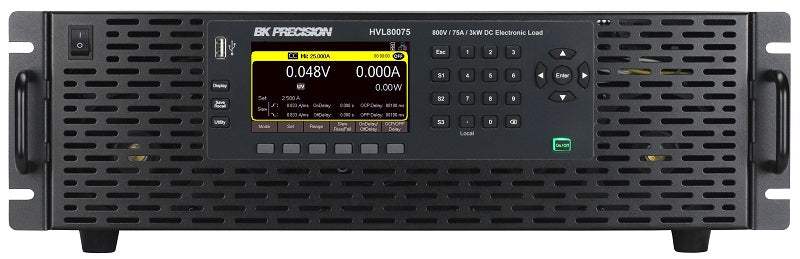

HVL80075 B&K Precision DC Electronic Load

HVL80075 B&K Precision DC Electronic Load

$8,850
$8,850 $8,850
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • High power density up to 6 kW in a 5U form factor
  • CC/CV/CR/CW operating modes
  • Continuous, pulse, and toggle transient operation
  • Transient mode speed up to 10 kHz in CC mode
  • Advanced list mode programming
  • Adjustable loop response speed
  • Thermostatically-controlled fans for quiet operation
  • Adjustable voltage and current slew rates
  • OVP, OCP, OPP, reverse voltage, and key-lock protections
  • Oscillation protection

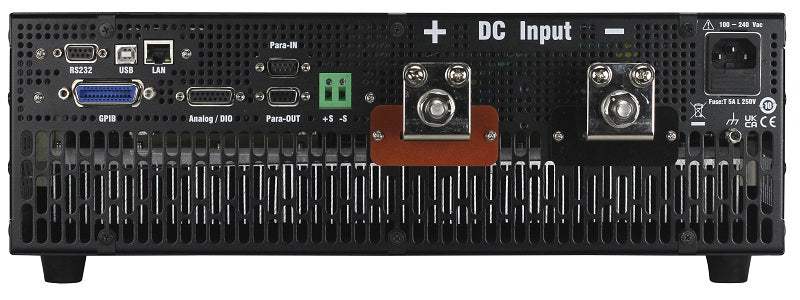

  • USB (USBTMC-compliant), LAN, RS232, and GPIB interfaces standard
  • LabVIEWTM drivers provided
  • Operating software and battery test software provided
  • cTUVus certification mark
View full details
More Details
Specifications
Datasheets

The HVL Series DC Electronic Loads offer a wide operating voltage up to 1000 V and high power density providing 6 kW in a 5U form factor. In addition to CC/CV/CR/CW operating modes, the HVL Series features continuous, pulse, and toggle transient operation. Up to 10 identical HVL Series models can be combined in parallel to increase total sink capabilities to 60 kW.

Suitable for ATE system applications, this series supports a variety of dynamic loading conditions for evaluating DC-DC converters, batteries, battery chargers, photovoltaic arrays, and other high power DC sources.

Model No

HVL80075
