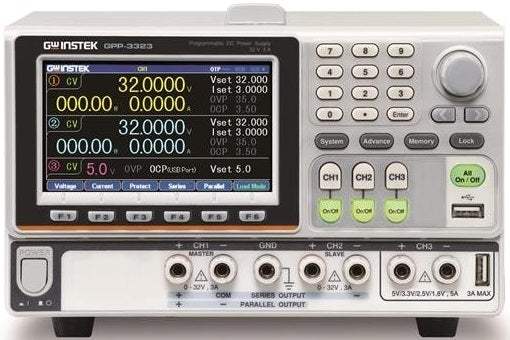

GPP-3323 Instek DC Power Supply New

GPP-3323 Instek DC Power Supply New

$626
$626 $0
Shipping calculated at checkout.
Optional:
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 4.3”TFT LCD Display
  • Supports Setting Value, Measurement Value and Output Waveform Display
  • Load Function (CC, CV, CR Mode)
  • Setting Resolution: 1mV / 0.1mA; Read Back Resolution: 0.1mV / 0.1mA
  • Low Ripple Noise: Ω350uVrms/ Ω2mArms
  • Transient Response Time: Ω50uS
  • Utilizing Hardware to Realize Over Voltage Protection / Over Current Protection / Over Temperature Protection
  • Delay Function / Output Monitoring Function / Output Recorder Function
  • Intelligent Temperature Control Fan Effectively Reduces Noise
  • Sequential Output Function and Built-in 8 Template Waveforms
  • The Output Recorder Function Records The Output Voltage & Current Parameters with A Minimum Recording Interval of 1 Second.
  • Provides 10 Sets of Memory for Each Sequence/Delay/Recorder/Panel Setting Condition
  • GPP-3323 Supports A USB (Type A) Output Terminal
  • Standard: RS-232, USB, Ext I/O ; Optional: LAN, GPIB+LAN
  • Compatible with Commands of GPD-x303S Series
View full details
More Details
Specifications
Options

Accessories:

  • CD (User Manual)
  • Power cord
  • Test Leads: GTL-104A x 3

Specifications:

  • 32 V
  • 5 A
  • 217 W

The GPP-3323 is a multi-channel programmable DC power supply that includes (0~32V/0~6A) for single-channel output. This DC power supply not only provides high program resolutions (1mV/0.1mA) and read back resolutions (0.1mV/0.1mA), but also features optimal low-ripple noise characteristics Ω350uVrms/Ω2mArms and output transient recovery capability Ω50S. Independent output on-off switch is provided for each channel.

Model No

GPP-3323

Condition

New

Manufacturer

Instek

Current

5 A

Voltage

32 V

Power

217 W

GPP-GPIB-LAN

GPIB+LAN Interface (factory installed)

GPP-LAN

LAN option for the GPP-Series (factory installed)
