Features:

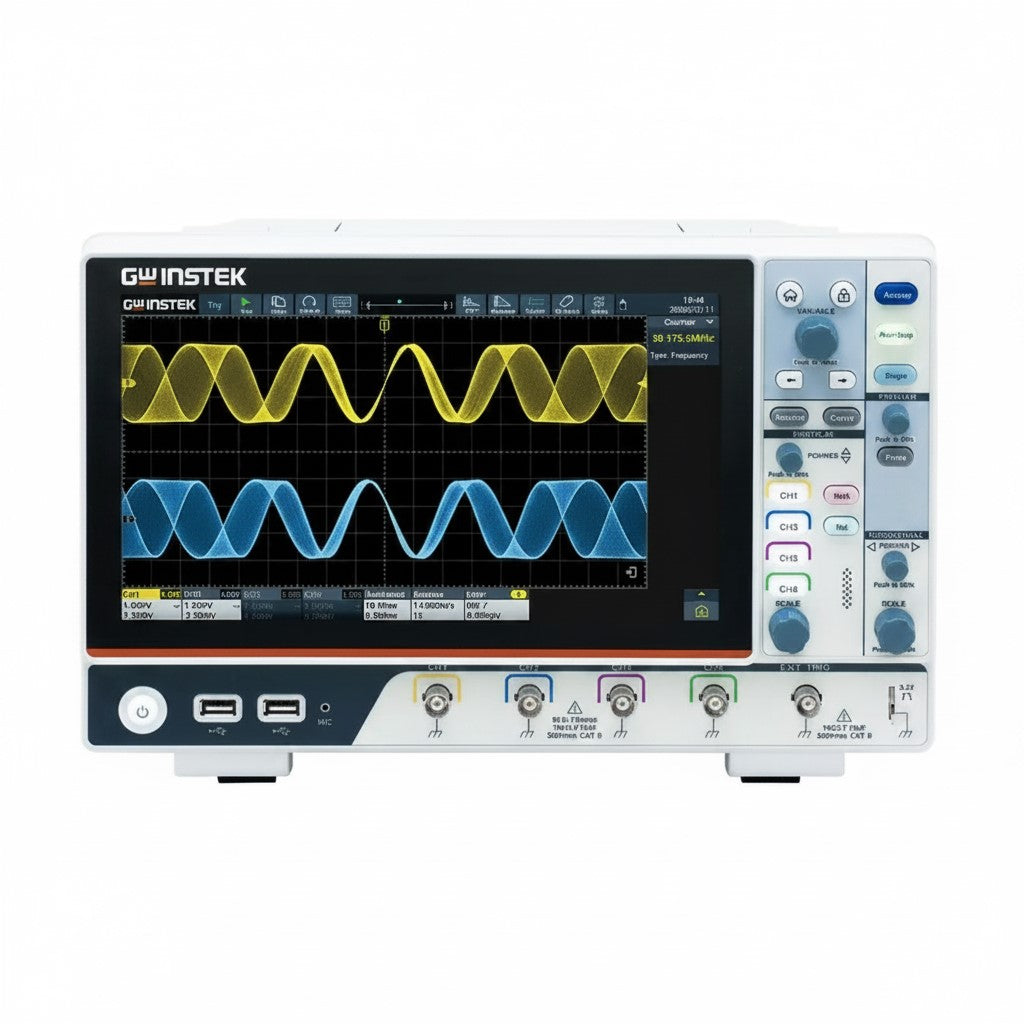

The Instek GDS2354HG is a Digital Oscilloscope with 12-bit hardware, high-resolution and compact form factor. It satisfies the needs of a wide range of applications, like power design, in-vehicle communication validation, transitions between lab and field testing environments, or teaching scenarios, this oscilloscope can accompany users through all of these scenarios.
The Instek GDS2354HG 350 MHz, 4-Channel, 2.5 GS/s Digital Storage Oscilloscope (AFG), with its 12-bit hardware, high-resolution and compact form factor satisfies the needs of a wide range of application scenarios. For example, laboratories demand high precision, often at the expense of size and cost. Likewise, field applications require lightweight portability that typically sacrifices accuracy. In educational environments, users are tasked with delivering correct measurement concepts, but must often compromise on features, due to limited budgets. Whether for demanding power design, complex in-vehicle communication validation, seamless transitions between laboratory and field testing environments, or digitalized teaching scenarios, this oscilloscope can accompany users through all of these scenarios.
The GDS-2354HG features a 12-bit analog-to-digital converter (ADC), delivering 4096 levels of vertical quantization to enhance dynamic range and waveform clarity. It also pushes DC gain accuracy to a stringent 1.5 %. This ensures that what users see on their screen is exactly what is happening on the board, whether performing rigorous power loss calculations or amplifying weak medical electronic signals.
The most commonly used debugging tools come standard in the GDS-2354HG, delivering a true all-in-one measurement experience. Featuring standard 5-protocol decoding (RS232/I2C/SPI/CAN/LIN) and 1M-point FFT analysis, this device excels at identifying 2 communication errors and EMI. It integrates 43 parameters, a DVM, and a frequency counter into a single, comprehensive system verification tool.
Weighing only approximately 3.2 kg, this oscilloscope features a lightweight design that breaks the traditional limitation of its confinement to a lab bench. It supports Type-C power, allowing users to easily perform mobile measurements in automotive road tests, outdoor electromechanical equipment maintenance, or industrial settings simply by carrying a power bank.
The GDS-2354HG is equipped with a smooth Android system, which is not just a measurement tool, but also a powerful teaching and presentation center. With built-in WPS Office and multimedia support, this oscilloscope is capable of directly handling documents, videos and PDFs. It features a multi-touch interface with screen recording, peripheral support, and Web Control for remote operation, significantly enhancing efficiency in research and education.
Featuring a 50 MHz Arbitrary Waveform Generator, the GDS-2354HG offers 28 standard waveforms and a one-key copy function to replicate real-world anomalies for stress testing. It also supports "Frequency Response Analysis", providing intuitive Bode plots to verify the stability and phase margin of power supplies and filter circuits. In other words, for advanced applications requiring complete stimulus and response testing, the HG version emerges as a complete and comprehensive oscilloscope.
- Bandwidth: 350 MHz
- Vertical accuracy: ≥ 5 mV ± 1.5 %
- Horizontal accuracy: ± 1 ppm
- Maximum real-time sampling rate: 2.5 GS/s
- Maximum memory depth: 500 Mpts
- 1 Mpt FFT analysis
- Built-in arbitrary waveform generator
- Built-in digital voltmeter (DVM), 6-digit frequency Counter, and digital filters
- Thoughtful design helps prevent human error 14 trigger types
- 43 automatic measurement parameters (with statistics)
- Standard 5 serial bus trigger and decode functions include RS232/UART, I²C, SPI, CAN, and LIN
- Easy to learn and use with 11 languages built in
