FSL-K30 Rohde & Schwarz NEW

FSL-K30 Rohde & Schwarz NEW

$7,705
$7,705 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Noise figure and gain measurements option
  • Requires option FSL-B5, preamplifier and noise source
  • Provides features otherwise only provided by special noise measurement analyzers
  • The following can be measured at a specified frequency or in a selectable frequency range: Noise figure in dB, Noise temperature in K, Gain in dB
  • Application Firmware for Noise Figure and Gain Measurements
View full details
More Details
Specifications
Datasheets
Manuals

The R&S FSL-K30 application firmware provides the R&S FSL spectrum analyzer with features otherwise only provided by special noise measurement analyzers.

The following parameters can be measured at a specified frequency or in a selectable frequency range:

  • Noise figure in dB
  • Noise temperature in K
  • Gain in dB

Compared with conventional noise measurement systems, R&S FSL-K30 has the advantage that a wide variety of further RF measurements can also be performed. The R&S FSL also allows the measurement of harmonics, intermodulation, spurious responses and many other RF relevant criteria (for measurements on amplifiers and on frequency-converting DUTs, e.g. low-noise converters).

Noise measurements
  • Measurement range 0 dB to 35 dB
  • Resolution 0.01 dB
  • Measurement accuracy ±0.3 dB (measurement with external preamplifier (gain 30 dB, noise figure < 5 dB) and 1 MHz resolution bandwidth, valid for DUTs with noise figure 1 dB to 10 dB and gain > 10 dB)
Gain measurements
  • Measurement range 0 dB to 60 dB
  • Resolution 0.01 dB
  • Measurement accuracy ±0.2 dB (measurement with preamplifier (gain 30 dB, noise figure < 5 dB) and 1 MHz resolution bandwidth)
Required hardware
  • R&S FSL-B5 noise source power supply (via 28 V connector on the R&S FSL rear panel)
  • Noise source, e.g. NoiseCom NC346
  • External preamplifier (for improved accuracy and repeatability of measurements)

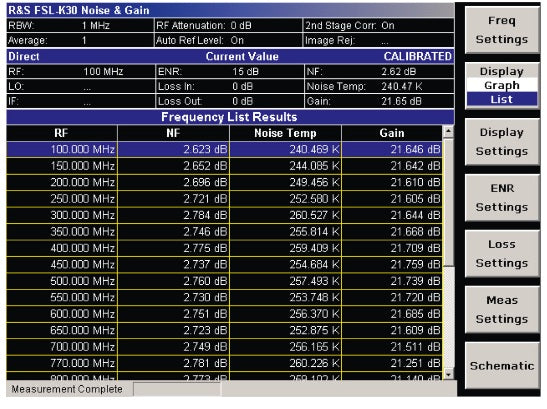

*The image is for reference only. See product specification for details.

Model No

FSL-K30

Condition

New

Manufacturer

Rohde & Schwarz
