FSH-K43 Rohde & Schwarz NEW

FSH-K43 Rohde & Schwarz NEW

$2,085
$2,085 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Receiver mode and channel scan measurement option
  • For FSH spectrum analyzers
  • Enables the FSH to be operated as a receiver for pre-compliance EMC applications and monitoring tasks
  • Measurements are performed at a predefined frequency with adjustable measurement time
  • In channel scan mode, the FSH sequentially measures the levels at various frequencies defined in a channel table
  • Channel tables are generated with the R&S InstrumentView software and loaded into the R&S FSH
  • Predefined tables for a large number of mobile communications standards and TV transmitters are also available
  • CISPR bandwidths of 200 Hz, 9 kHz, 120 kHz and 1 MHz are available for EMI emission measurements
  • Peak, average, RMS and quasi-peak detectors can be selected
View full details
More Details
Specifications
Datasheets
Manuals

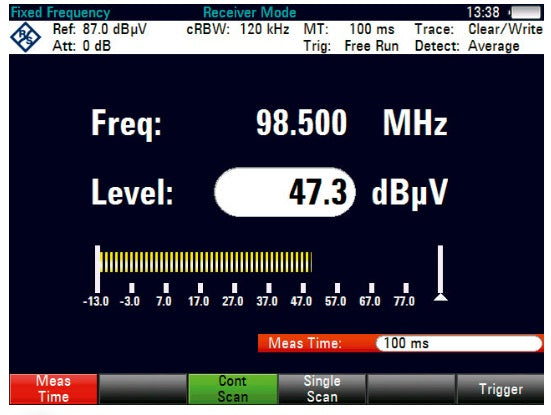

Equipped with the R&S FSH-K43 option, the R&S FSH can be operated as a receiver for pre-compliance EMC applications and monitoring tasks. Measurements are performed at a predefined frequency with adjustable measurement time.

In the channel scan mode, the R&S FSH sequentially measures the levels at various frequencies defined in a channel table. The channel tables are generated with the R&S InstrumentView software and loaded into the R&S FSH. There are predefined tables for a large number of mobile communications standards and TV transmitters.

CISPR bandwidths of 200 Hz, 9 kHz, 120 kHz and 1 MHz are available for EMI emission measurements. Peak, average, RMS and quasi-peak detectors can be selected.

*The image is for reference only. See product specification for details.

Model No

FSH-K43

Condition

New

Manufacturer

Rohde & Schwarz

Rohde & Schwarz FSH 2774907d-5685-4cc9-ad19-b585bd1c9eb6
Rohde Schwarz FSH Spectrum Analyzer 4 8 13 20 Manual
