FPL1-K7 Rohde & Schwarz NEW

FPL1-K7 Rohde & Schwarz NEW

$2,860
$2,860 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • AM/FM/ΦM analog demodulation option
  • Converts device into an analog modulation analyzer for amplitude, frequency and phase modulated signals
  • Measures the characteristics of the useful modulation and other items such as residual FM or synchronous modulation
  • If used with ZNL series, the ZNL3-B1, ZNL4-B1 or ZNL6-B1 are also required
View full details
More Details
Specifications
Datasheets
Manuals

he R&S FPL1-K7 option converts the R&S FPL1000 into an analog modulation analyzer for amplitude, frequency, and phase-modulated signals. It measures the characteristics of the useful modulation and other items such as residual FM or synchronous modulation. Typical applications of the R&S FPL1-K7 include:

  • Transient and settling measurements on oscillators such as VCOs and PLLs
  • Troubleshooting AM/FM transmitters
  • Simple chirp analysis of pulsed or continuous wave signals
Functions include:

  • Demodulation of AM, FM, and φM signals
  • Simultaneous viewing of:
    • Modulation signal versus time
    • FFT spectrum of the modulation signal
    • RF signal power versus time
    • FFT spectrum of the RF signal
  • Table with a numeric display of:
    • Deviation or modulation depth, RMS weighted, +peak, –peak, ± peak/2
    • Modulation frequency
    • Carrier frequency offset
    • Carrier power
    • Total harmonic distortion (THD) and SINAD

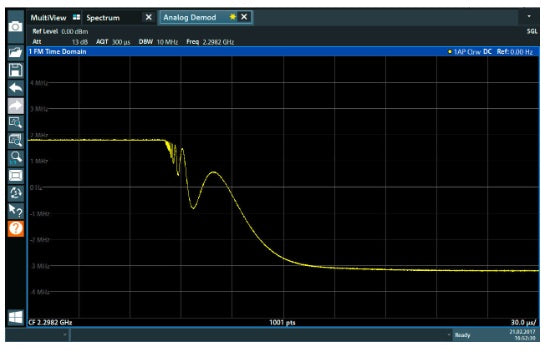

*The image is for reference only. See product specification for details.

Model No

FPL1-K7

Condition

New

Manufacturer

Rohde & Schwarz
