FPL1-K54 Rohdes & Schwarz NEW

FPL1-K54 Rohdes & Schwarz NEW

$2,535
$2,535 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Adds EMI diagnostic functionality to the R&S FPL signal and spectrum analyzer
  • The ideal tool for debugging and pre-compliance applications
  • Offers EMI bandwidths for commercial and military applications, detectors such as quasi-peak, CISPR-average and RMS-average, limit lines and correction factors
  • Remote control of line impedance stabilization networks (LISN) from Rohde & Schwarz with the R&S FPL1-B5 option
  • Acoustic analysis using FM and AM signal demodulation with the R&S FPL1-B5 option
View full details
More Details
Specifications
Datasheets
Manuals

The R&S FPL1-K54 EMI measurement application adds EMI diagnostic functionality to the R&S FPL signal and spectrum analyzer. The R&S FPL1-K54 offers EMI bandwidths for commercial and military applications, detectors such as quasi-peak, CISPR-average, and RMS-average, limit lines, and correction factors.

EMI detectors in line with CISPR 16-1-1
  • Flexible application of EMI detectors such as peak, quasi-peak, CISPR-average and RMS-average
  • Fast, easy-to-read diagnostic measurements with high result reproducibility
Measurement bandwidths in line with CISPR and MIL-STD

Diagnostic measurements during development deliver the correct amplitude of the disturbance signal thanks to the 6 dB bandwidths (CISPR from 200 Hz to 1 MHz, MIL‑STD from 10 Hz to 1 MHz).

Measurement markers for evaluating EMI
  • The ability to link markers to up to six traces and an associated EMI detector provides users with a direct reference to limits
  • Automatic searching for disturbance maxima for reliable detection of time-varying interferers
  • Critical frequencies are entered in a peak list for fast evaluation of a frequency spectrum with respect to official EMI emission limits
Marker demodulation

Fast and reliable identification of AM and FM signals.

EMI limit lines
  • Selection of limit lines that meet international standards
  • Easy generation, editing, and use of customer-specific limit lines
  • Fast pass/fail test using activated limit lines
Frequency-dependent correction value tables
  • Database with correction value tables for EMI accessories such as antennas, clamps, line impedance stabilization networks (LISN), pulse limiters, preamplifiers, cables, and attenuators
  • Easy generation, editing, and storage of new correction tables
  • Several correction tables can be combined to compensate for the entire test setup, e.g. including an antenna, a cable, and a preamplifier

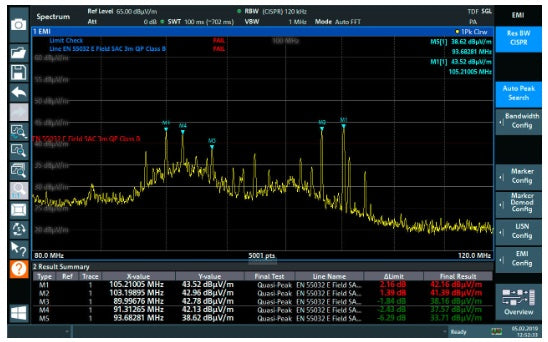

Logarithmic spectrum display

The spectrum display with a logarithmic frequency axis makes it easy to analyze measurement results over a wide frequency range. Limit lines are displayed in accordance with the standards.

*The image is for reference only. See product specification for details.

Model No

FPL1-K54

Condition

New

Manufacturer

Rohde & Schwarz

Rohde Schwarz FPL1000 Data Sheet
Rohde Schwarz K54 Specifications
