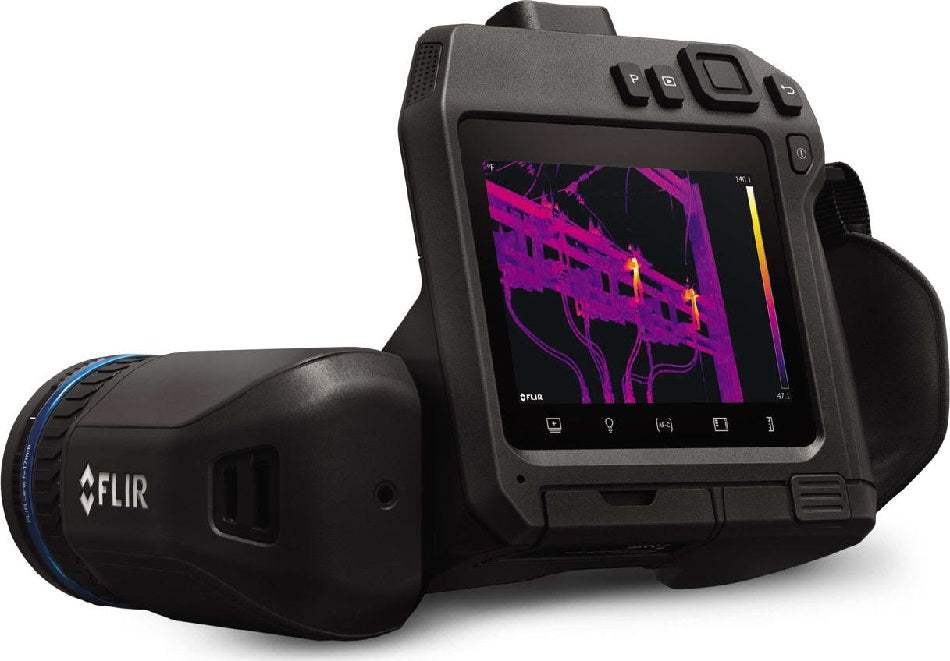

• FLIR T840-14 Flir Thermal Imager
1 1
New
Earn Loyalty with Rewards
Compare

FLIR T840-14 Flir Thermal Imager New

FLIR T840-14 Flir Thermal Imager New

$23,459
$23,459 $23,459
In Stock
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features

  • Includes 14° lens
  • Safely and comfortably assess equipment and prevent component failure from any vantage point, in any lighting condition
  • Get industry-leading image clarity from FLIR Vision Processing™, MSX®, UltraMax®, and proprietary adaptive filtering
  • Determine accessibility of components for repair with touch of a button by activating on-screen laser distance measurement
  • See problems and make decisions easily thanks to scratch-resistant, 4-inch LCD display
  • Scan outdoor equipment from safe distances using integrated eyepiece viewfinder
  • Reduce strain of full-day inspections with 180° rotating optical block
  • Share lenses across your fleet of cameras thanks to AutoCal™ optics
  • Ensure crisp thermal imagery and spot-on temperature readings every time with laser assisted autofocus
  • Get the most out of your work day with rapid reporting features that help you organize findings in field
  • Quickly access menus, folders, and settings using intuitive controls, including rapid response touchscreen
  • Allow customers to observe critical findings in real time through Wi-Fi streaming to FLIR Tools® app
  • Prepare precise documentation with embedded GPS locations, as well as measurement data from METERLiNK®-enabled FLIR clamps and multimeters
  • IR resolution: 464 x 348 (161,472 pixels)
  • UltraMax® resolution: 645,888 effective pixels
  • F-Number: f/1.1 (42° lens), f/1.3 (24° lens), f/1.5 (14° lens), f/1.35 (6° lens)
  • Minimum focus distance: 42° lens - 0.15 m; 24° lens - 0.15 m; optional macro mode; 14° lens - 1.0 m; 6° lens - 5.0 m
View full details
More Details
Specifications
Datasheets

Accessories (Included)

  • High-Performance Thermal Camera (T840)
  • 14° Lens
  • Small Viewfinder Eyecup
  • Li-Ion Batteries (x2)
  • Battery Charger
  • Hard Transport Case
  • Lanyards
  • Front Lens Cap
  • Power Supplies
  • Printed Documentation
  • SD Card (8 GB)
  • USB 2.0 A to USB Type-C Cable
  • USB Type-C to HDMI Cable
  • USB Type-C to USB Type-C Cable

Specifications

  • Temperature Range: -40 - 1202°F (-40 - 650°C)
  • Thermal Sensitivity (N.E.T.D): < 32°F at 86°F (< .04°C at 30°C)
  • Digital Zoom: 4x continuous
  • Focus: Manual or automatic (one shot)
  • LCD Image Sketch: Draw on stored images using the touchscreen
  • Multi-Spectral Dynamic Imaging (MSX): IR image with enhanced detail presentation
  • Frame Rate: 30 Hz
  • Field of View/Minimum Focus Distance/FOV Match: 25° x 19°/.82 ft. (0.25m)/FOV match where digital image FOV adapts to IR lens
  • Detector Type - Focal Plane Array (FPA) Uncooled Microbolometer: 480 x 360 pixels
  • Lens: 30 Hz
  • Display: Built-in touch-screen 4.3 in. color LCD (800 x 480 pixels)
  • Image Modes: Thermal, visual, fused images, P-i-P, MSX (resizable and movable), thumbnail gallery
  • Automatic Image Adjustment: Continuous/manual; linear or histogram based; possible to lock max, min, or span temperature
  • Manual Image Adjustment: Level/span/max/min
  • Image Storage: 1000 radiometric JPEG images (SD card memory)
  • Image Annotation: Voice (60 sec); text comments, sketch
  • Periodic Image Storage: 7 seconds to 24 hours (IR) and 14 seconds to 24 hours (IR and visual)
  • Video Lamp and Laser Pointer: Built-in dual LED lamps plus onboard laser pointer
  • Laser Classification/Type: Class 2/Semiconductor AlGalnP Diode Laser: 1mW/635nm (red)
  • Set-Up Controls Mode selector, color palettes, configure info to be shown in image, local adaptation of units, language, date and time formats, and image gallery
  • Measurement Modes: 10 spotmeters, 5 box areas, isotherm, auto hot/cold spot, Delta T
  • Measurement Correction: Reflected ambient temperature and emissivity correction
  • Video Recording in Camera and Video Streaming: Non-radiometric IR-video recording (MPEG-4 to memory card), Visual and Radiometric IR-video streaming (Full dynamic to PC using USB or Wi-Fi), and Non-radiometric IR-video streaming (MPEG-4 using Wi-Fi and uncompressed colorized video using USB)
  • Battery Type: Li-ion
  • Operating Time: 2.5 hours, Display shows battery status
  • Charging System: In camera AC adapter/2-bay charging system
  • Shock: 25G, IEC 60068-2-29
  • Vibration: 2G, IEC 60068-2-6
  • Encapsulation; Safety: IP54; EN/UL/CSA/PSE 60950-1
  • Dimensions: 5.6 in. x 7.7 in. x 3.7 in. (143mm x 196mm x 94mm)
  • Weight: 2.87 lbs. (1.3kg), including battery

The FLIR T84014 High-Performance Thermal Camera with Viewfinder, MSX, UltraMax, 14° Lens, and FLIR Tools+, 464 x 348, -4 to 2732°F is designed to help electric utility and other thermography professionals comfortably survey equipment both indoors or outdoors and seek out signs of failure all day long. Thanks to an integrated eyepiece viewfinder and a bright 4-inch color LCD display, the T840 makes it easy to conduct inspections outside in bright, challenging lighting conditions. The 180° rotating lens platform and thoughtful ergonomic design allow the T840 to help users diagnose hard-to-reach components in a variety of environments. With advanced on-camera measurement tools such as 1-Touch Level/Span and laser-assisted autofocus, you'll record accurate temperature measurements every time. Avoid costly power outages and plant shutdowns through regular predictive maintenance routines with this flexible and innovative IR camera.

Model No

FLIR

Condition

New

Manufacturer

Flir

FLIR_T840-14_Datasheet
