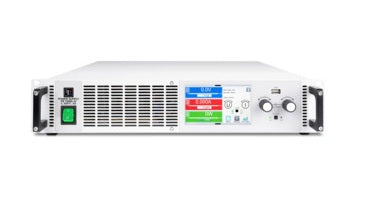

2 Unit 19-inch Rack Mount Frame
5-inch TFT color touch display with intuitive user interface
Wide range input, 110 V- 240 V ±10 % Single Phase AC
Regulation mode CV, CC, CP with fast crossover
Active Power-Factor-Correction, typical 0.99
Very high efficiency up to over 95 %
Flexible power regulated DC output stages (autoranging)
16 bit ADCs and DACs, selection of control speed: Normal, Fast, Slow
Galvanically isolated Share-Bus for parallel operation
Master-Slave bus for parallel operation of up to 64 units
Command languages and drivers: SCPI and ModBus, LabVIEW, IVI
All 10000 series devices offer true autoranging capabilities. Autoranging allows the device to deliver a higher voltage at lower currents and a higher current at lower voltages than a power supply or load with a conventional square wave output/input characteristic.
Power supplies and loads with autoranging provide users with a wider range of voltages and currents without having to oversize the devices. Benefits: For use in a variety of test applications, a single device provides a wider range of test applications and versatility.
AC Connection
The DC power supplies in the PS 10000 series are equipped with an active PFC which provides high efficiency at low energy consumption. Furthermore, the devices in this series provide a wide input voltage range. This extends from 1-phase 110/120 V up to 240 V AC mains supply and 3-phase 208 V to 380 V, 400 V, and 480 V AC mains supply. The devices can be operated in the majority of global mains supply. They adjust automatically, without additional configuration, to the available supply. In a 110/120 V and 208 V AC grid, a derating of the output power is set.
DC Output
The output of the bidirectional power supply PS 10000 with a DC voltage of 0 - 60 V up to 0 - 2000 V allows currents of 0 - 6 A up to 0 - 1000 A. The flexible output stages (autoranging) provide the user with a wide voltage, current and power range and hence a wider field of working than traditional power supplies.
DC Connection
Connection of the DC output is via a copper rail on the back side of the device. If a system with higher performance is required. the devices are simply connected in parallel. With minimal effort devices can be linked with the vertical copper rails. A cover for contact protection is provided.
Model No
EA-PSI
Condition
New
Manufacturer
EA Elektro Automatik
Current
120 A
Voltage
60 V
Power
3000 W
