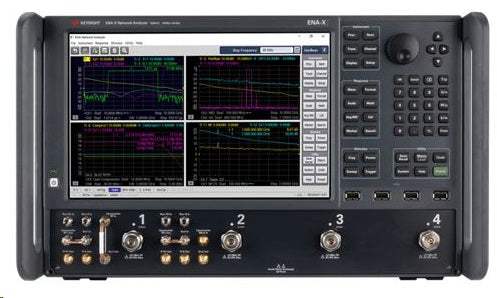

The Keysight E5081A ENA-X is a vector network analyzer that brings network analysis, signal analysis, and a configurable switch matrix together in a single instrument. Built-in low noise receivers and a configurable test set, paired with modulated-signal measurement capability, let an engineer characterize high-performance components through a single connection rather than juggling a separate network analyzer, signal analyzer, and switch matrix. Software wizards guide the operator through advanced wideband measurement setups.
Characterizing components such as power amplifiers and frequency converters demands more than standard S-parameter measurements — these devices also call for high-sensitivity and high-power performance characterization, along with modulated-signal tests such as EVM and ACPR. The E5081A is built to perform this full range of system characterization with faster speeds and greater flexibility, consolidating measurements that would otherwise require multiple instruments and additional measurement-error potential.
ValueTronics stocks and holds the E5081A in our own 20,000 square foot secure warehouse at 1675 Cambridge Drive in Elgin, Illinois. Holding inventory directly lets us manage condition closely: every pre-owned unit is inspected and functionally verified in-house by our technicians, while new units ship factory-sealed exactly as received from the manufacturer.
Keysight Technologies traces its roots to Hewlett-Packard, whose test and measurement business was spun off as Agilent Technologies in 1999. Agilent's electronic measurement division then became the independent Keysight Technologies in 2014, the name that carries this instrument line today.
| Specification | Value |
|---|---|
| Miscellaneous Information (Table 61) | |
| System IF bandwidth range | 1 Hz to 15 MHz |
| Number of points | 1 to 100,003 |
| Operating System | Windows 10 (Supports both 32-bit and 64-bit applications) |
| Frequency Resolution, Accuracy, Stability (Test Port Output, Table 14) | |
| Frequency range | 100 kHz to 20 GHz (Option 2K5/2K6/4K5/4K6); 100 kHz to 44 GHz (Option 2N5/2N6/2N7/4N5/4N6/4N7) |
| Frequency resolution | 1 Hz |
| Frequency accuracy | ± 7 ppm; ± 0.45 ppm (Option 1E5) |
| Frequency stability (typical) | ± 7 ppm; ± 0.05 ppm (Option 1E5); ± 3 ppm/year maximum; ± 0.1 ppm/year maximum (Option 1E5) |
| Maximum Output Port Power, Port 1 and 2 (All Options, dBm, Table 15) | |
| 100 kHz to 1 MHz | 9 (spec) / 11 (typ) |
| 1 MHz to 5 GHz | 16 (spec) / 17 (typ) |
| 5 GHz to 6.5 GHz | 17 (spec) / 19 (typ) |
| 6.5 GHz to 9 GHz | 16 (spec) / 17 (typ) |
| 9 GHz to 15 GHz | 15 (spec) / 16 (typ) |
| 15 GHz to 19 GHz | 13 (spec) / 15 (typ) |
| 19 GHz to 20 GHz | 10 (spec) / 11 (typ) |
| 20 GHz to 22 GHz | 13 (spec) / 14 (typ) |
| 22 GHz to 24 GHz | 12 (spec) / 13 (typ) |
| 24 GHz to 27 GHz | 10 (spec) / 11 (typ) |
| 27 GHz to 30 GHz | 8 (spec) / 12 (typ) |
| 30 GHz to 32 GHz | 8 (spec) / 11 (typ) |
| 32 GHz to 33 GHz | 4 (spec) / 9 (typ) |
| 33 GHz to 35 GHz | 4 (spec) / 7 (typ) |
| 35 GHz to 36 GHz | 3 (spec) / 5 (typ) |
| 36 GHz to 37.5 GHz | 1 (spec) / 3 (typ) |
| 37.5 GHz to 39 GHz | 1 (spec) / 3 (typ) |
| 39 GHz to 40 GHz | 0 (spec) / 2 (typ) |
| 40 GHz to 41 GHz | -5 (spec) / -4 (typ) |
| 41 GHz to 42 GHz | -16 (spec) / -14 (typ) |
| 42 GHz to 44 GHz | -19 (spec) / -14 (typ) |
| Nominal Power / Preset Power Level (Table 23) | |
| Option 2K5/2K6/4K5/4K6 (20 GHz) | 0 dBm |
| Option 2N5/2N6/2N7/4N5/4N6/4N7 (44 GHz) | -20 dBm |
| Power Resolution, Maximum/Minimum Settable Power (Table 24, Typical) | |
| Settable resolution | 0.01 dB |
| Maximum settable power | +30 dBm |
| Minimum settable power | -100 dBm |
| Damage Input Level at Test Ports (Table 30) | |
| Damage Input Level | +27 dBm or ± 35 VDC (Warranted) |
| Front Panel Information (Table 62) | |
| Test Port connector type | 3.5 mm male (Option 2K5/2K6/4K5/4K6); 2.4 mm male (Option 2N5/2N6/2N7/4N5/4N6/4N7) |
| Test Port impedance | 50 Ω (nominal) |
| Direct Receiver Access Input connector type | 3.5 mm female (Option 2K5/2K6/4K5/4K6); 2.4 mm female (Option 2N5/2N6/2N7/4N5/4N6/4N7) |
| USB ports | Compatible with USB 2.0, USB Type-A female |
| Display size | 31 cm (12.1 inch) diagonal color active matrix LCD with multi-touch screen |
| Display resolution | 1280 (horizontal) X 800 (vertical) |
| Side Panel Information (Table 63) | |
| Display output | DisplayPort and VGA (supports up to two simultaneous displays) |
| GPIB (Option 172) | 24-pin D-Sub (Type D-24), female; compatible with IEEE-488 |
| USB ports | Four USB ports, one USB device port |
| LAN | Two Gigabit Ethernet, RJ-45 LAN ports |
| Rear Panel - Line Power (Table 64) | |
| Frequency, voltage | 50/60 Hz for 100 to 240 VAC |
| Maximum power | 350 W |
| Typical power consumption | 153 W (Option 2K5/2K6); 217 W (Option 4K5/4K6); 179 W (Option 2N5/2N6/2N7); 216 W (Option 4N5/4N6/4N7) |
| Environmental and Physical (Table 66) | |
| Temperature, operating | 0 to 40 °C ambient |
| Temperature, non-operating | -10 to 60 °C |
| Humidity, operating | Type tested at 20 to 80 %, wet bulb temperature < 29 °C (non-condensing) |
| Humidity, non-operating | Type tested at 20 to 90 %, wet bulb temperature < 40 °C (non-condensing) |
| Altitude, operating | Up to 2,000 meters (6,561 feet) |
| Altitude, non-operating | Up to 4,572 meters (15,000 feet) |
| Vibration, operating | 0.21 G maximum, 5 Hz to 500 Hz |
| Vibration, non-operating | 0.5 G maximum, 5 Hz to 500 Hz |
| Instrument protection | IP 30 IEC/EN 60529 |
| Warm-up time | 90 minutes |
| Regulatory and Safety (Table 67) | |
| EMC | IEC 61326-1; CISPR 11 Group 1, Class A; AS/NZS CISPR 11 |
| Instrument calibration cycle | 1 year |
| Safety | INSTALLATION CATEGORY II, POLLUTION DEGREE 2, MEASUREMENT CATEGORY NONE per IEC standards; IEC/EN 61010-1; Canada CSA C22.2 No. 61010-1; USA UL std no. 61010-1 |
| Physical Size and Weight (Table 68) | |
| Weight | 16.7 kg (Option 2K5); 17.4 kg (Option 2K6/2N5/2N6/2N7); 17.4 kg (Option 4K5); 18.3 kg (Option 4K6/4N5/4N6/4N7) |
Important: Above 40 GHz, an external bandpass filter may be required for noise figure measurements.
Important: Spectrum analysis functionality requires S960904B (for 20 GHz options) or S960907B (for 44 GHz options) software to enable.
Important: Pulsed-RF measurement functions require S96024xB or S96025xB software to enable.
Important: Enhanced time domain analysis with TDR requires S96011B software to enable.
Important: Corrected system performance requires a Mechanical Calibration Kit or Electronic Calibration (ECal) Module; for 4-port E5081A and other calibration kits, download the Uncertainty Calculator from http://www.keysight.com/find/na_calculator to generate uncertainty curves for the specific calibration kit.
Recommended pairing: achieve the E5081A's corrected system performance specifications using a Keysight mechanical calibration kit or an N4691D/N4693D Electronic Calibration (ECal) module.
This pre-owned unit is inspected and functionally verified in-house before it ships and is backed by our pre-owned warranty. To confirm its exact condition, firmware revision, installed options, or included accessories for your application before ordering, contact our Test Architects.
ValueTronics supplies both new and used test and measurement equipment. New units ship factory-sealed, exactly as received from the manufacturer; every used unit is inspected and functionally verified in-house at our 20,000 sq ft secure facility in Elgin, Illinois before it ships. Our Test Architects can help you select the condition, calibration, and configuration that fit your application.
Please review the Manufacturer's Data Sheet to verify published specifications. Feedback on this webpage is always welcome — please reach out to your Test Architect at any time for questions or concerns. Thank you, we truly appreciate you being our customer.
