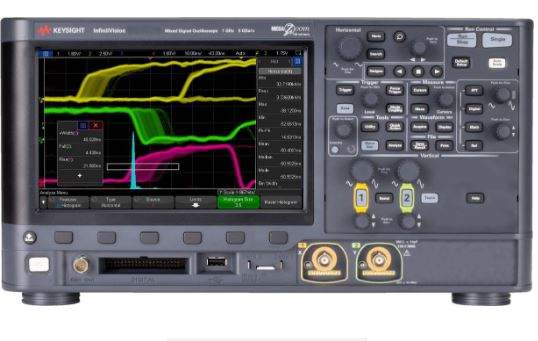

The InfiniiVision 3000G X-Series is a family of general-purpose oscilloscopes offering bandwidth models from 100 MHz up to 1 GHz in a compact form factor. The series combines a capacitive touch user interface, an industry-leading waveform update rate, hardware zone triggering, and a set of standard features intended to capture and isolate elusive glitches and anomalies. Models are available in 2-channel, 4-channel, and mixed-signal (MSO) configurations, with most core waveform operations handled by the proprietary MegaZoom IV smart memory ASIC rather than the CPU.

Across the series, the listed applications span circuit design debugging and troubleshooting, frequency response (Bode plot) characterization of passive filters, amplifier circuits, and the loop response of switch-mode power supplies, and analysis of switching power supplies and power-consuming devices such as batteries. The oscilloscope also supports HDTV video triggering and analysis for consumer-electronics work, and low-speed serial bus debug across embedded, automotive, and aerospace protocols. An integrated Educator's Training Kit provides built-in training signals, a lab guide, and tutorial materials for undergraduate engineering and physics instruction.

ValueTronics stocks and holds the InfiniiVision 3000G X-Series in its own 20,000 square-foot secure warehouse at 1675 Cambridge Drive in Elgin, Illinois. Pre-owned units are inspected and functionally verified in-house before they ship, while new units ship factory-sealed, exactly as received from the manufacturer.

Brand Heritage

Keysight Technologies traces its test-and-measurement heritage to Hewlett-Packard, whose instrument business was spun off as Agilent Technologies in 1999. Agilent's electronic measurement division was then established as Keysight Technologies in 2014, the brand under which this oscilloscope family is produced.

Compare Other Models in This Series

The InfiniiVision 3000G X-Series spans bandwidth models from 100 MHz up to 1 GHz, offered as 2-channel and 4-channel digital storage oscilloscopes (DSOX) and as mixed-signal oscilloscopes (MSOX) that add 16 integrated digital channels. Every model shares the same MegaZoom IV smart memory architecture, the 8.5-inch capacitive touch interface, and the same set of standard features.

Because the series is fully upgradeable — including bandwidth and application software via license-only upgrades — a model can be configured for current requirements and expanded later. Each model number encodes its bandwidth and channel count; for example, a 1 GHz four-channel mixed-signal configuration carries the MSOX3104G designation.

Each pre-owned model below is its own dedicated product page with condition-matched pricing. Choose the bandwidth and channel configuration that fits your application, and use the comparison table to confirm the exact specifications before ordering.

The primary differences across the family are bandwidth and channel count. Bandwidth tiers run 100 MHz, 200 MHz, 350 MHz, 500 MHz, and 1 GHz, with calculated rise times tightening correspondingly from less than or equal to 3.5 ns at 100 MHz to less than or equal to 450 ps at 1 GHz. Each bandwidth is available with 2 or 4 analog channels, and any configuration can be ordered as an MSO with 16 added digital channels.

Core acquisition specifications — up to 5 GSa/s sample rate, up to 4 Mpts memory, the 8.5-inch touch display, and the update rate of more than 1,000,000 waveforms/sec — are common across the lineup. The comparison table that follows lists each model's bandwidth, rise time, and channel count so you can match a specific model number to your requirement.

Additional differences in specifications beyond the few shown above are not listed here — see each model's full specifications below.

Accessories Supplied

• N2843A passive probe (500 MHz, 10:1), 1 per channel
• Localized power cord and front panel overlay
• BV0004B BenchVue Oscilloscope Application PC software
• Educator's Oscilloscope Training Kit
• Soft copy Certificate of Calibration (CoC), 3-year calibration interval

Product Core & Specifications

Important: Maximum input voltage: 125 Vrms / 190 Vpk. This instrument is not rated for measurement categories CAT II, III, or IV, and no transient overvoltage is allowed.

Important: Maximum input voltage on analog channels is 125 Vrms; 190 Vpk. Probing technology allows testing of higher voltages — for example, the included N2843A 10:1 probe supports testing up to 300 Vrms.

Important: An MSO (mixed signal) model ships standard with 16 digital/logic channels and a logic probe; a DSO model can be upgraded to MSO at any time via the DSOXG3MSO software license, with the N2756A 16-channel MSO cable delivered separately.

Recommended pairing: use the N7020A power rail probe — a 2 GHz, 1:1 probe with a plus/minus 24 V offset range — for mV-sensitivity DC power-rail noise, ripple, and transient measurements.

About this Pre-Owned unit

This pre-owned unit is inspected and functionally verified in-house before it ships and is backed by our pre-owned warranty. To confirm its exact condition, firmware revision, installed options, or included accessories for your application before ordering, contact our Test Architects.

• Warranty included
• Functional verification included
• Standard Calibration Upgrade Options: No Calibration Required, NIST Traceable, Z540.1 or ISO 17025 with Data, Z540.3 Guardbanding with Data.
• Note that unnecessary accessories may not be included (contact Test Architect to confirm).

ValueTronics supplies both new and used test and measurement equipment. New units ship factory-sealed, exactly as received from the manufacturer; every used unit is inspected and functionally verified in-house at our 20,000 sq ft secure facility in Elgin, Illinois before it ships. Our Test Architects can help you select the condition, calibration, and configuration that fit your application.

Please review the Manufacturer's Data Sheet to verify published specifications. Feedback on this webpage is always welcome — please reach out to your Test Architect at any time for questions or concerns. Thank you, we truly appreciate you being our customer.
