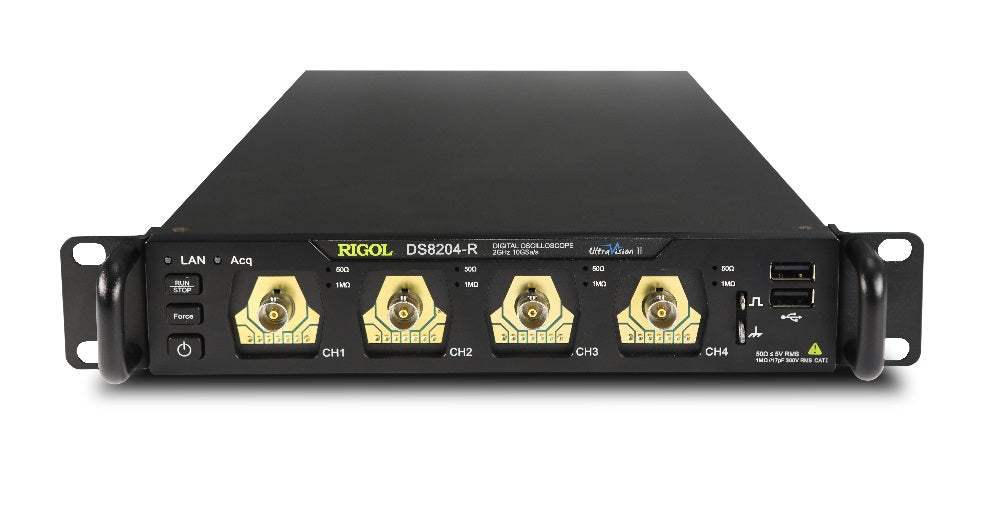

DS8204-R Rigol Digital Oscilloscope New

DS8204-R Rigol Digital Oscilloscope New

Regular price $13,999
Sale price $13,999 Regular price $13,999
In Stock
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Analog channel bandwidth: 2 GHz
  • Up to 10 GSa/s real-time sample rate (for DS8104-R/DS8204-R), 5 GSa/s (for DS8034-R)
  • 4 analog channels, 1 EXT input channel
  • Standard memory depth up to 500 Mpts
  • High waveform capture rate (over 600,000 wfm/s)
  • Low jitter, multiple-device synchronization (<200 psRMS, typical)
  • High-speed data communication interface (10 GE SFP+), ensuring the reliable transmission of massive data
  • Integrates 6 independent instruments into 1, including digital oscilloscope, spectrum analyzer, AWG (option), digital voltmeter,
  • 6-digit counter and totalizer, and protocol analyzer (option)
  • Available to be extended to 512 channels, supporting synchronous acquisition (with the multi-channel synchronization module)
  • Real-time eye diagram and jitter analysis software (option for DS8104-R/DS8204-R, but unavailable for DS8034-R)
  • Built-in advanced power analysis software (option)
  • Operating temperature low below -40°, available to be used for signal monitoring in some special conditions
  • Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), 10 GE SFP+, HDMI, TRIG OUT, 10 MHz In, and 10 MHz Out
  • Web Control remote command
  • Compact and thin design, save rack space, 1U rack mount kit (standard)
  • Software development kit available for users to meet their customized development according to their specific scenarios
  • Easy-to-use on-site multi-channel synchronization calibration kit, enabling you to view multiple channels synchronously
View full details

The DS8000-R series is a medium and high-end digital oscilloscope with a compact size designed on the basis of the ASIC chip (RIGOL self-owns its intellectual property right) and UltraVision II technical platform developed by RIGOL. It is compact and thin in design. It supports system integration of multiple devices, rack mount installation, and remote system operation to meet the system requirements for industrial automation test system.

The Rigol DS8000-R series oscilloscope has an analog bandwidth of up to 2 GHz, supporting multi-device synchronous triggering, available to be extended to 512 channels. It provides an excellent solution for users to meet their middle and high-speed requirement for the system integration test and synchronization requirement for multi-channel data acquisition.

Model No

DS8204-R

Condition

New

Manufacturer

Rigol

Channels

4

Frequency

2 GHz

Record length

500 MPts

Sampling rate

10 GS/s
