DS70504 Rigol Digital Oscilloscope New

DS70504 Rigol Digital Oscilloscope New

$34,999
$34,999 $34,999
In Stock
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

5 GHz Oscilloscope with 20 Gsa/sec sampling and 15.6 inch Display

  • 5 GHz / 4 channels
  • Integrates multiple instruments into one
  • 20 GSamples per sec (10 GSa/sec on all channels)
  • 1 million waveforms per second capture rate
  • 500 Mpts standard memory depth
  • Up to 2 Gpts memory depth (via option)
  • High resolution: 8 bit ADCs with up to 16 bits in high-res mode
  • High precision frequency counter and totalizer
  • Real time spectrum analysis (via option)
  • Supports RS232/UART, I2C, SPI, CAN, LIN and more (via option)
View full details
More Details
Specifications
Datasheets

5 GHz Oscilloscope with 20 Gsa/sec sampling and 15.6-inch Display

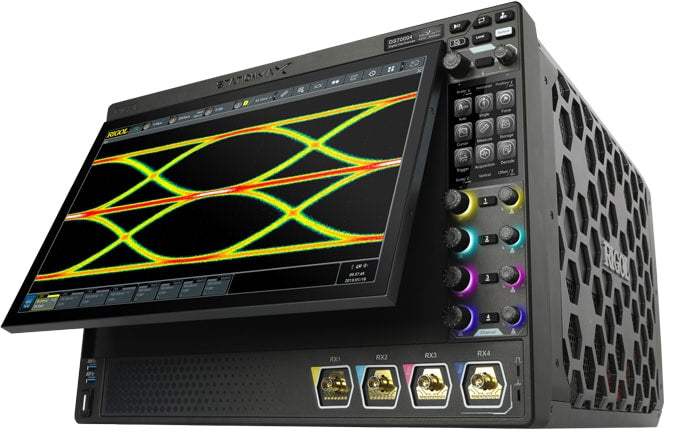

DS70000 series digital oscilloscope utilizes RIGOL's chipset "Phoenix", delivering excellent performance with a maximum sample rate of 20 GSa/s, 5 GHz bandwidth. RIGOL's brand new UltraVison III technical platform guarantees the specifications to reach the advanced level in the industry, with the capture rate of up to millions of waveforms per second, 2 Gpts memory depth, 8-16 bits adjustable resolution, and 10,000 FFTs/s. In addition to the improved hardware specifications, the DS70000 series digital oscilloscope has a main 15.6-inch HD capacitive multi-touch screen equipped with electronically controlled one-button screen inclination for signal visualization, analysis, and results; a secondary 3.5-inch small screen with a customized function and shortcut menu displays; and other user-friendly designs, bringing users an extraordinary human-machine interface experience.

N-in-1 Integrated Digital Oscilloscopes

In today’s design field, a highly integrated comprehensive digital oscilloscope has become an important tool for design engineers. RIGOL’s DS70000 series oscilloscopes integrate 5 independent instruments into 1 including a digital oscilloscope, one spectrum analyzer, one digital voltmeter, one high precision frequency counter and totalizer, and one protocol analyzer. The DS70000 series provides a comprehensive instrument that meets your actual test needs.

Unique UltraVision III Platform Delivers Industry-Leading Performance

With RIGOL’s unique UltraVision III platform built on our custom ASIC technology, the DS70000 series digital oscilloscope delivers industry-leading performance specifications including memory depth, waveform capture rate, and vertical resolution. It supports analysis of serial data on the computer, embedded, automotive, audio and additional bus types. UltraVision III also enables power integrity analysis as well as multi-domain debugging with simultaneous analysis of time domain and frequency domain signals. The DS70000 series fills an important need in high-speed signal integrity and debugging from R&D to industrial applications with capabilities including:

  • 1 million wfms/s update rate capable of capturing rare signal anomalies that you might otherwise miss
  • Up to 2 Gpts memory depth which makes long-duration high speed captures possible
  • 8 to 16-bit adjustable vertical resolution capable of accurately measuring low-level signals
  • Real-time spectrum analysis (RTSA) is capable of capturing up to 1

Model No

DS70504

Condition

New

Manufacturer

Rigol

Channels

4

Frequency

5 GHz

Record length

500 MPts

Sampling rate

20 GS/s
