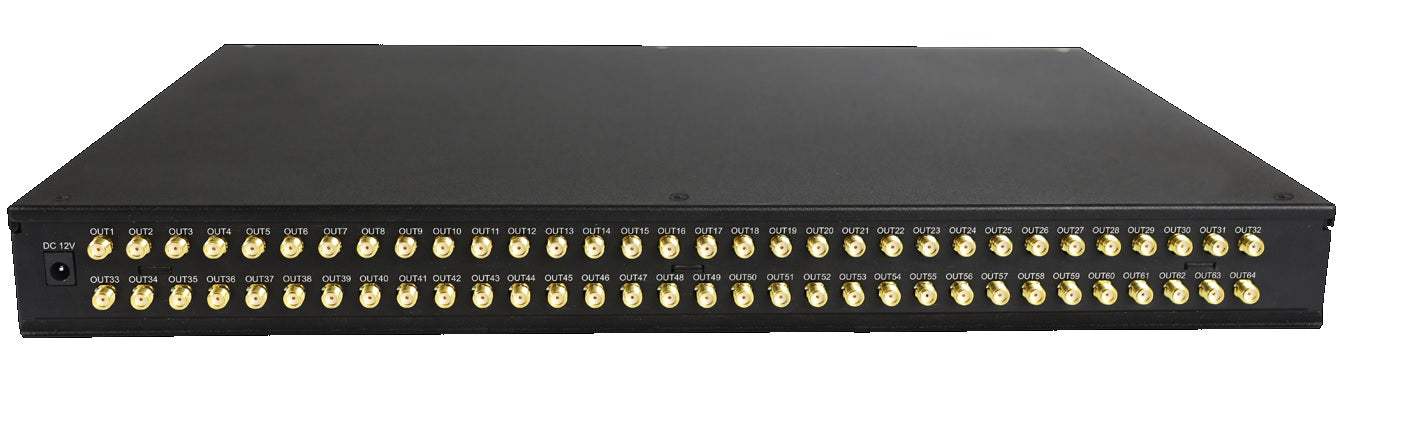

DS-SYNC64 Rigol Logic Probe New

DS-SYNC64 Rigol Logic Probe New

$8,999
$8,999 $8,999
In Stock
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 64 Channel trigger and calibration synchronization module
  • DS SYNC64 has 64 analog channels, and each DS SYNC64 supports up to 64 sets of oscilloscopes in cascaded connection
  • SMA Interface (OUT1~OUT64): Output interface of the sync signal: the signal input from the front-panel SMA interface is shaped and output through 64 channels
  • Power Interface: Provides DC 12 V , 4 A power supply for the synchronization module
  • Standard Accessories: Power cord conforming to the standard of the destination country, Power adapter conforming to the safety standard of the destination country
View full details
More Details
Specifications

Trigger Input

  • Input Voltage: 20 Vpp
  • Minimum Input Voltage: 500 mV
  • Polarity: Positive/Negative
  • Input Impedance: 50 Ω
  • Maximum Input Power: 1 W
  • Minimum Pulse Width 1 ns
  • Connector: SMA

Trigger Output

  • No. of Channels: 64
  • Output Voltage: 1.2 Vpp nom .) to 50 Ω
  • Impedance: 50 Ω
  • Connector: SMA
  • Rise Time: <1 ns

In many scenarios, oscilloscopes with four channels or above are required. However, for most oscilloscopes in the current market, most oscilloscopes can provide at most 4 channels and no synchronous clock interface for the external input is available for most of them.

For those users who demand for multi-channel synchronous data acquisition, DS SYNC64 synchronization module can be used as the trigger source of the oscilloscope to connect the output interface to the EXT trigger input terminal of the oscilloscope to realize synchronous trigger for multiple oscilloscopes. It can be used for channel calibration. Connect the coaxial cable to the input terminal of the analog channel of the oscilloscope to calibrate each analog channel. In this way, multiple oscilloscopes in cascaded connection can achieve synchronous data acquisition to improve the reliability of the measurement results.

Model No

DS-SYNC64

Condition

New

Manufacturer

Rigol
