DML001 B&K Precision DC Electronic Load New

DML001 B&K Precision DC Electronic Load New

$1,250
$1,250 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

🎓 Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

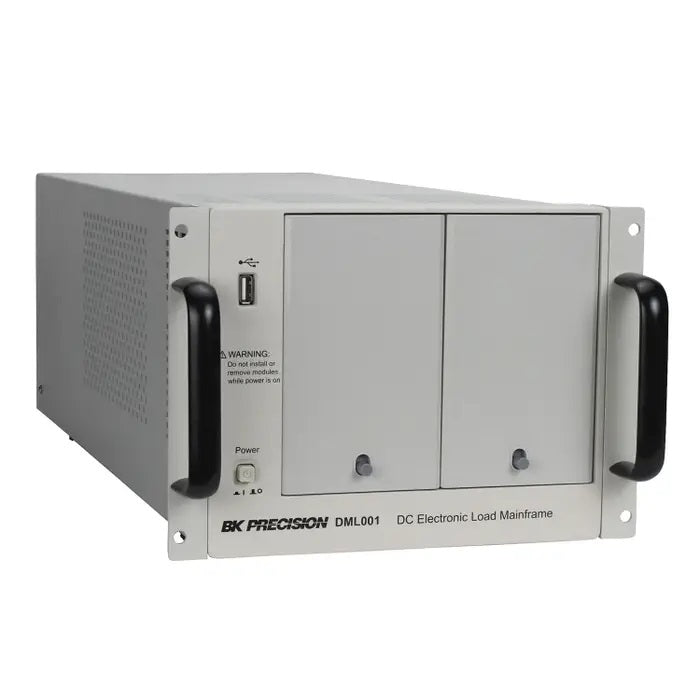

The BK Precision DML001 Programmable DC Electronic Load Mainframe features two slots for housing any combination of single or dual-channel load modules. This system provides the flexibility to test a variety of power sources, including multi-output DC power supplies, batteries, fuel cells, and photovoltaic arrays.

  • Mainframe Only - Modules Sold Separately
  • CC/CV/CR/CW operating modes
  • Fast transient operation and sweep modes for dynamic load conditions
View full details
More Details
Specifications
Datasheets
Manuals

Mainframe Only - Modules Sold Separately

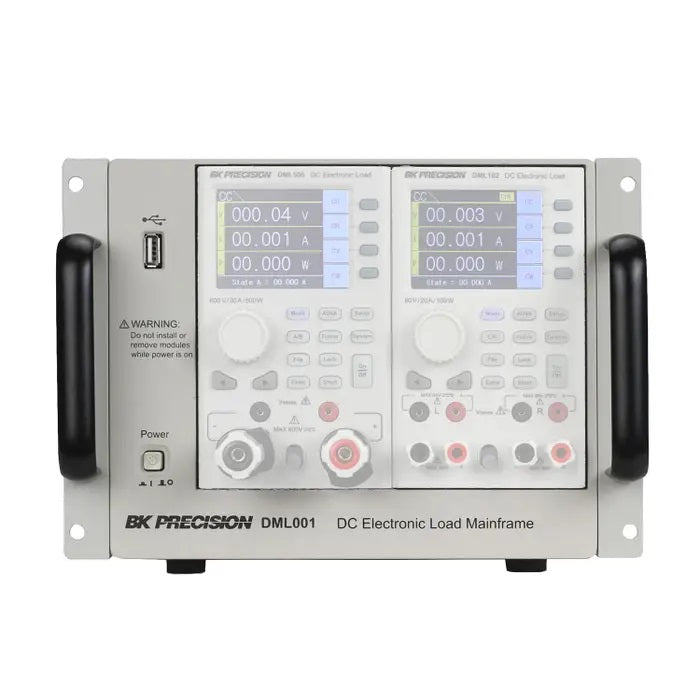

  • Features two slots for housing any combination of single or dual-channel load modules (all modules sold separately)
  • Modular system provides flexibility to test variety of power sources including multi-output DC power supplies, batteries, fuel cells, and photovoltaic arrays
  • Versatile multi-channel modular DC electronic load system in compact bench form factor
  • Adjustable slew rate in CC mode, users can control rate or slope of change in current in transient response test
  • Ability to simulate loading behavior of typical LEDs for testing LED drivers
  • Configure common LED characteristics including operating resistance, forward voltage, and operating current
  • Safely discharge batteries with configurable stop conditions including voltage and time
    Fast transient operation and sweep modes for dynamic load conditions
  • Sweep mode offers simple way to capture overshoot and undershoot of power supply by applying two configurable load levels at swept frequency
  • Maximum power point test determines maximum power provided by power supply and voltage/current corresponding to maximum power
  • Transient operation allows module(s) (sold separately) to periodically switch between two load levels
  • Transient mode simulates varying combinations up to 25 kHz in CC mode
  • Highly configurable list mode (sequence mode) with 100 user-programmable steps
  • List mode programs can be set up to repeat up to 65,535 times or indefinitely
  • Automatic test modes enables execution of multiple test sequences
  • Constant current (CC), constant voltage (CV), constant resistance (CR), and constant power (CW) operating modes
  • 16-bit voltage and current measurement system provides high resolution
  • Remote sense compensates for voltage drops
  • Intuitive front panel interface offers independent analog control and monitoring of each module to quickly adjust key parameters
  • Instrument settings and test configurations can be saved directly to internal memory for quick recall
  • Comprehensive built-in protections and automatic power-on self-test ensure stable and reliable operation
  • Overcurrent (OCP), overvoltage (OVP), overpower (OPP), overtemperature (OTP), undervoltage (UVP), and reverse polarity protections
  • Equipped with LAN, USB (USBTMC-compliant), RS-232, and GPIB interfaces, all support SCPI command protocol for remote communication and control
  • Includes LabVIEW drivers and operating software for generating and executing test sequences and data logging without source code writing
  • Includes rack-mount brackets with handles for easy system integration
  • 3-year warranty protects instrument against manufacturer defects

Specifications

AC Input: 90VAC to 130VAC/175VAC to 253VAC, 47 Hz to 63 Hz

Maximum Power Consumption: 300VA

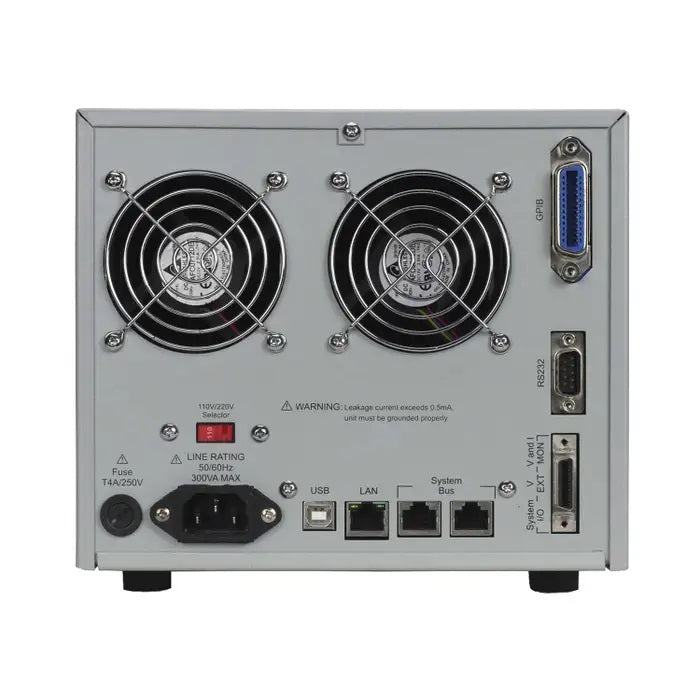

I/O Interfaces: USB (USBTMC-compliant and virtual COM), GPIB, LAN, RS-232

Dimensions (W x H x D): 10.3 in. x 7 in. x 23.3 in. (260 mm x 177 mm x 590 mm)

Form Factor: 4U

Model No

DML001

Condition

New

Manufacturer

BK Precision
