DLM5038 Yokogawa Mixed Signal Oscilloscope Used

DLM5038 Yokogawa Mixed Signal Oscilloscope Used

Check Pricing
Request a Quote

Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Bandwidth: Up to 500 MHz
  • Channels: 4 or 8 analog channels; 16 digital channels
  • Sampling Rate: Maximum of 2.5 GS/s
  • Memory Depth: Up to 500 MPoints
  • Vertical Resolution: 8 bits (standard), up to 12 bits in High Definition mode
  • Connectivity: USB, Ethernet, and optional GPIB
  • Trigger Functions: Edge, Pulse Width, Pattern, Serial Bus, and more
  • Serial Bus Analysis: Supports I2C, SPI, UART, CAN, LIN, FlexRay, and more
  • High Channel Count: Available in 4-channel and 8-channel models, the DLM5000 series can simultaneously analyze multiple signals, making it ideal for comprehensive system diagnostics.
  • Bandwidth and Sampling Rate: Provides up to 500 MHz bandwidth and a maximum sampling rate of 2.5 GS/s, ensuring precise capture of high-speed signals.
  • Extensive Memory: Offers large memory capacity up to 500 MPoints, which allows for long-term recording and detailed waveform analysis.
  • Mixed Signal Capability: Combines analog and digital signal inputs, supporting mixed signal testing with 16 digital channels in addition to analog channels.
  • High Definition Mode: Features enhanced waveform acquisition modes that improve signal fidelity and noise performance.
  • Trigger and Analysis Functions: Advanced trigger functions, serial bus analysis, and power analysis capabilities provide detailed insight into complex signal interactions.
  • User-Friendly Interface: Intuitive touchscreen interface with advanced display options and easy access to frequently used functions.
Share on
View full details
More Details
Specifications
Datasheets

As the creator of the world’s first 8 channel oscilloscope, and with over 100 years of industry experience, the DLM5000 is Yokogawa’s latest addition to our line-up and takes you beyond 8 channels. Adaptability is a key requirement during the development of high-performance and intelligent power-semiconductor technologies and mechatronics applied in a modern electric vehicles, motor controls, and energy efficient electronic designs. Combining a large, highly responsive touchscreen and a traditional oscilloscope panel, the 4-to-8 channel DLM5000 mixed signal oscilloscope allows users to easily navigate through a wealth of analysis features at the touch of their fingertips.

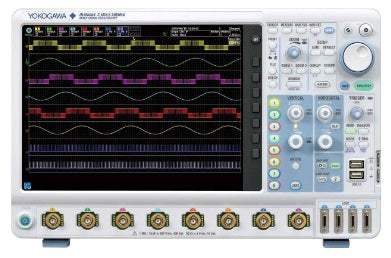

*The image is a representation of selection. See specifications for product details.

Model No

DLM5038

Condition

Used

Manufacturer

Yokogawa

Yokogawa DLM5000HD Series DLM5000 Series Datasheet
