AL-RS101-TX Com-Power Loop Antenna New

AL-RS101-TX Com-Power Loop Antenna New

$1,125
$1,125 $1,125
In Stock
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Transmit/Receive Loop Antenna Set for MIL-STD-461, RS101 Calibration/Test
  • Frequency Range: 30 Hz to 100 kHz
  • Convenient, Fixed Mounting Arrangement for Receive Loop onto Transmit Loop for Accurate Calibration of Test Levels
  • Three-year Standard Warranty
View full details
More Details
Specifications
Datasheets

Applications:

The RS101 Loop Antenna Set is specifically designed for tests according to MIL-STD-461, RS101, radiated susceptibility, magnetic field. During this test, the Equipment Under Test (EUT) is exposed to magnetic fields of a specified magnitude to ensure that it does not exhibit any malfunction, degradation of performance, or deviation from specified indications.

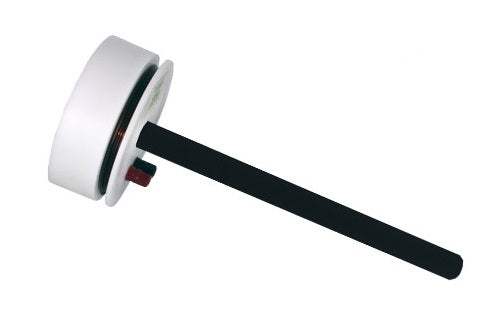

The AL-RS101-TX is a transmitting loop antenna constructed with 20 turns of 12 gauge enamel-insulated copper wire with a mean diameter of 12 cm. The Telon (PTFE) structure onto which the wire is wound is elongated in order to provide the required 5 cm spacing between the loop coils and the Equipment Under Test (EUT) when the antenna is placed lush against the EUT surface as shown to the left.

Model No

AL-RS101-TX

Condition

New

Manufacturer

Com-Power

Frequency

100 kHz

Com-Power_AL-RS101-TX_AL-RS101-RX
