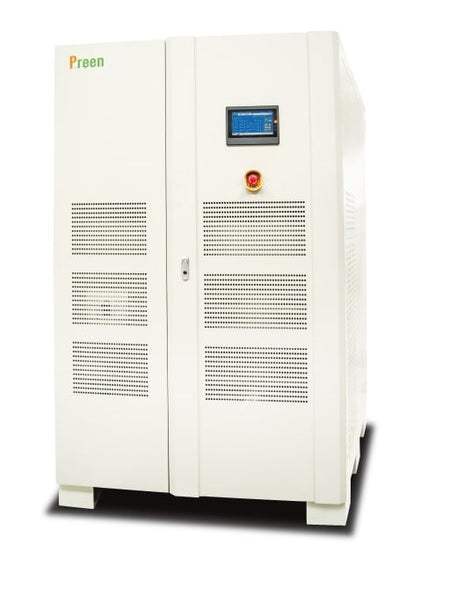

AFV-331000 Preen AC Source New

Name: AFV-331000 Preen AC Source New
Brand: EA Elektro Automatik
SKU: preen_afv-331000_new
Availability: OutOfStock

Product variants

Request a Quote To Get An EDU Discount

FEATURES:

Output Power 1000 kVA
Output Voltage 310 V
Output Current 2777.8 A
Frequency Range 45-500 Hz
Three Phase

View full details

More Details

Specifications

Datasheets

Preen’s AFV series is a programmable AC power source that can be remotely controlled and integrated with other systems for automatic testing. AFV series provides precise output voltage and frequency which could reach various types of industrial requirements. For the industrial users, such as home appliances, electrical and electronic, medical equipment and lighting, they are able to quickly and accurately simulate standard or abnormal power status via programmable function.

Specifications:

CE mark with high electromagnetic compatibility performance
Programming Sequence Function: STEP and GRADUAL modes allow users to easily set sequences of start/end voltage, frequency and run time for testing purposes
Optional soft start function to reduce inrush current from motor type UUT
Touch screen display for easy operation
Optional three phase independent control to set voltage of each phase
Comprehensive protection includes over voltage, over current, over load, input under voltage and over temperature with over 20 corresponding error codes and event log for easier trouble shooting
Standard RS485 interfaces and optional RS232/GPIB interface available
Patented power module design with compact size for easier maintenance and high power density
*Output Frequency Options:
AFV-001: Output Frequency 45-500Hz Default Model
Frequency 45-65Hz Option no longer available as it is covered by included AFV-001
*Some functions are limited to the AFV series

Model No

AFV-331000

Condition

New

Manufacturer

331000

Preen AFV Series
