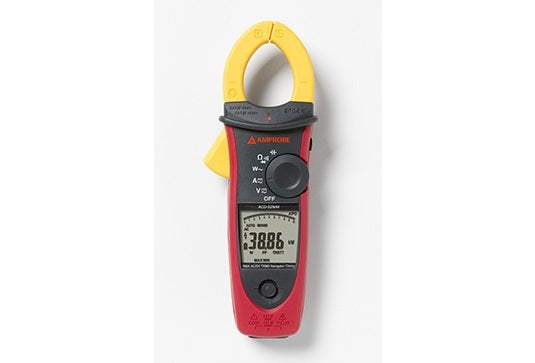

ACDC-52NAV Amprobe Clamp Meter New

ACDC-52NAV Amprobe Clamp Meter New

$503.99
$503.99 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features

  • True-rms technology improves accuracy in noisy environments
  • Measures AC/DC voltage to 1000 V, AC/DC current to 600 A, plus resistance, frequency, capacitance, power and power factor, total harmonics distortion (THD) and individual harmonics from 1 to 25
  • Includes inrush current measurement and phase rotation indication for 3-phase motors
  • Non-contact voltage detection enhances safety
  • Low pass filter enables measuring voltage and frequency on variable frequency drives
  • Continuity beeper quickly identifies shorts and opens
  • Large backlit digital display with analog bar graph presents the full picture
  • Min, max and smart data hold
  • Peak hold identifies spikes and transients
  • In-jaw flashlight automatically lights when jaws open to illuminate dark panels and junction boxes
  • Auto power off conserves battery life
  • Maximum jaw opening accommodates large conductors up to 1.45″ (37 mm)
  • Rubber overmold body absorbs shocks—drop proof to 4 feet (1.2 m)
  • CAT IV-rated AC/DC current clamp meter
View full details
More Details
Specifications
Datasheets

Accessories (Included)

  • ACDC-52NAV
  • Test leads
  • Batteries (installed)
  • Carrying case

Specifications

  • AC Current: 100.00 A, 600.0 A
  • AC Voltage: 100.00 V, 1000 Voltage
  • DC Voltage: 100.00 V, 1000 V
  • Resistance: 1.0000 KO, 10.00 KO, 100.00 KO
  • Frequency: 20.0 Hz to 10 KHz
  • Capacitance: 400.0 µF, 4.000 mF
  • THD (total harmonics distortion): 0.1% → 100.0%
  • Individual harmonics: 1 → 25
  • Power: 10 kW → 600 kW
  • Power factor: -1.00 → 1.00
  • Accommodates conductors: Up to 1.45″ (37 mm) in diameter

The ACDC-52NAV clamp-on power meter is the ideal choice for jobs that require AC/DC current measurements to 600 A, AC/DC voltage to 1000 V and wide jaws to accommodate large conductors.

Model No

ACDC-52NAV

Condition

New

Manufacturer

Amprobe

Amps

600 A

Volts

1 kV
