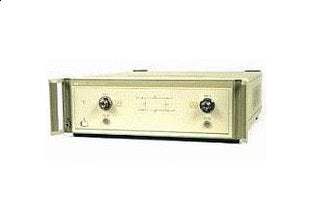

8517A Agilent Test Set Used

8517A Agilent Test Set Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Frequency Range: 45 MHz to 50 GHz
  • Test ports (port 1 or 2) Nominal operating power level (dBm): -10 to -20
  • Test Port Connector Type: 2.4mm (M)
  • Impedance: 50 OHM NOMINAL
  • DC bias: 500 mA, 40 Vdc maximum
  • Attenuation range (incident signal): 0 to 90 dB, in 10 dB steps
Share on
View full details
More Details
Specifications
Options
Manuals

The Agilent 8517A is an S-parameter test set that is for the 8510C Network Analyzer for broadband coaxial measurements from 45 MHz to 50 GHz. The Agilent 8517A has a dual port architecture which develops a separate reference channel for each incident port. RF switching is done with a single built-in electronic switch. For active device measurements, the test sets include the ability to apply DC bias (external) to the test port center conductors.

Also available are two 60 dB step attenuators which allow control of the port 1 and port 2 signal levels.

Model No

8517A

Condition

Used

Manufacturer

Agilent

1

Add IF Switching

2

Delete step attenuators and bias tees

Agilent 8517A Operating & Service Manual
