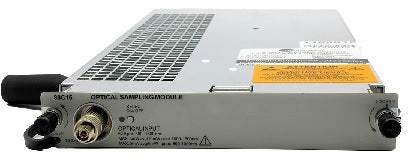

80C15 Tektronix Module Used

80C15 Tektronix Module Used

Check Pricing
Request a Quote

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Bandwidth – 32 GHz
  • Optical filters to support all common standard rates from 125 Mb/s to 44.5 Gb/s
  • Optical mask test solutions with sensitivities to -22 dBm
  • Single and multi-mode, short and long wavelength optical signal support
  • Bandwidth filters which support the following rates: 25.781 Gb/s (100GBASE-ER4, -LR4, -SR4, Infiniband EDR); 27.952 Gb/s (OTU-4), and 28.05 Gb/s (32G Fiber Channel)
  • 80C15 (Option CRTP) provides a second, high-sensitivity optical input to drive Clock Recovery Trigger Pickoff (CRTP) electrical differential outputs for clock recovery functions or error detection
  • Also compatible with DSA8200, TDS/CSA8200, TDS/CSA8000B, and TDS/CSA8000 sampling oscilloscopes
Share on
View full details
More Details
Specifications
Datasheets

The Tektronix 80C15 provides 32 GHz full bandwidth and fully integrated reference receiver filtering to enable conformance testing of both single and multi-mode conformance testing at 850, 1310 and 1550 nm. The Tektronix 80C15 optical sampling modules, when installed in DSA8300 Digital Serial Analyzer sampling oscilloscopes, provide complete optical test solutions for telecom (125 Mb/s to 44.50 GB/s) and datacom (gigabit Ethernet, 10 GbE, 40 GbE, 100 GbE, Fibre Channel to 16 GFC, and InfiniBand) applications, as well as general-purpose optical component testing.

Model No

80C15

Condition

Used

Manufacturer

Tektronix
